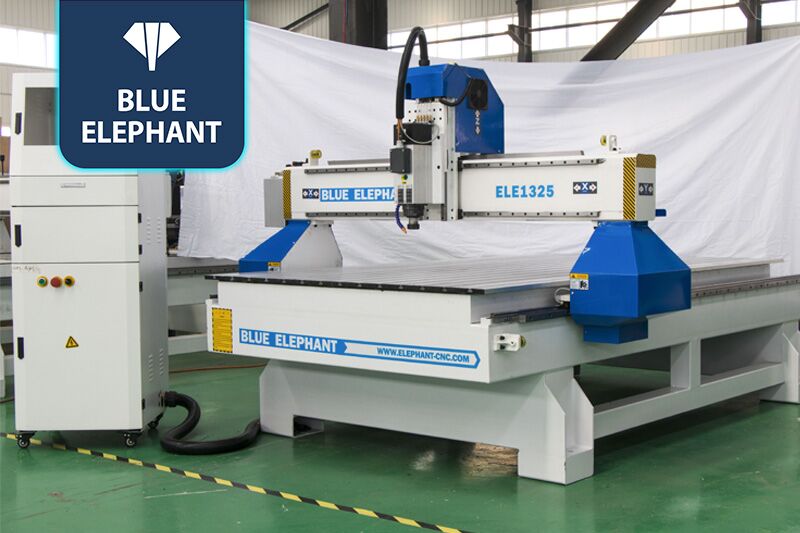

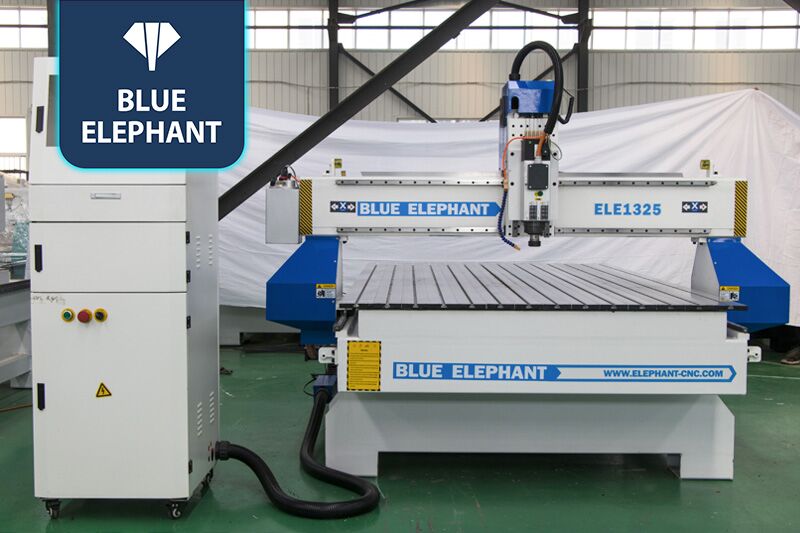

Cheap 4×8 Wood CNC Router Table for Sale

☆Buy CNC Wood Router Table for sale is suitable for cabinet making, doors making, wooden furniture, etc.

CNC Router Machines Video

features

  • With 4×8 aluminum T-slot working table, it is good at 2D/3D wood cutting and engraving.
  • Adopts the Italy spindle,which can ensure the machine has a long service life to the greatest extent.
  • The worktable size can be costomized according to customers’ needs.

Parameters

Model ELECNC1325
X,Y axis travel 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type 7kw air cooling spindle, ISO30, ER32
Inverter type 7.5kw
Collet ER32 collet: φ4, φ6, 1/8, 1/2
Control system Nc studio PM95A controller, option: DSP
Driving system FL 118 stepper motor and Leadshine DM1182 biggest driver, 4 sets. option: YASKAWA AC servo driver
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2, Y3)
Linear guide TaiwanLinear guide with dust proof
Transmission X,Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis:Taiwan TBI high precision ball screw
Lubrication system Manual lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE,cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language G Code
Traveling speed 30m/min
Working speed 0-15m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

The 3 axis ATC CNC router is an entry-level 3 axis CNC router with the automatic tool change function. The spindle can move along the X, Y and Z axis.So it is suitable for plate material processing, such as wooden boards, acrylic sheets, melamine boards, etc. Its principal functions include cutting, engraving, grooving, milling, drilling, pocketing, routing and boring. The 3 axis ATC CNC router is widely used in production of panel furniture, molds, advertising signs, crafts and musical instruments, and decoration, jewelry, electronics and other industries.
