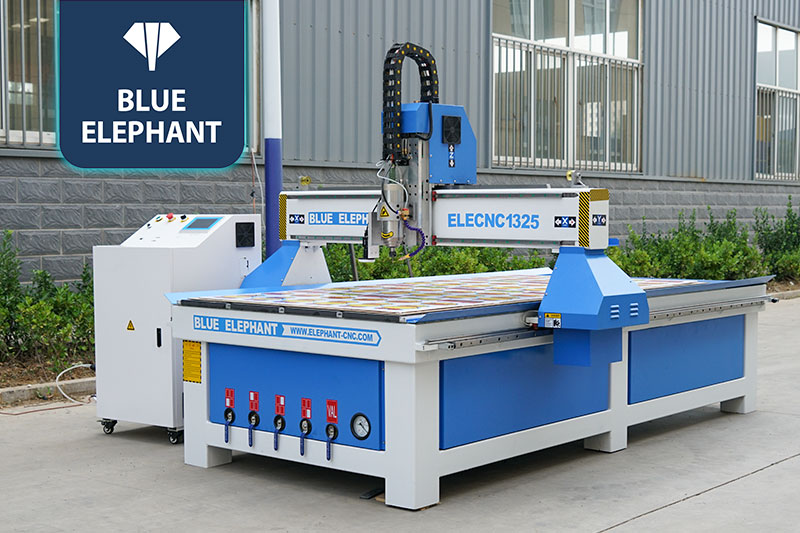

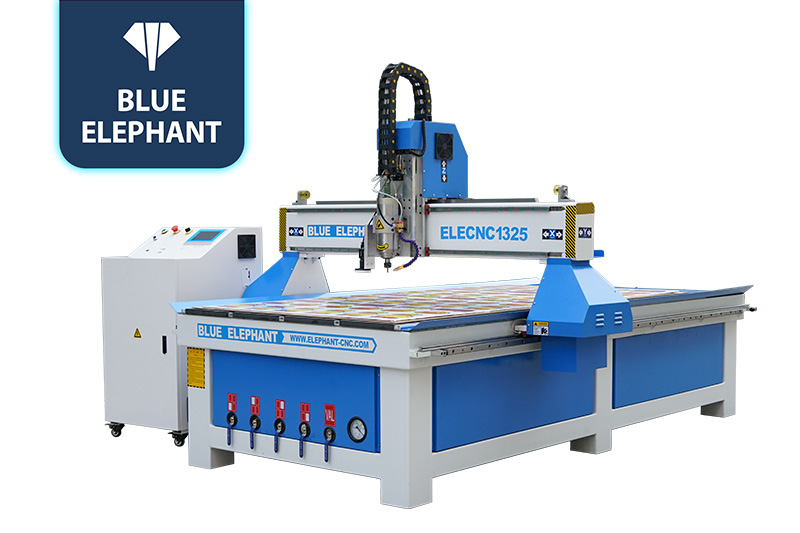

Wood CNC Router with CCD Camera for Sale

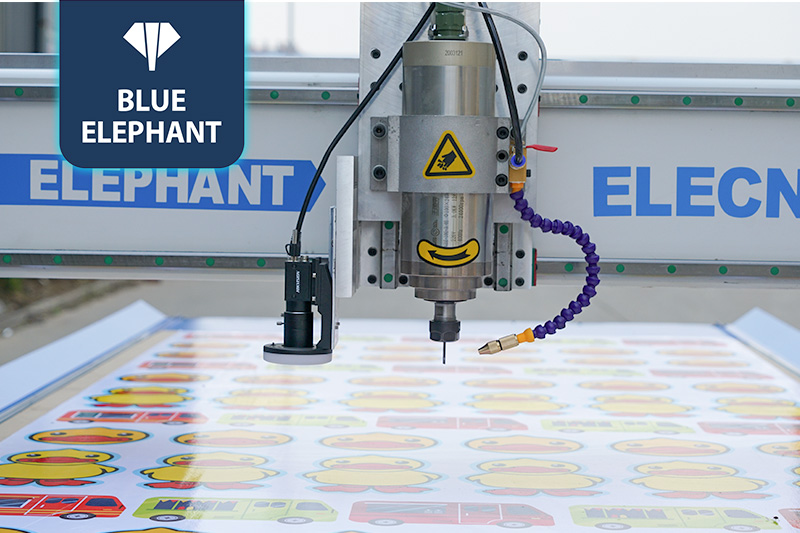

☆This CNC router is designed with a CCD camera. So it can realize the automatic edge inspection and cutting of various non metals.
CNC Router Machines Video
features
- Equipped with CCD visual recognition system, it can realize automatic edge search, positioning, and cutting.
- Adopting Mach 3 and Ruida system, it is easy to operate.
- All accessories can be selected and customized according to your requirements.
Parameters
| Model | ELECNC1325 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3.0kw water cooling spindle, 24000rpm, ER20 |
| Inverter type | 3.7kw |
| CCD camera | CCD camera with the RD control system |
| Control system | Mach 3, option: DSP A11 |
| Driving system | Step motor 450B with Leadshine 860H driver, option: leadshine mix servo motor/YASKAWA servo motor |
| Reducer | Optional |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional |

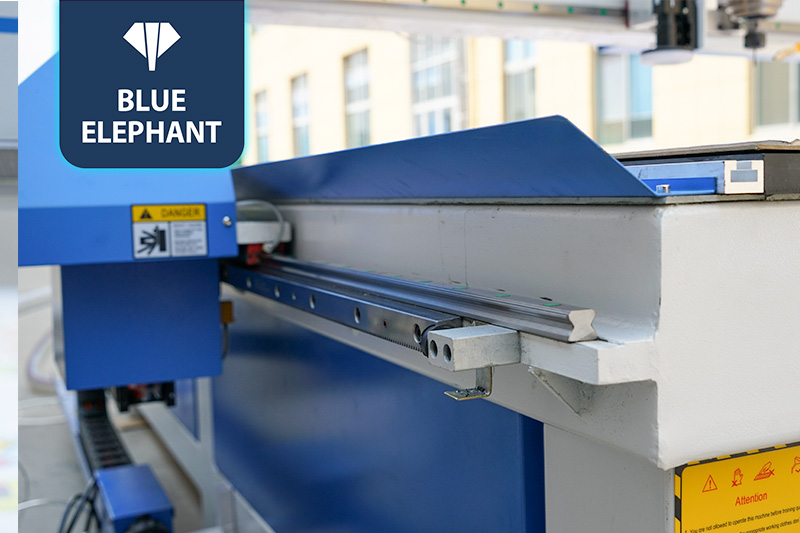

| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | manual lubrication system |
| Tool calibration | NO |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3,Ucancam, Aspire, etc. |
| Command Language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
