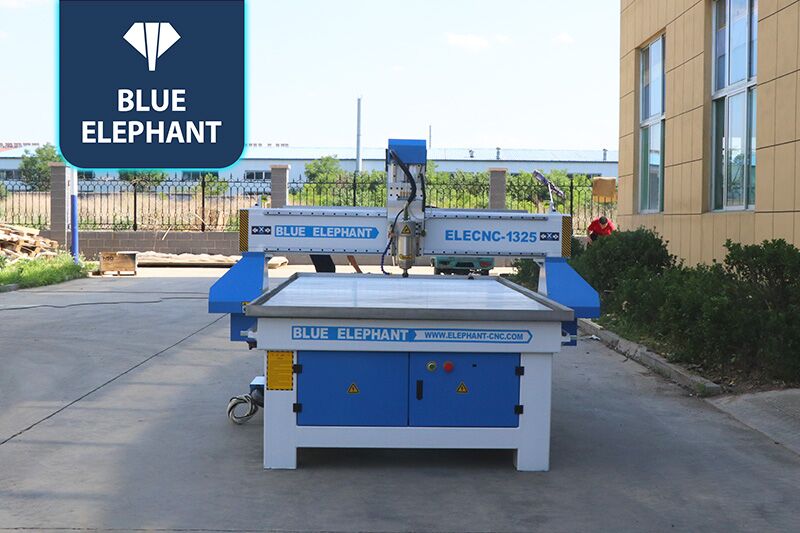

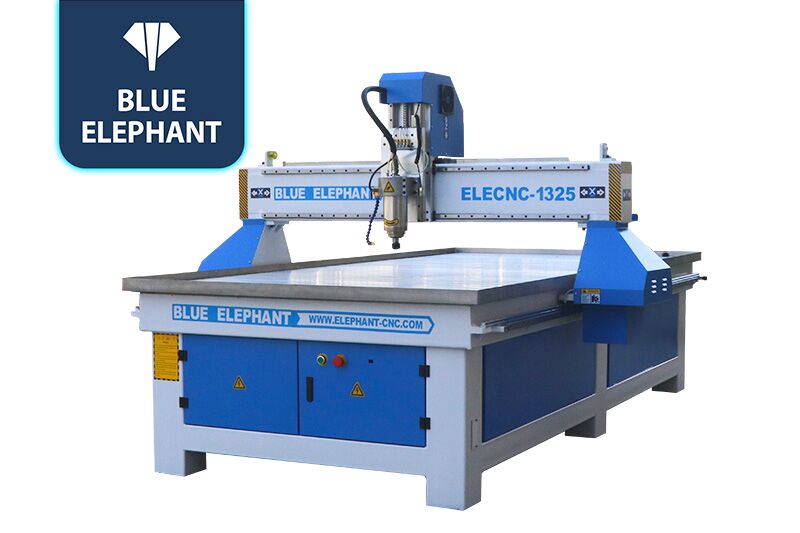

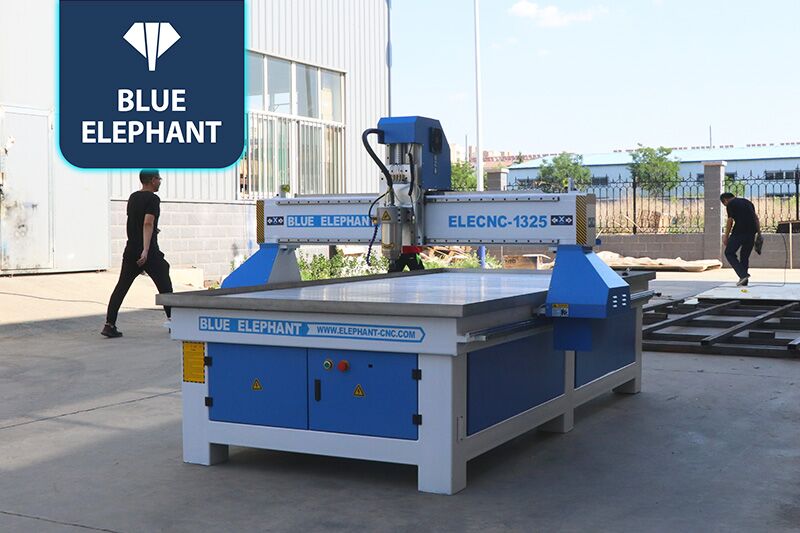

Furniture CNC Wood Machine for Sale
☆This 3 axis CNC router is mainly used for processing most non-metal materials such as wood, acrylic, MDF, rubber, glass, plywood, etc.
CNC Router Machines Video
Features
- Water cooling spray can better cool the spindle to prolong its service life.
- The aluminum & T-slot working table with water sink is also suitable for cutting and carving stones.
- Heavy duty welded steel fram can ensure higher stability.
Parameters
| Model | ELECNC1325 3 Axis |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm, option:300mm |
| Spindle type | 3kw water cooling spindle, ER20 |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 control system |
| Driving system | Stepper 450B and Leadshine 860H drivers |
| Machine structure | Heavy duty welded steel frame |
| Work table | Aluminum T-slot working table with water sink |
| Cooling system | Water cooling spray |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool Calibration | Manual tool sensor |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible Software | Artcam, Aspire,etc |
| Command Language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.05mm |
| Working Accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
CNC Routers for wood working have wide applications in not only the wood working field but also the following industries: advertising, crafts, artworks, molding, electronics, construction, printing and packaging, decoration, tombstone, crystal products, etc. The most common purpose of the CNC wood cutting machine is to make panel furniture. For example, cabinets, cabinet doors, doors, office desks, etc.
