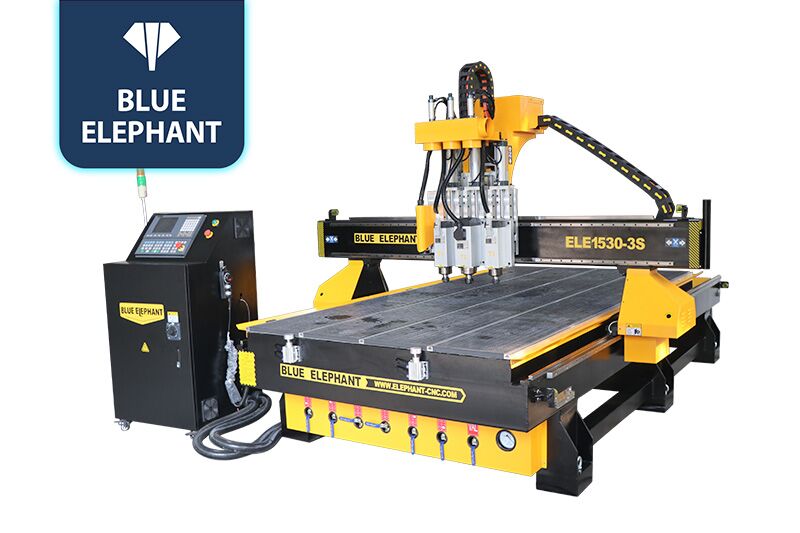

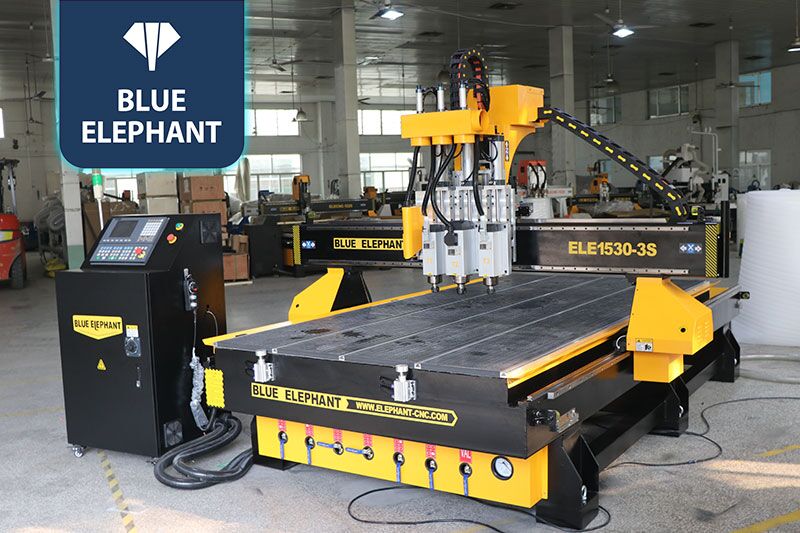

Three Spindles CCD Cutting Machine at Cost

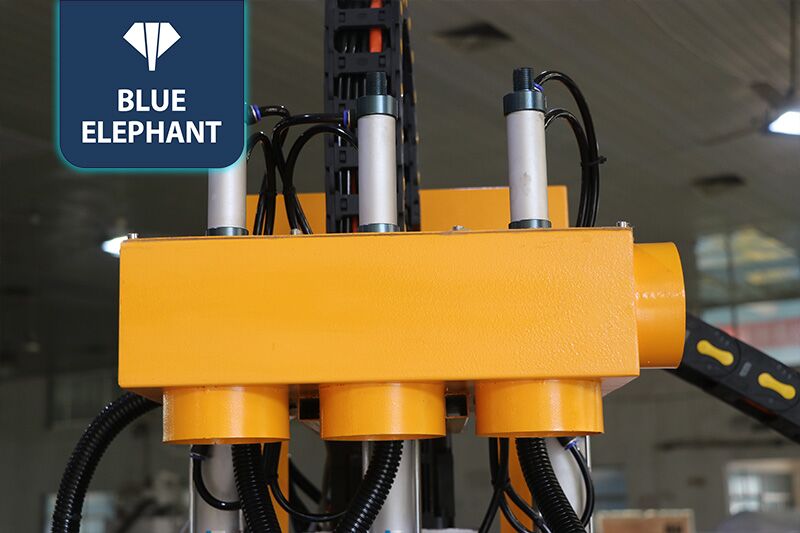

☆Equipped wit three air cooling spindles, it can meet your processing requirements at one time. Therefore, it greatly improvs work efficiency. In addition, the CCD camera can realize automatic patrolling and cutting.

CNC Router Machines Video

features

  • Using the new generation CCD, it can scan the marking points quickly and efficiently.
  • Manufactured with the large square tube bed, it is more stable.
  • With the positioning cylinder, it is convenient to place.

Parameters

Model ELECNC1530-3S
Machine structure 10-12mm steel plant heavy duty body
Work table Vacuum& T-slot work table
Positioning cylinder Optional: 5 pieces (X2,Y3)
Linear guide 20# Taiwan linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam
Command language G Code & M Code
Traveling speed 30m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.07mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
