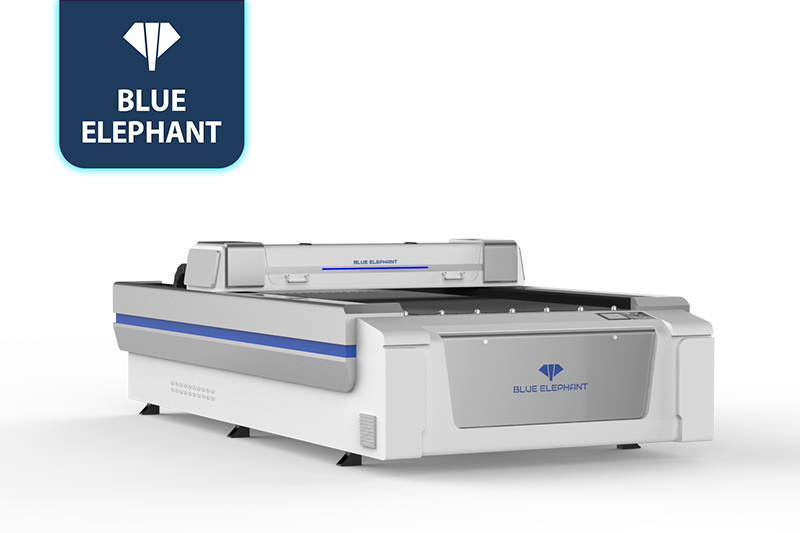

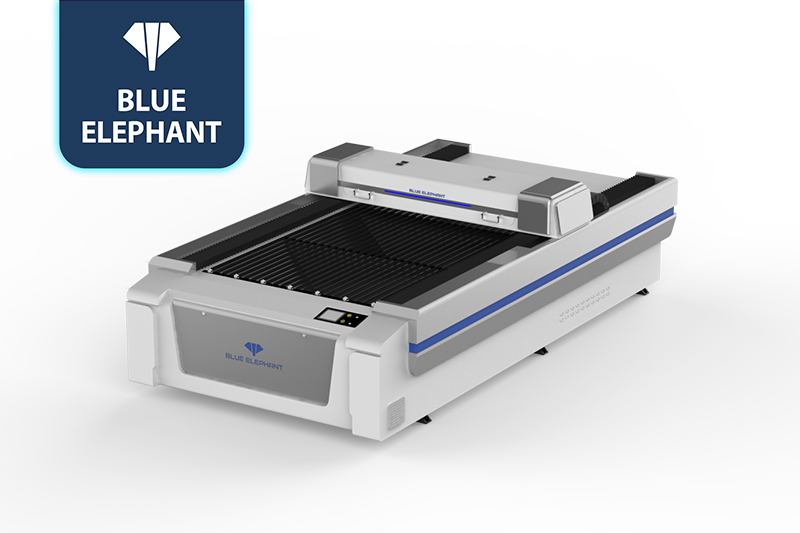

Open-type 1325 CO2 Mixed Laser Cutter at Cost in New York, USA
☆This 1325 co2 laser cutting machine is specially designed for the cutting and engraving of metal and non-metal materials. So it can widely process wood, plywood, MDF , plastic, acrylic, color board, ABS, rubber, etc. Moreover, with the easy operation and fitful size, it is very suitable for beginners.
Laser Tube Cutting Machines Video
Features
- With the stepper motor and HIWIN linear guide, it has stable output power and precise cutting line during the cutting process.
- Use upgraded control system and professional operating software, it can support various kinds of files like PLT, DXF, BMP, AI, DSF, etc.
- Equipped with advanced laser accessories and industrial cooling system, as well as the thoughtful dust-proof design of X and Y axis, it has good stability and high safety.
Parameters
| Description | Parameter |
| Model | ELECNC-1325 |
| X,Y,Z Working Area | 1300*2500mm |
| Laser Power | 80W/100W/150W (Option) |
| Laser type | Sealed CO2 laser tube |
| Cutting speed | 0-30,000mm/min |

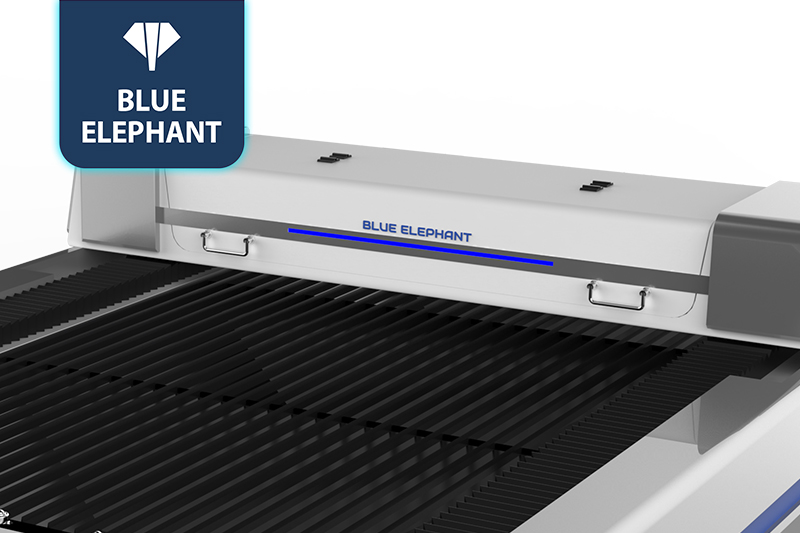

| Working platform | Blade platform |
| Position accuracy | ±0.05mm |
| Graphic support | BMP, PLT, DST, AI, DXF etc. |
| Cooling mode | Water cooling and protect system |
| Working temperature | 0~45℃ |
| Working humidity | 5%~95% |
| Drive motor | Stepper |
| Exhausting method | Exhaust by beam, funnel |
Application
CO2 laser cutting machine can be used in various industries such as cloth, leather, toys, computer embroidery cutting, molds, handicrafts, bamboo and wood, advertising and architectural decoration, packaging and printing, paper products and so on.
The materials that CO2 laser cutting machine can process are: acrylic, color board, ABS board, rubber, plastic, cloth toys, leather, wool, crystal, glass, ceramic tile, jade, bamboo, wood, etc.
