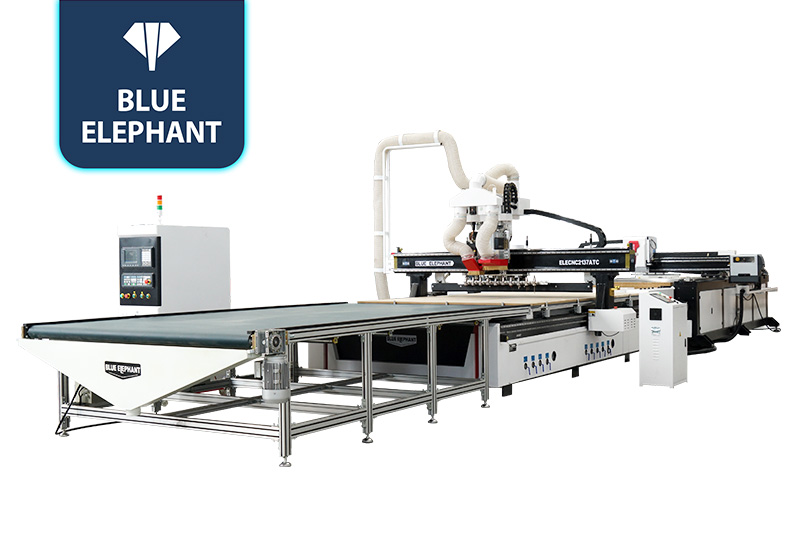

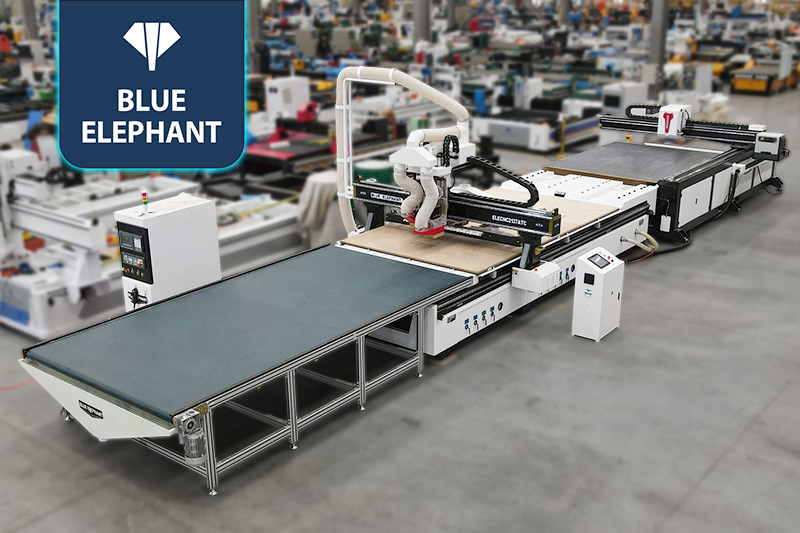

Multifunctional ATC CNC Nesting Machine with Drill Bank for Sale
☆ With auto labeling, loading, and unloading platforms, this wood nesting machine is the best choice for medium and large-sized wooden furniture factories to achieve automatic production.
Nesting CNC Machines Video
Features
- It helps medium- and large-sized wood furniture manufacturers realize high-level automatic production by the automatic labeling, loading, and unloading functions.

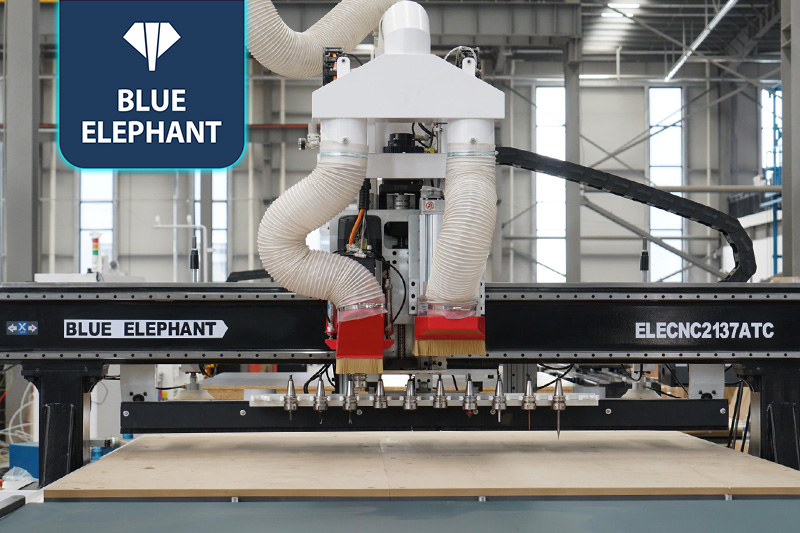

- The HSD drill bank can carry different drill bits to meet various vertical drilling demands.
- The working size of 2100x3700mm can process large panels to realize custom and personalized cabinet plans and projects.
Parameters
| Items | Parameter |
| Model | ELECNC-2137 |
| Working area | 2100*3700mm |
| Whole machine size | 2100*3700*200mm(optional) |
| Spindle | 9.0kw Italy HSD air cooling ATC spindle |
| Spindle speed | 0-24000RPM |
| Motor and drive | Japan 850W YASKAWA servo motor and 1000W drive for XYZ |
| Tool change | Linear-tool-change-magazine under the gantry |
| Guide | Taiwan PMI/ABBA square linear guide |
| Lubrication system | Auto Lubrication |
| Tool sensor | Auto tool sensor |
| Control system | SYNTEC 60WE control system |
| Inverter | 11kw DELTA Inverter |
| Reducer | Japan Shimpo reducer 3 sets |
| Working table | Vacuum working table |
| Others | Automatic loading and unloading,

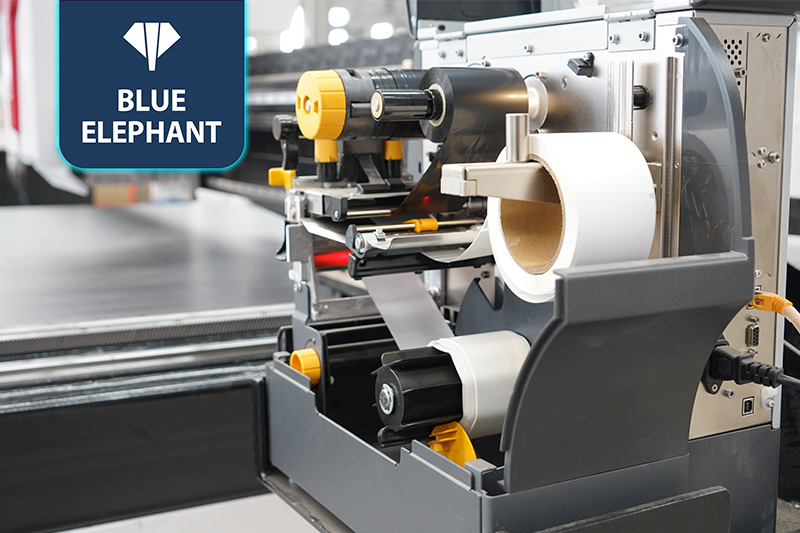

Auto labeling system |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
