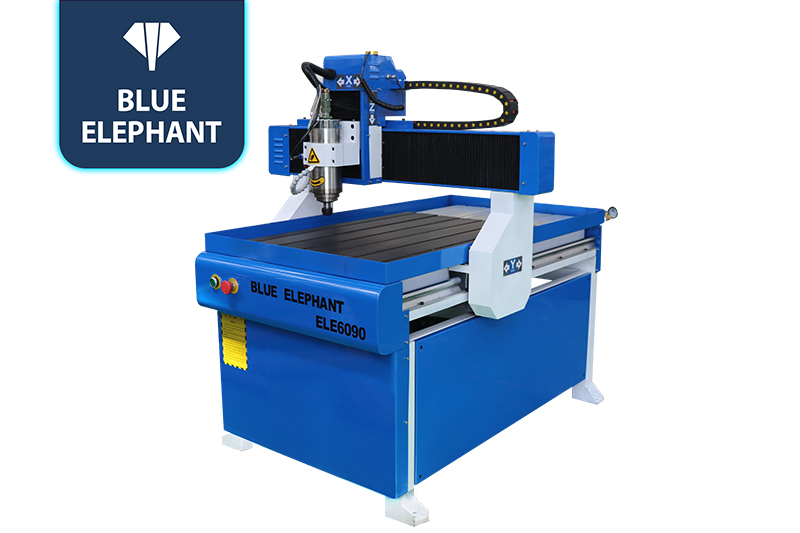

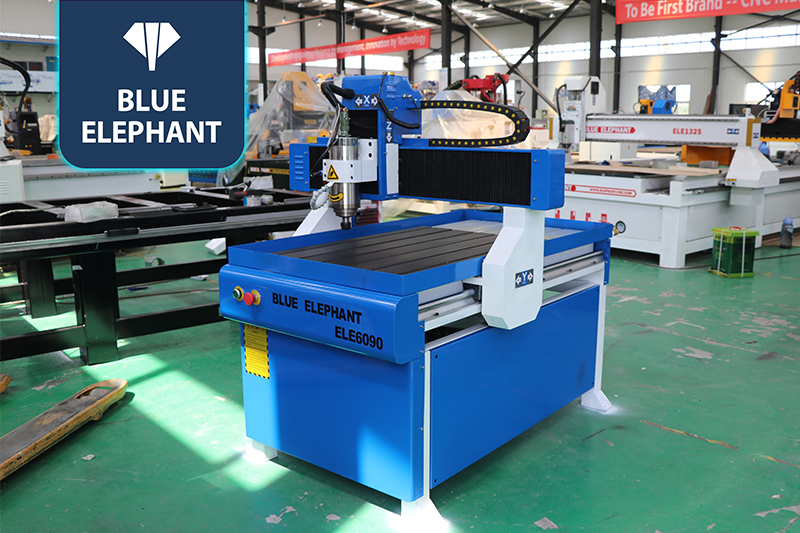

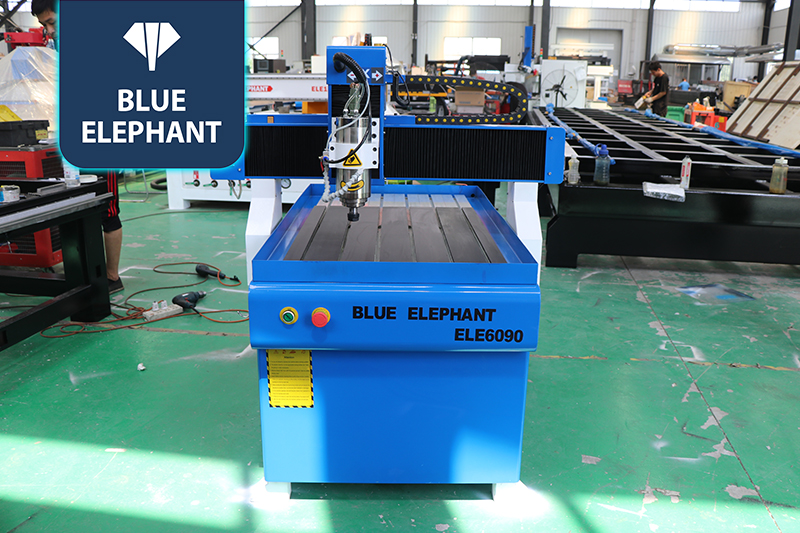

2×3 Small Wood CNC Engraving Machine for Sale
☆It is one of the small desktop woodworking CNC machines with the working area of 24×36 inches. And it has the advantages of small footprint, easy operation, and best price.
CNC Router Machines Video
features
- Using the T-slot work table with PVC protection, it not only has strong frame but also has good fixed effects.

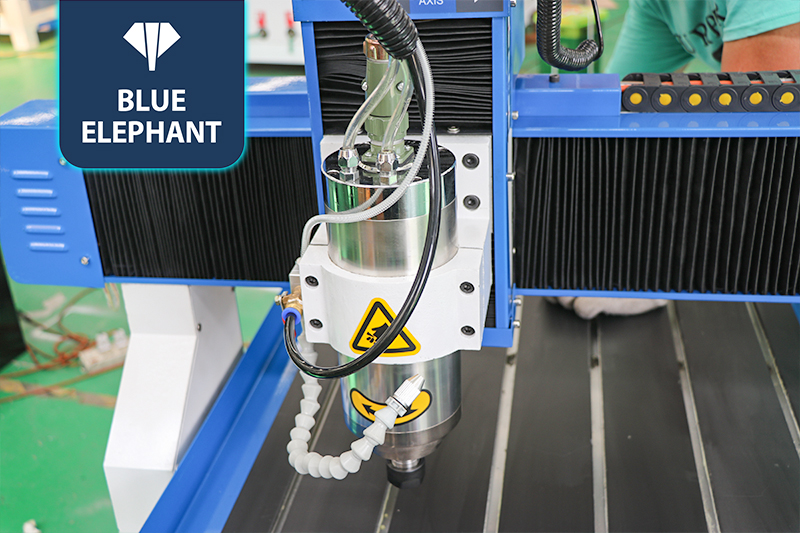

- With 2.2kw water cooling spindle, it can realize wood, acrylic, and other materials cutting and engraving fast and accurately.
- All the machine configurations can be customized according to your requirements.
Parameters
| Model | ELECNC6090 |
| X,Y axis travel | 600x900mm, option: 1200*1200mm; 600*1500mm |
| Z axis travel | 160mm, option: 200mm |
| Spindle type | 2.2kw water cooling spindle, ER20 |
| Inverter type | 2.2kw |
| Tool magazine | No tool magazine Option: Linear type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3, option：DSP A11 |
| Driving system | Stepper motor 450A and Leadshine M542 |
| Machine structure | Special desktop type design |
| Work table | T-slot work table with PVC protection |
| Water misting spray | include |
| Water tank | SS water tank |
| Linear guide | #20 Taiwan Linear guide |
| Transmission | X, Y, Z axis: Taiwan TBI high precision ball screw |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.003mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ |
Application
Wood: redwood classical and antique furniture, wood carving, gifts wooden box engraving, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving and some others;
Letter cutting,sign engraving: Makes all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and others.
