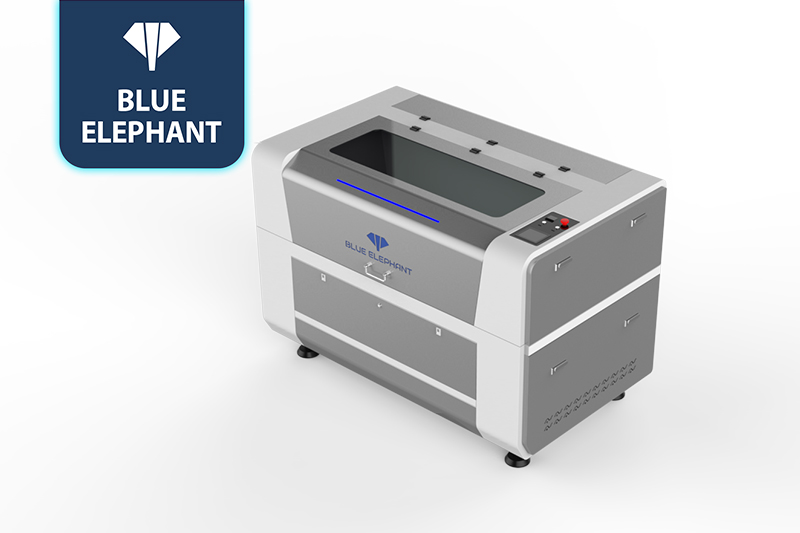

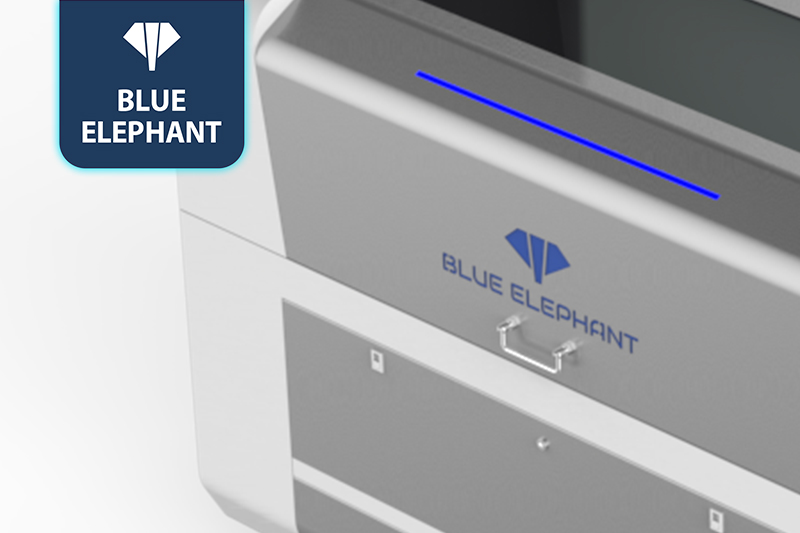

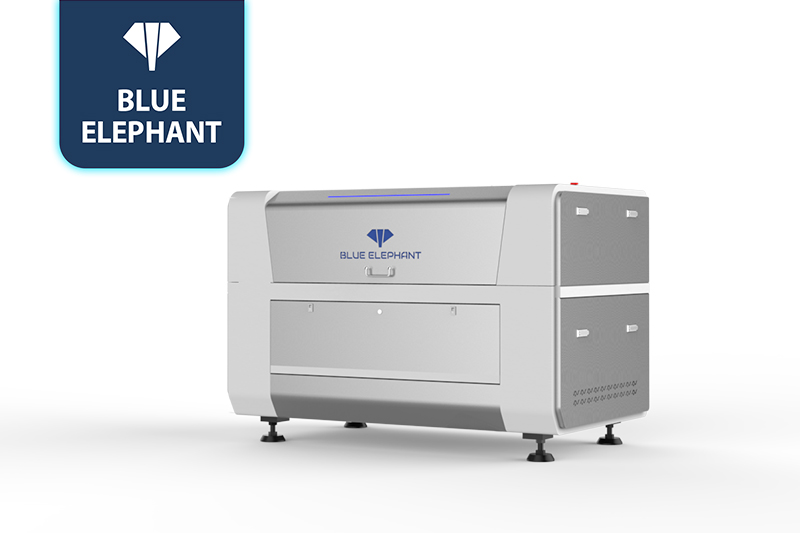

100W Mini CO2 Laser Cutting Machine for Price in Australia

☆This small co2 laser cutting machine has a very ecnomical price and small footprint. It is the best mini laser machine for small-format and non-metal processing. Besides, this CNC CO2 laser cutter has a long-life laser tube with the blade table,which is easy to operate and can greatly improve the cutting efficiency.

Laser Tube Cutting Machines Video

Features

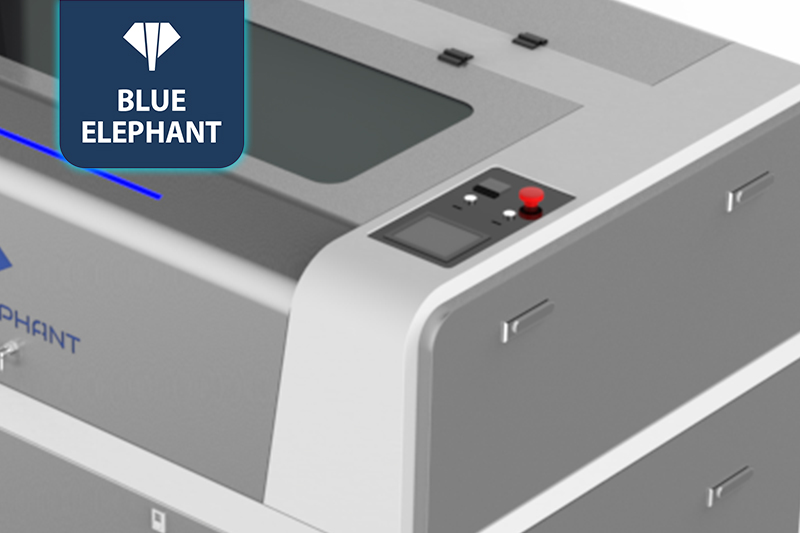

  • Intelligent control system will simplify the operation, automatically optimize the graphics lines, and support the import of graphics in multiple formats.
  • International well-known accessories like automatic red dot positioning and HIWIN linear guide can  ensure the fast speed and good effects.
  • It can cut and engrave almost all non-metal materials to meet the different processing needs. Such as wood, rubber, acrylic, leather, textile, paper, etc.

Parameters

 Name: 1390 CNC CO2 Laser Cutting Machine
Working area 1300mm*900mm,4*3 feet
Laser power RECI 130-150W
Laser type Sealed Co2 laser source
Cooling CW5200 Water cooling
Cutting speed 0-30,000mm/min
Cutting thickness 0-25mm acrylic (others determined by materials)
Position system Red dot
Support Graphic Format DST, PLT, BMP, DXF
Motor&Drive Stepper
Working voltage 220V, 50Hz
Working table Up and down working table
Packing Wooden box
Other Air Pump, Exhaust Fan, Water Pipe, Toolbox, Focus Mirror, Reflector

Application

This co2 laser engraving cutting machine can mainly  process non-metal materials, such as wood products, paper, leather, cloth,  acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo products.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
