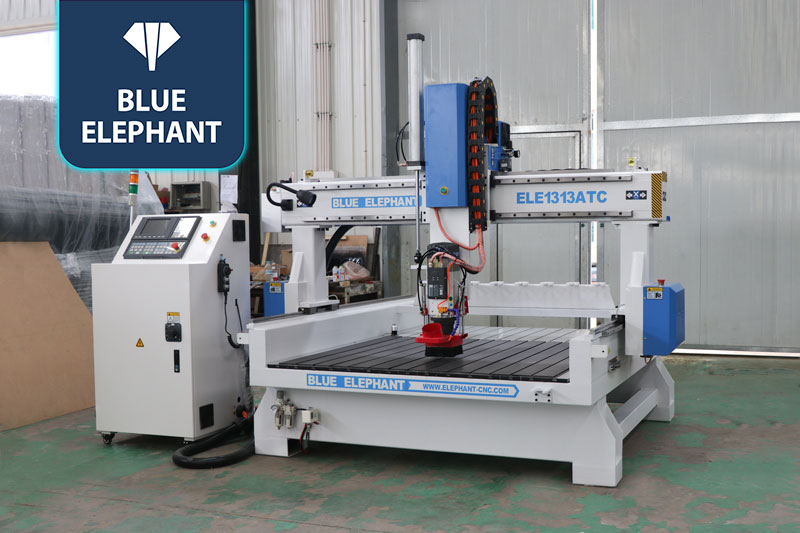

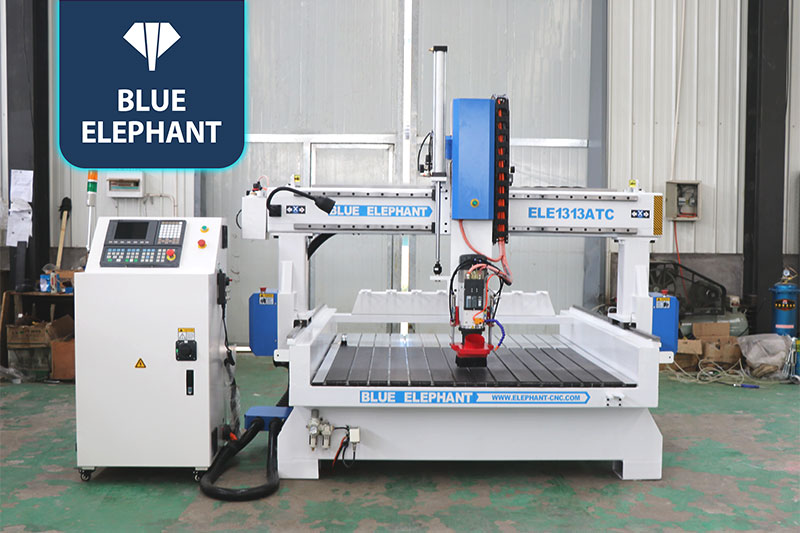

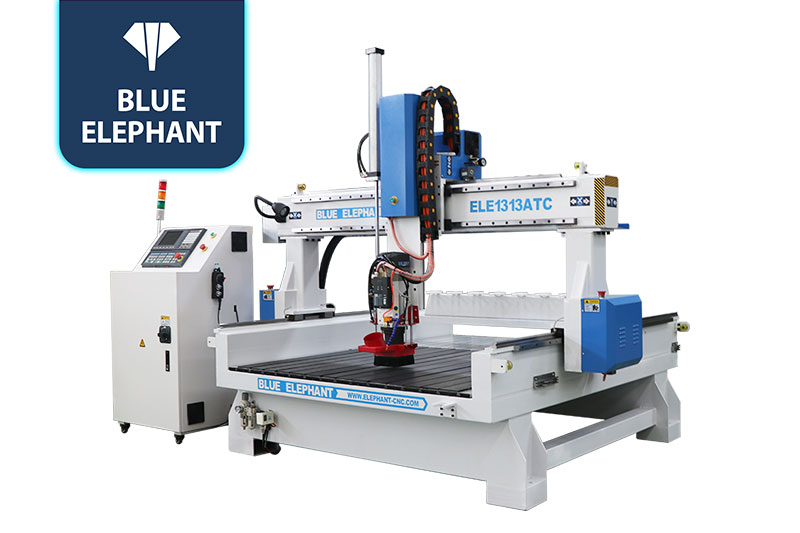

Automatic Tool Changer CNC Machine With Custom Z Travel For Sale

☆This customized ATC CNC machine meets the specific machining needs of the customer with an effective working area of 1300x1300x500mm. The high stroke of the Z-axis allows for the machining of tall and thick materials.

ATC CNC Router Machines Video

Features

  • This router has custom Z axis travel of 500mm, which is suitable for carving tall workpieces.

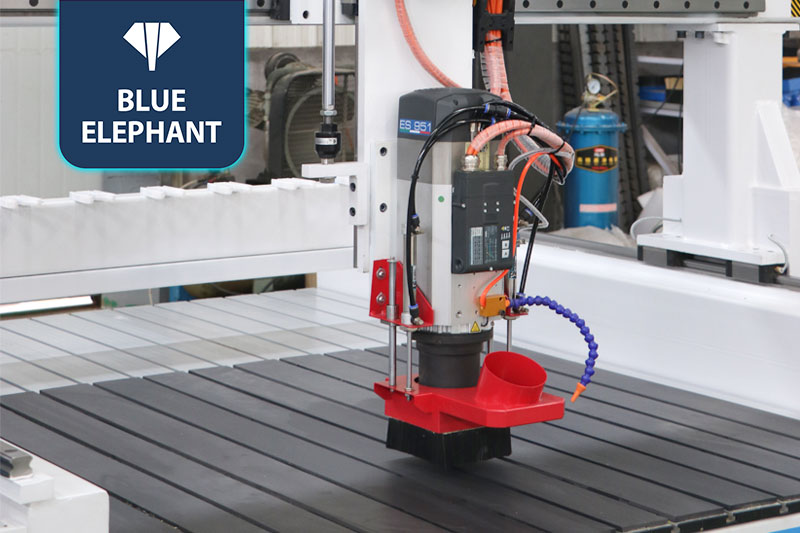

  • 9kw air-cooled spindle, powerful and the cutting ability in the workpiece is stronger.
  • It is equipped with a separate control cabinet, more convenient in terms of operation and maintenance.

Parameters

Description Parameter
X, Y, Z working area 1300mmx1300mmx500mm
Operating System Taiwan SYNTEC control system
Inverter 11kw Taiwan Delta interver
Table structure New type thicker and bigger heavy duty welded steel frame and gantry
Table Surface T-slot table
Frame Welded structure
X, Y Structure Rack and Pinion Drive ABBA linear guide rail
Z Structure TBI Ball Screw
Limit switch brand  Omron
Lubrication system Automatic lubrication system
Oil mist cooling system Automatic oil mist cooling system
Spindle 9kw HSD air cooling spindle
Spindle Speed 0-24000RPM
Drive Motors 750w YASKAWA servo motor and driver
Working Voltage AC380V,3phase
Command Language G Code
Machine special requirement Countertop sinking 200mm

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
