Intelligent Computer Panel Saw for Sale at Affordable Price in Australia, Lithuania, Colombia

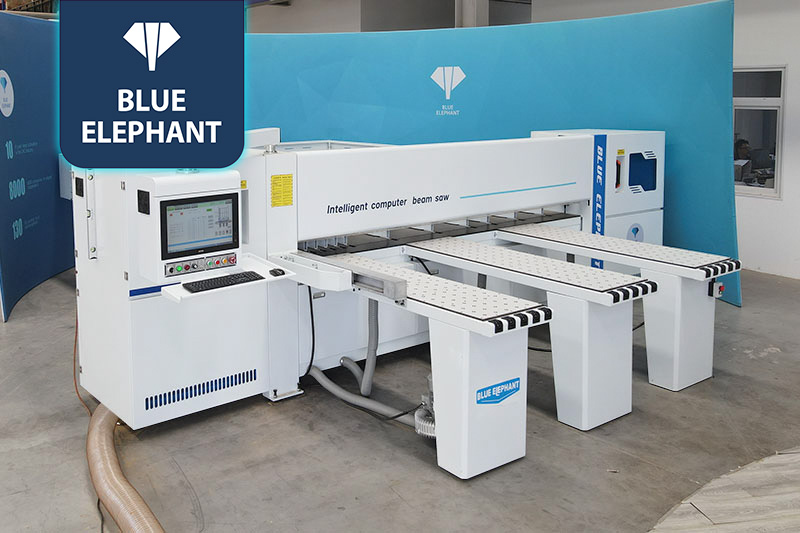

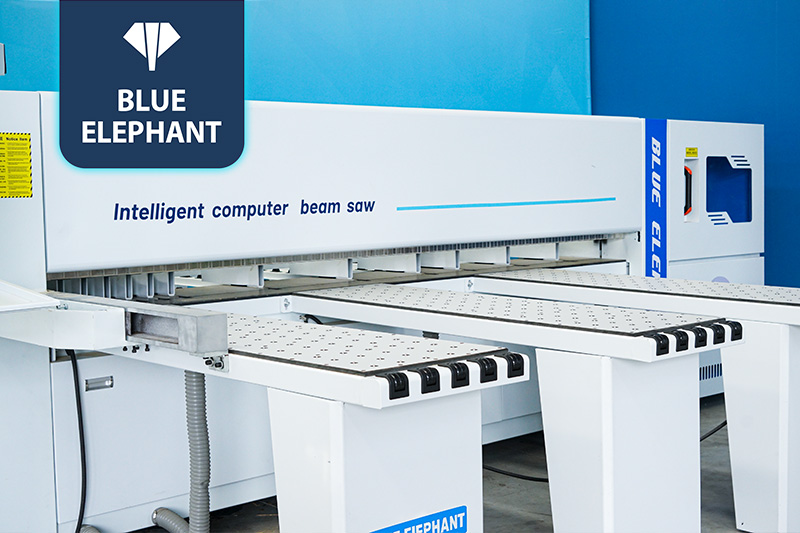

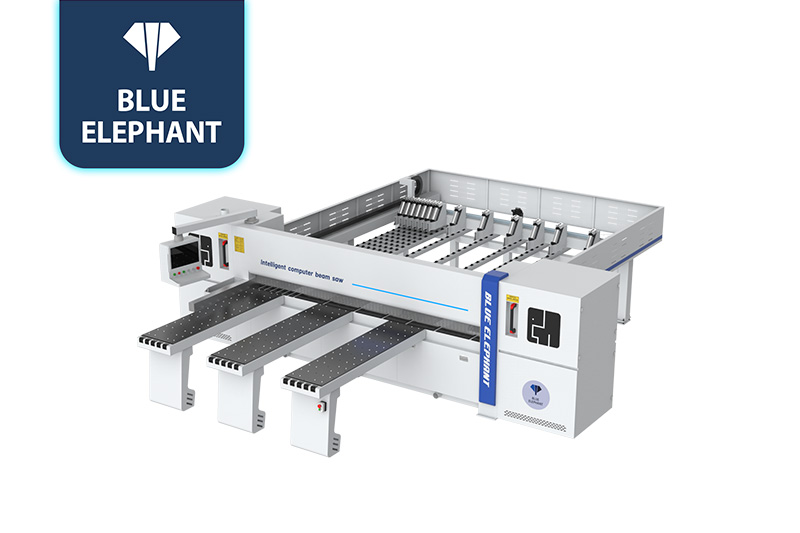

☆This automatic sliding table panel saw is a computer-controlled wooden panel cutting saw machinery. With the panel saw blade, it can cut the wooden panels with high efficiency and excellent accuracy. And the cutting thickness can reach up to 100mm.
Panel Saw Machines Video
Features
- Equipped with a warning device, it has the function of automatic fault detection.
- Uses Fatek PLC, which has stable mass storage and high-speed processing ability.

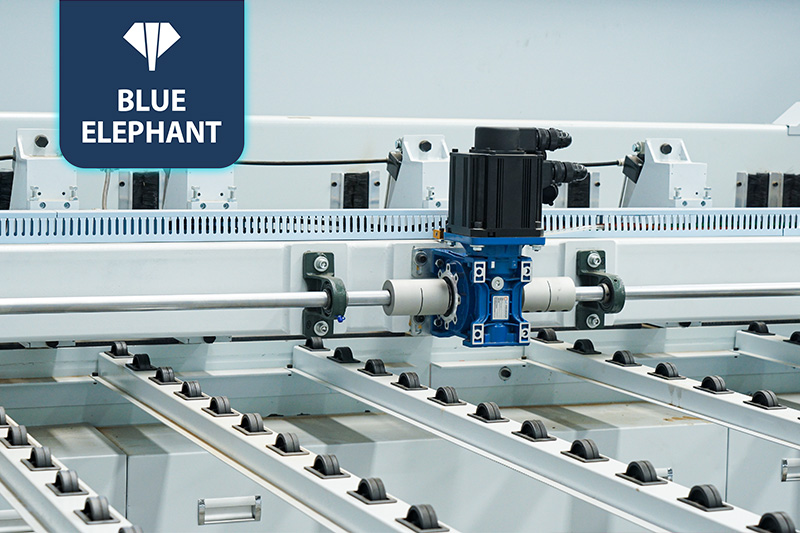

- Adopts INVT servo motor, it runs control demand fast and precisely to guarantee efficient cutting.
Parameters
| Model | ELECNC-280 |
| Overall dimension | 5400x5300x1800mm |
| Cutting length | 2700mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 2.0kW (AC, servo) |
| High-press ventilating motor | 3kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Jikowi |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
Application
Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
