Purchase Best Upper Glue Pot Auto Edgebander at Cost

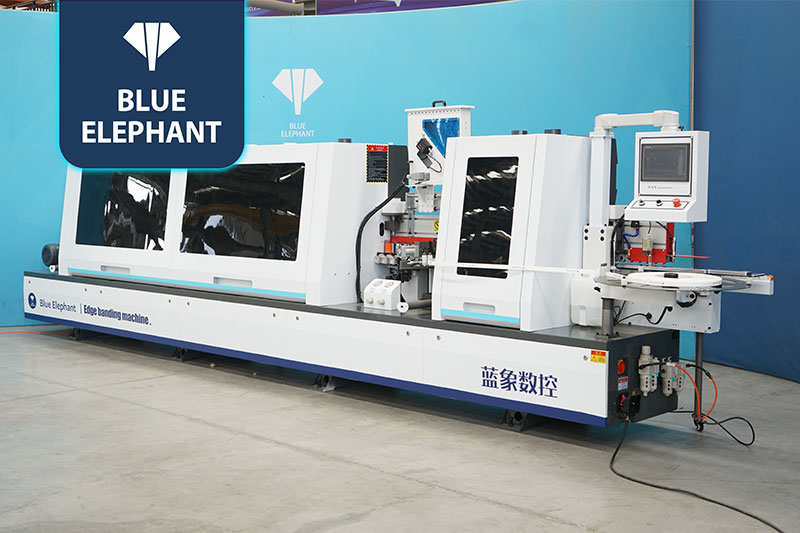

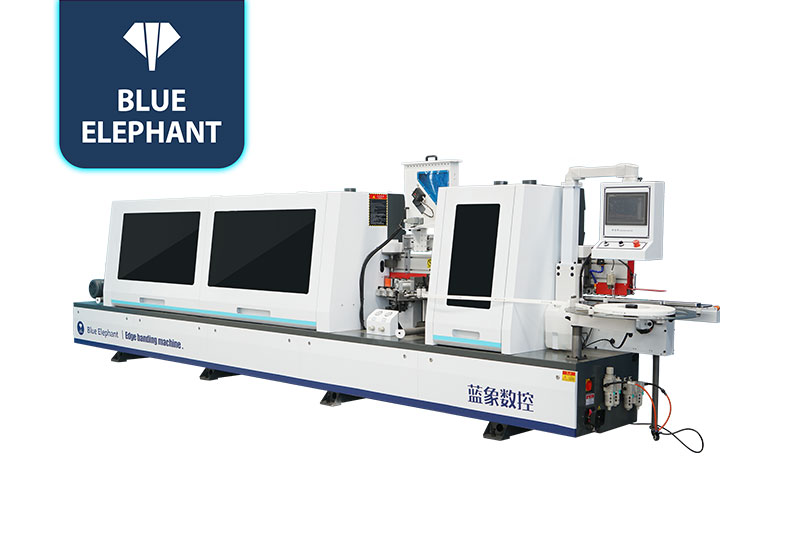

☆This custom automatic edge banding machine is an upgraded edge bander machine. It adopts an upper glue pot dedicated for PUR glue and can also remove the residual glue. It is very suitable for cabinet and other wood furniture making.

Get Details & Prices

Edge Banding Machines Video

Get More Videos

Features

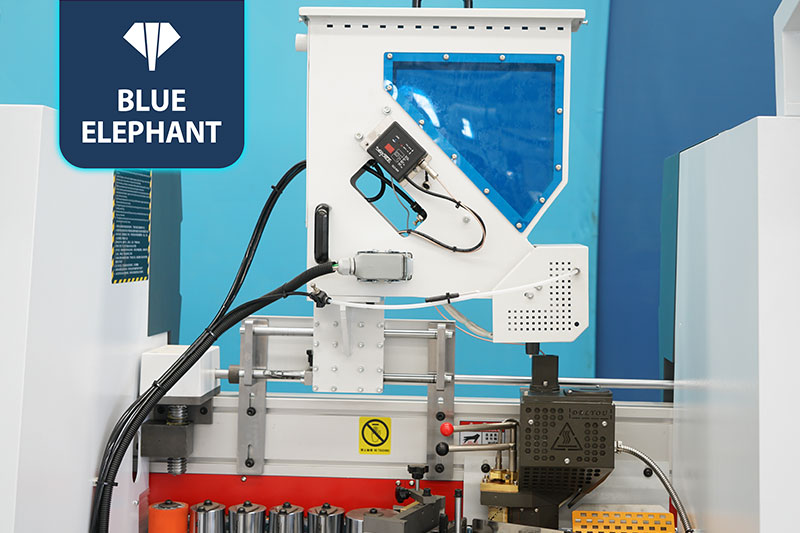

With an upper glue pot, it has better banding effects, narrow glue lines, and good mildew-proof and moisture-proof features.
It can remove the residual glue to make the edges more smooth and pretty.

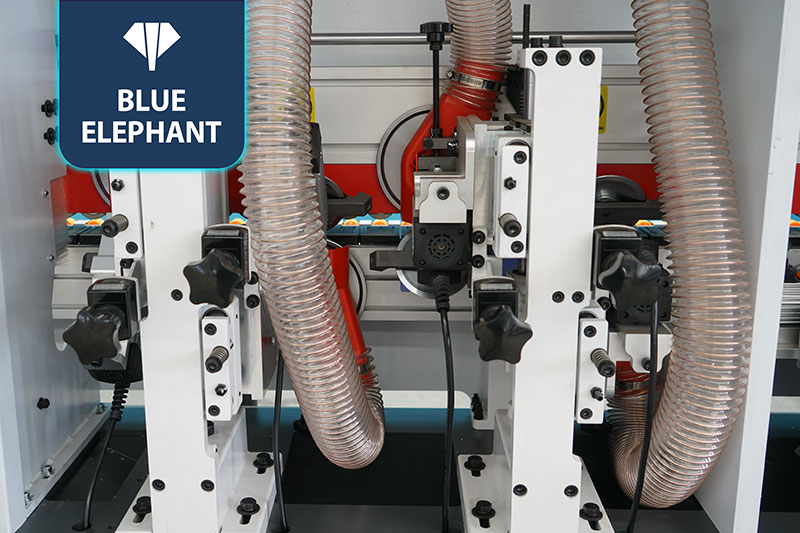

The profile tracking and trimming function can trim the banded panel corners more smooth.

Parameters

Model	E-70JR
Overall size	6800x970x1800mm
Total power	16.5kW
Feed speed	15-23m/min
Electric lifting	0.37kW
Panel Thickness	10-60mm
Panel length	≥120mm
Panel width	≥60mm
Edge band thickness	0.4-3mm
Working pressure	0.6Mpa
Voltage	380V, 50Hz, 3PH Optional: 220V 3PH; 220V 1PH

Get More Parameters

Application

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
