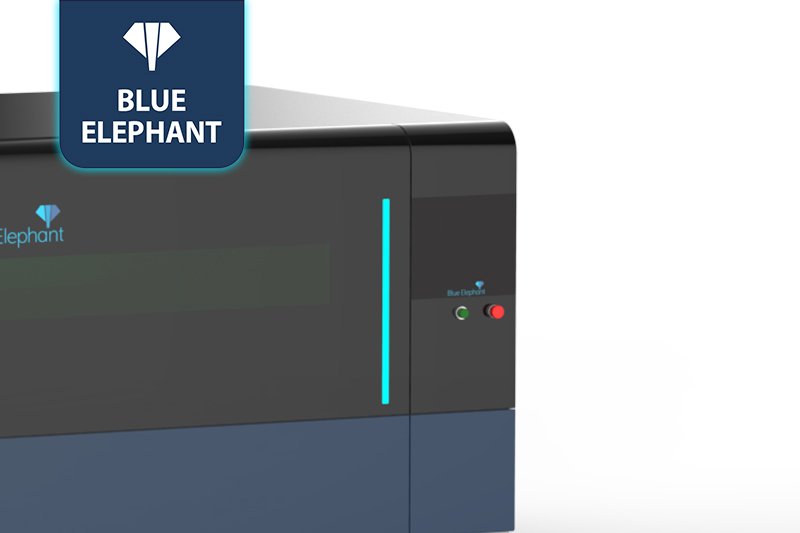

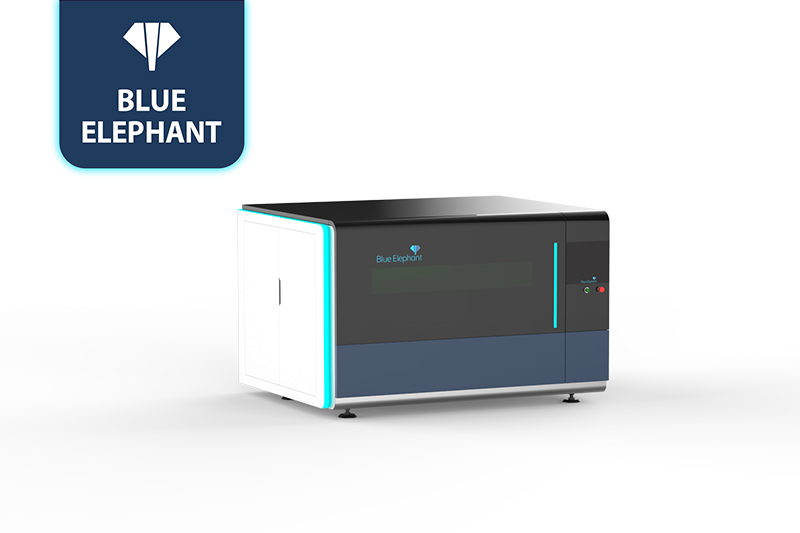

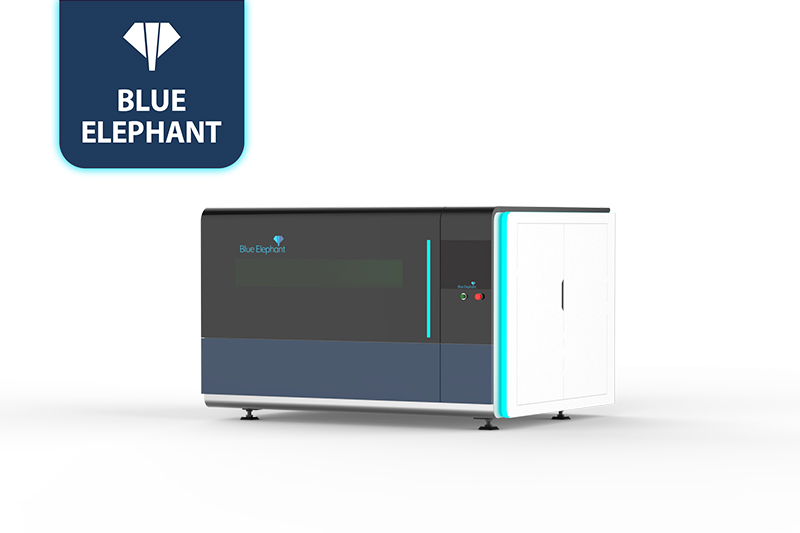

Best High Precision CNC Fiber Laser Cutting Machine

☆This is high-precision fiber laser cutter machine for hot sale in China and countries all over the world. The machine can be customized into samll, medium, and large according to your needs.

Laser CNC Machines Video

Features

  • The machine covers an small area and can meet the metal cutting of the home and small business.
  • It is suitable for processing of thin plate with high speed and high precision.
  • It can realize full-time cutting, efficient cutting, high material utilization, strong expansibility, and wide application.
未标题-1

Control System

Intelligent protection

Automatically monitor the operating range of the beam and cutting parts, and have the double guarantee of fixed limit, which greatly improves the equipment and personal protection, and reduces the customer’s use risk.

Multiple data graphics

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry
pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-6060Q ELECNC-9090Q ELECNC-1390Q
Working area (mm) 605*605mm 905*905mm 1305*905mm
Machine size 2500*2250*1950mm 2500*2250*1950mm 2500*2250*1950mm
Machine weight 1.1t 1.3t 1.4t
Worktable bearing capacity 40kg 140kg 210kg
Max. acceleration 1.1G 1.1G 1.1G
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Focusing method Auto/manual Auto/manual Auto/manual
Machine bed Tube welded bed Tube welded bed Tube welded bed
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Relay Schneider Schneider Schneider
Circuit breaker Schneider Schneider Schneider

Application

High precision is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy.Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
