High Performance ATC Rotary Axis CNC Wood Machine for Sale in Russia, lithuania

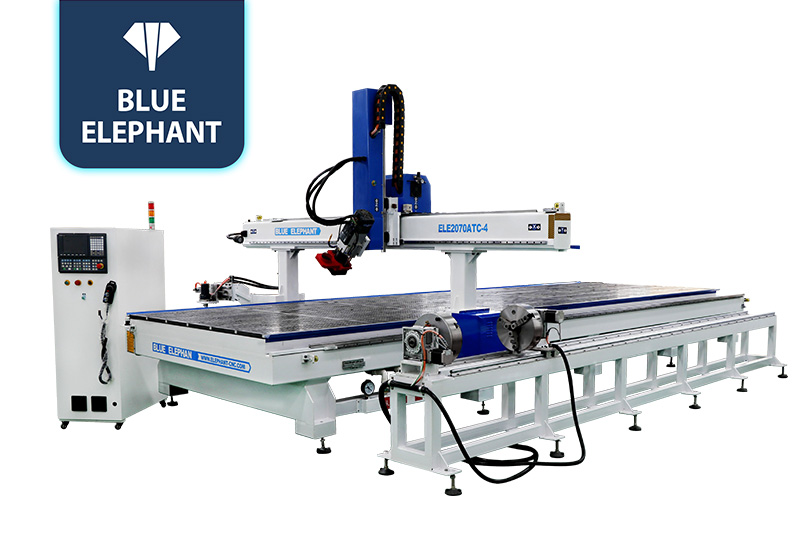

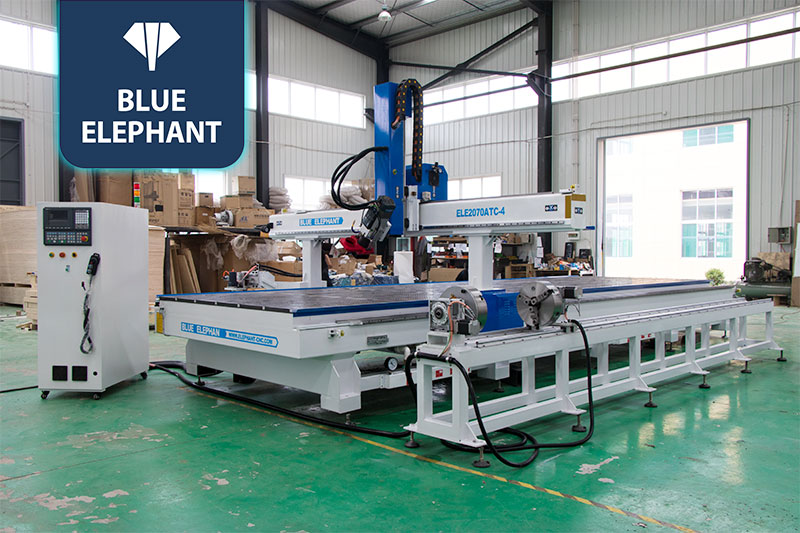

☆This is a custom 4 axis CNC router machine with an automatic tool changing function and a separate rotary device. Its working size is 2000x7000mm, good at processing large-sized wooden boards for mass production. Besides, the 4 axis spindle and rotary device enable it to realize 3D processing.
Rotary Axis CNC Router Machines Video
Features
- This CNC router machine has a custom big working size of 2000x7000mm, suitable for processing large-sized wooden boards for various personalized products.
- Both the rotary spindle and the rotary device can process three-dimensional workpieces automatically and precisely.
- The separate rotary device is suitable for the machine when its Y-axis travel is larger than 2000mm and rotary device diameter is larger than 300mm.
Parameters
| Model | ELECNC-2070ATC-4 |
| Color | White and Blue (customizable) |
| Effective Working Area | 2000*7000*400 mm |
| Working Voltage | 380V, 3Phase, 50Hz |
| Control system | SYNTEC Control System |

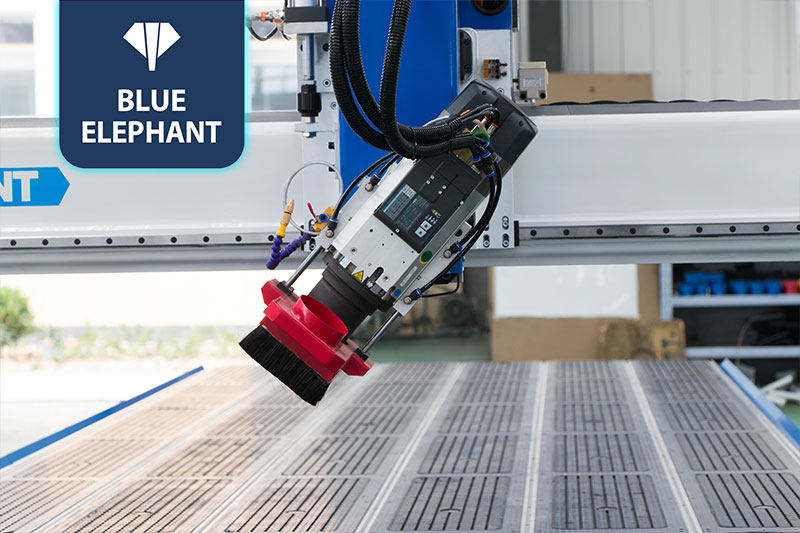

| Spindle | Italy HSD 9KW Air Cooling Spindle |
| Inverter | 11kw Delta Inverter |
| Motor & Driver | Japan YASKAWA Motor and Driver 1Kw |
| Lubrication System | Auto Lubrication System |
| Gantry Structure | Gantry Moving |
| Table Surface | T-slot and Vacuum Working Table |
| Transmission | X,Y Rack and Pinion Drive, Z Taiwan TBI ball Screw |

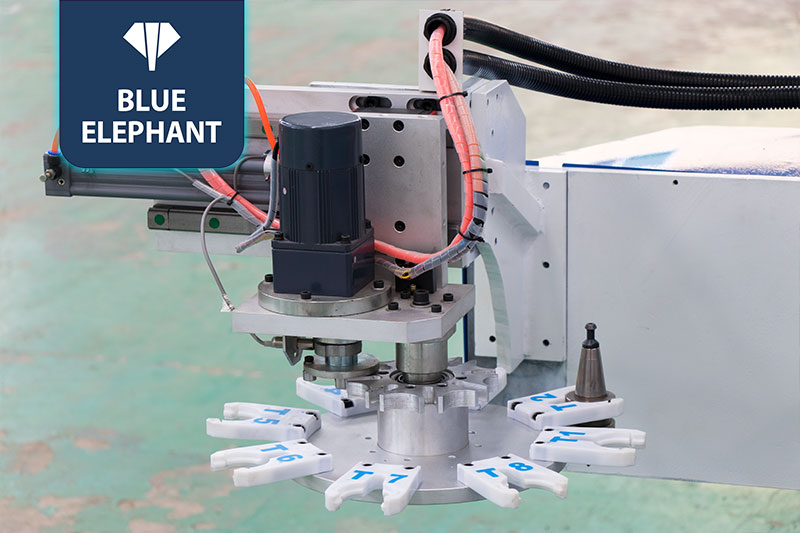

| Tool Sensor | Carousel Tool storage 8pcs Tool Storage |
| Structure | New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
