Best Edge Banding Production Line at Good Price in England, France

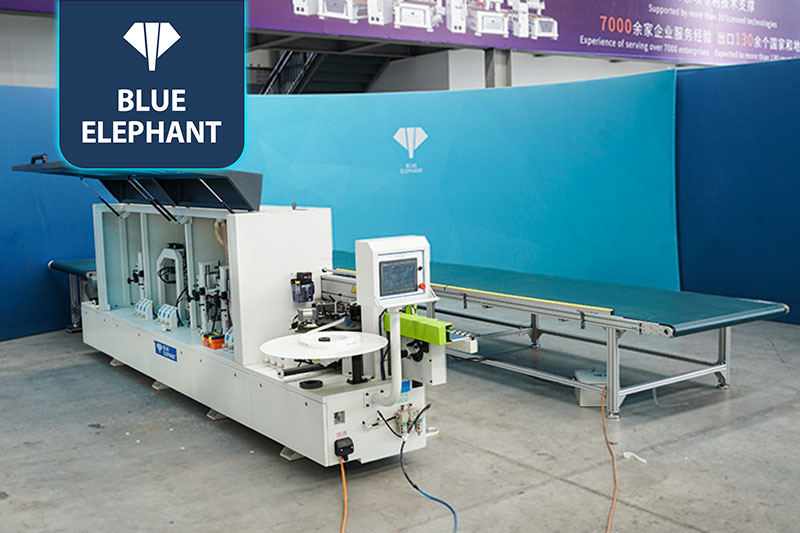

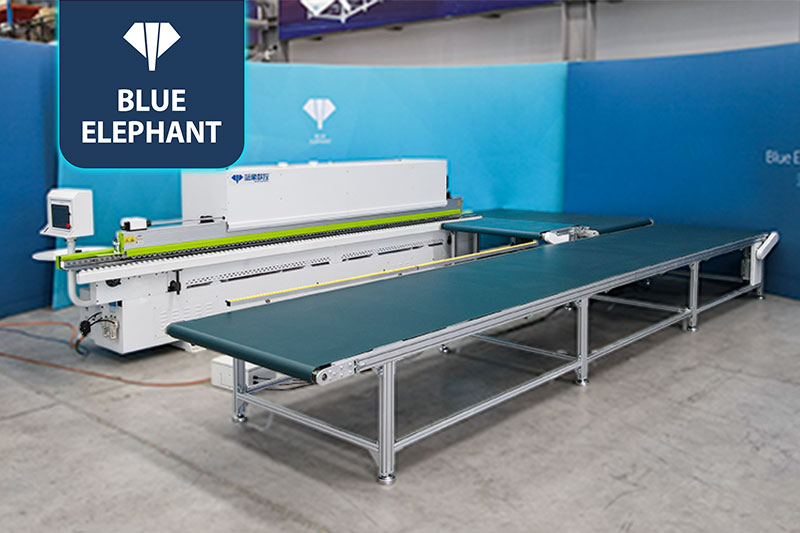

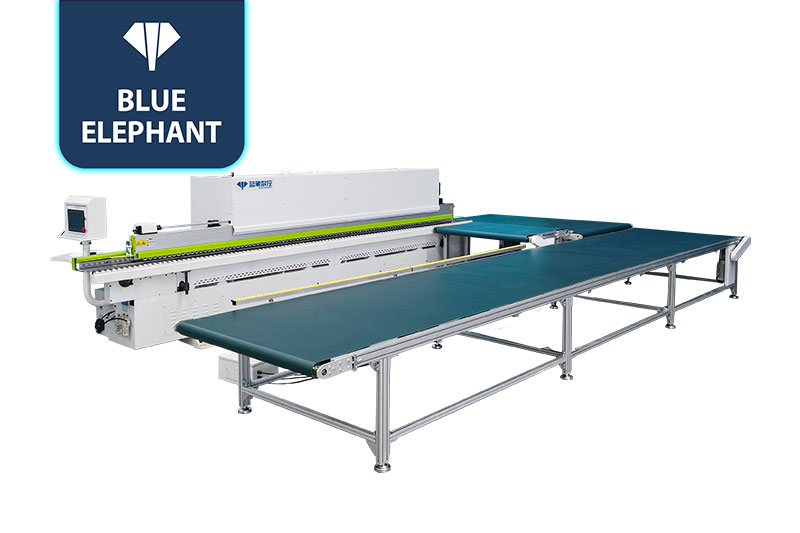

☆This automatic edge banding production line is consists of a fully auto edge banding machine and several auxiliary belt conveyor platforms. It has the features of easy operation, high efficiency, and high accuracy.
Edge Banding Machines Video
features
- Consists of an automatic edge banding machine and several belt convey platforms, this production line is very easy and convenient to operate.
- It can complete gluing, banding, end cutting, rough and fine trimming, profile tracking, scraping, and polishing.
- It can not only improve work efficiency but also save much labor costs.
Parameters
| Total power | 10.8kW |
| Dimension | 5600*960*1600mm |
| Feeding speed | 16-23m/min |
| Thickness of edge band | 0.4-3mm |
| Thickness of wood board | 10-60mm |
| Length of wood board | ≥150mm |
| Width of wood board | ≥60mm |
| Working pressure | 0.6Mpa |
Application
Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
