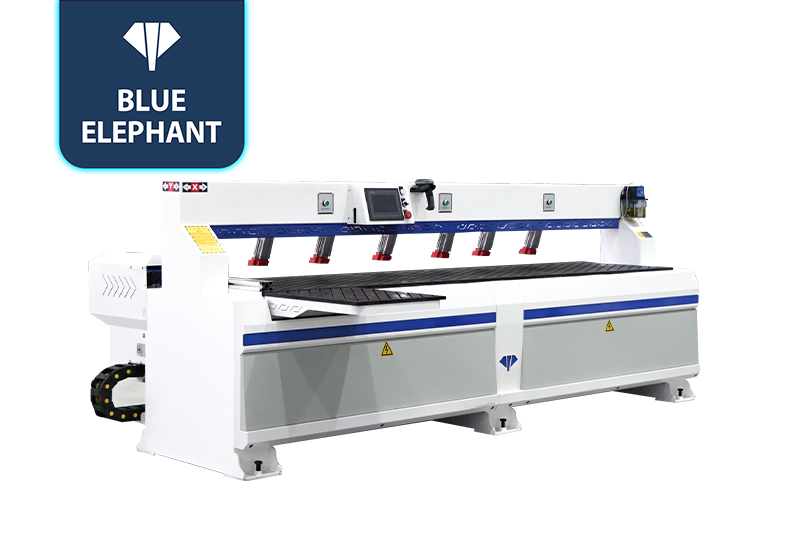

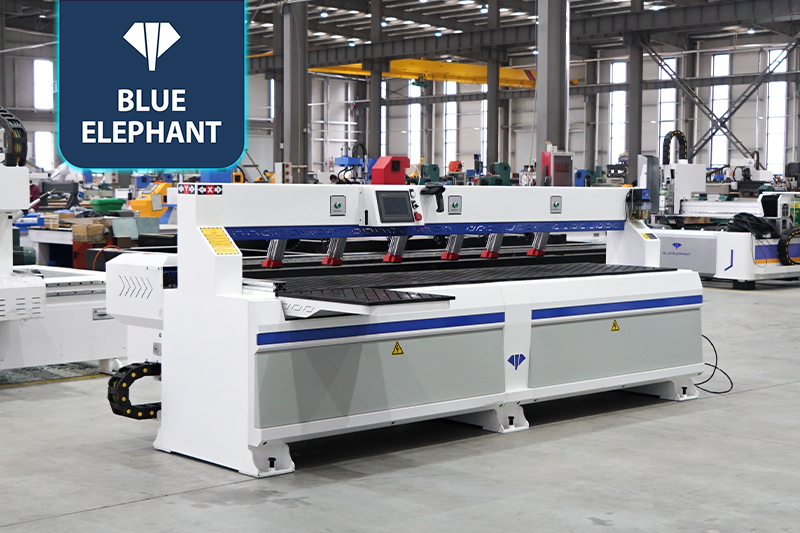

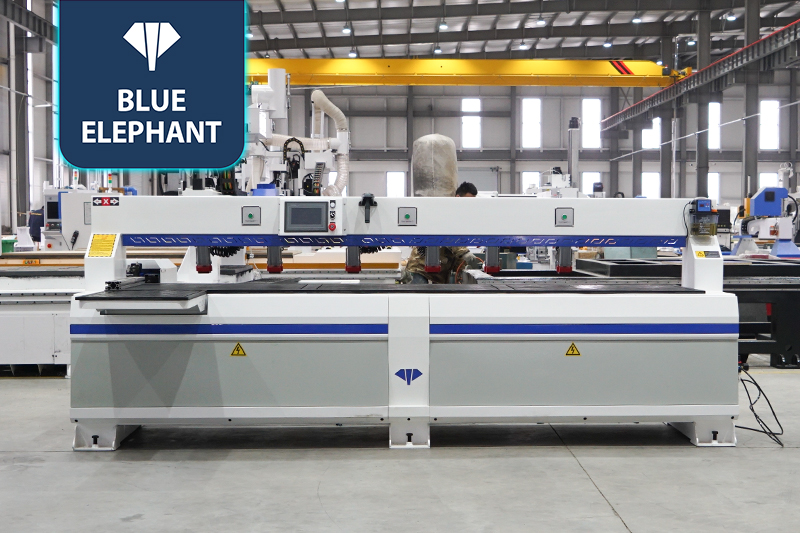

High Efficiency Double Heads Side Hole Drilling Machine for Sale
☆This side drilling machine has two spindles to drill two types of holes in one operation, greatly increasing drilling efficiency. It adopts a dual-use control system that enables operators to scan the barcode with a scanning gun or by automatic laser scanning.
Wood Drilling Machines Video
Features

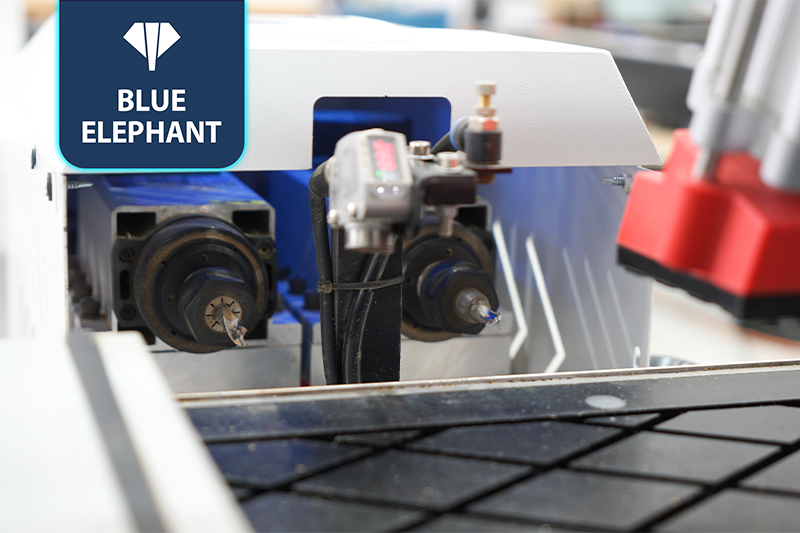

- It is equipped with two high-power spindles to drill holes with fast speed, high efficiency, and good accuracy.
- The custom limits provide safety protection for the processing.
- It uses laser scanning to accurately locate and intelligently determine the punching position.
Parameters
| Model | ELE200 |
| Spindle | 2.2kw Changsheng air cooling spindle |
| Spindle speed | 0-18000RPM/MIN |
| Traveling speed | 10-120 m/min |
| Working speed | 10-80 m/min |
| Effective travel of table | 2800 mm |
| Height of table | 750 mm |
| Drive and motor | servo motor and drive |
| Sensor | BANNER |
| Controller | QIYUE |
| Guild | #20 square rail |
| Rack | Taiwan JUELI |
| Screw | TBI |
| Electrical elements | Schneider Electric |
| Whole size | 3300*1250*1300mm |
| Whole weight | 1100kg |
Application
Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.
