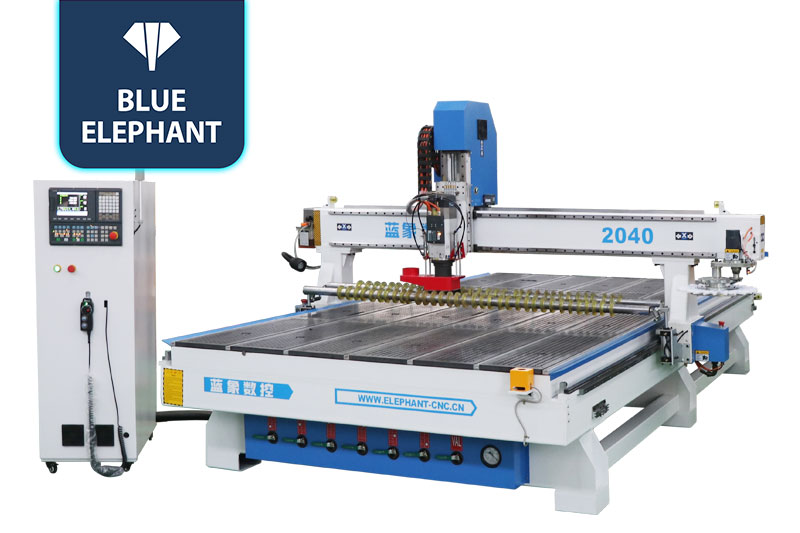

2040 Carousel ATC CNC Router, 2000x4000x300mm Tool Change Machine

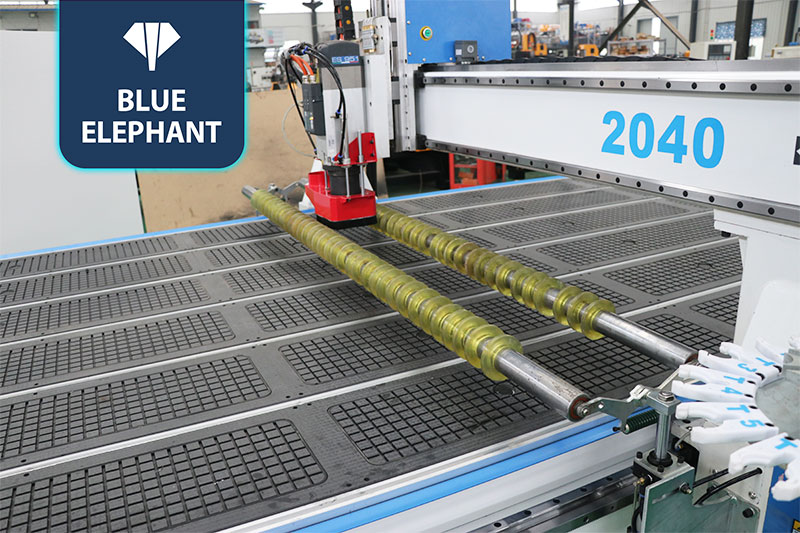

☆Classic Taiwan SYNTEC 6MB control system, it is easy to learn and control for some beginners. Two pressure rollers can fix the raw materials on the table to be engraved more accurately.

ATC CNC Router Machines Video

Features

  • The working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.

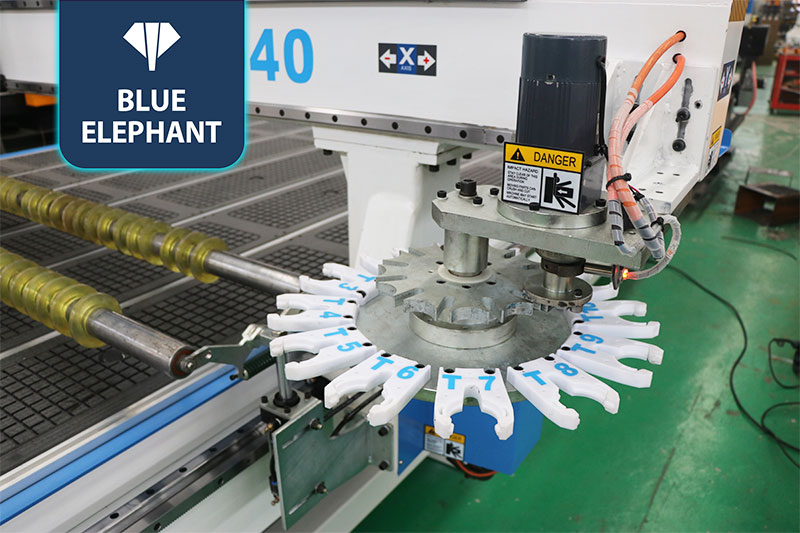

  • 12 sets of carousel tools can be changed automatically in the engraving process, promoting working efficiency.
  • Italy HSD air cooling spindle, speed can be accelerated to 24000RPM for per minutes.

Parameters

Description Parameters
Model ELECNC-2040ATC
Working size 2000*4000*200mm
Working Voltage 380V, 3Phase, 50Hz
Control system Taiwan SYNTEC 6MB Control System
Spindle 9kw Italy HSD ATC spindle
Inverter 11kw Delta Inverter
Motor & Driver Japan YASKAWA 850W servo motor and driver
Table surface T-slot and vacuum working table, 6 zones, with two pressure rollers
Lubrication system New Auto Lubrication system
Automatic tool magazine 12 Tools
Structure New type thicker and bigger heavy duty welded frame and gantry

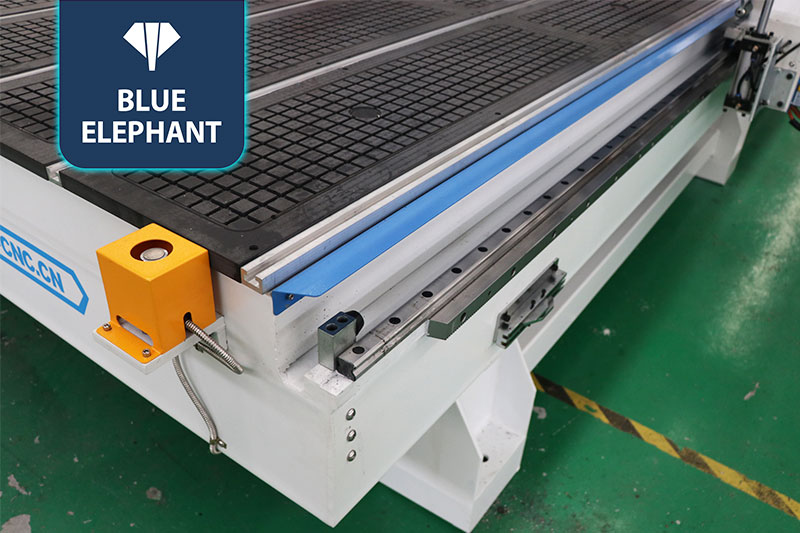

Rail Taiwan ABBA 25#
Vacuum pump 7.5kw water circulation vacuum pump   (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration
Reducer SHIMPO Reducer

Application

This ATC CNC router with a CNC drilling head is good at wood drilling and cutting. The drilling head is equpped with 9 vertical and 3 horizontal drill bits and 1 saw blade. It makes the drilling and cutting process more efficient and saves more time. ATC is essential for automatical woodworking, which greatly reduces non-production time and save human labors. This is the best machine combination for furniture, cabinet and door making.
