Heavy Duty 5 Axis CNC Machine for Sale

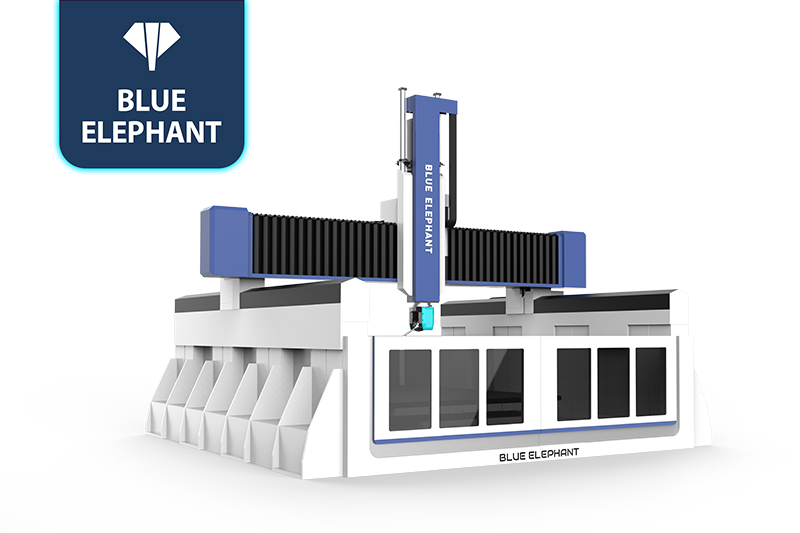

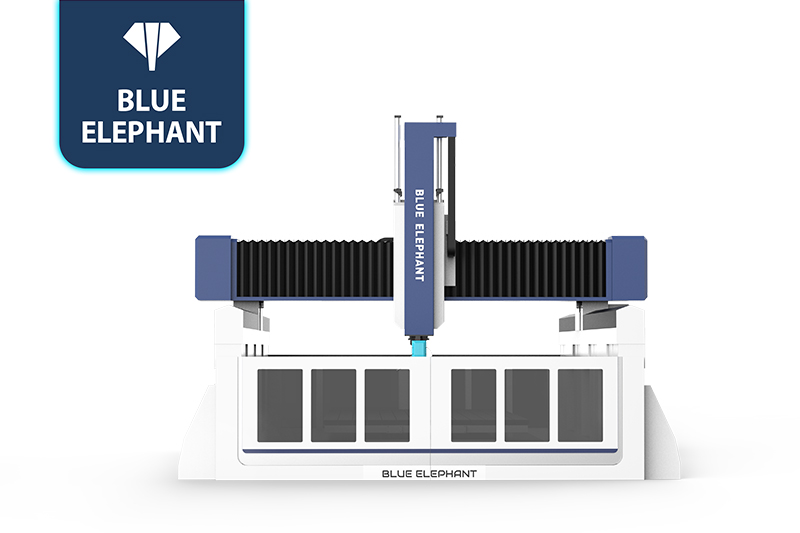

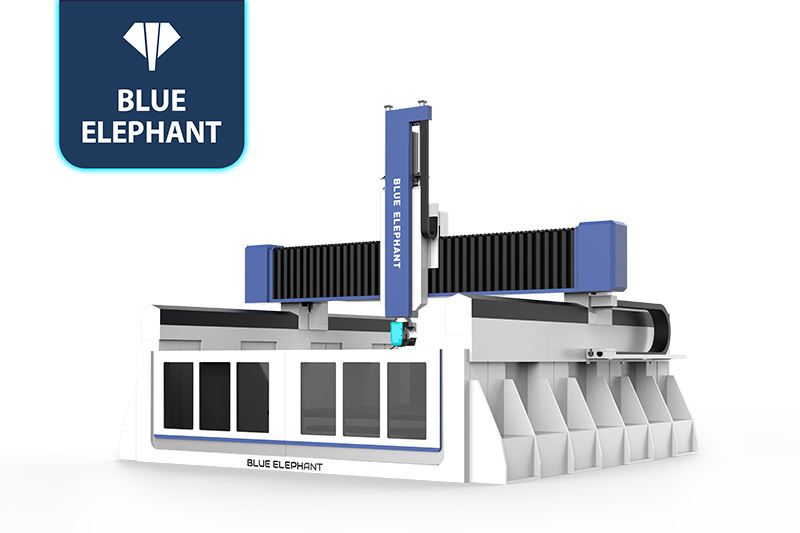

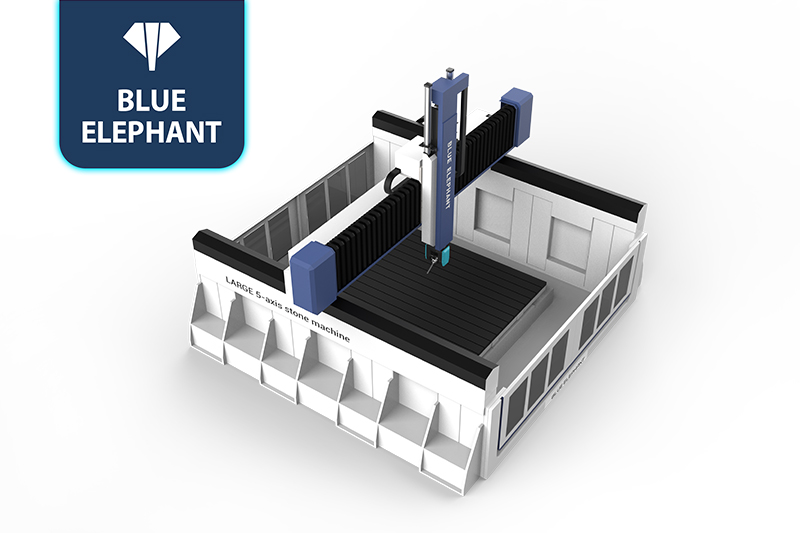

☆The new design heavy-duty 5 axis CNC machining center can process multiple complex projects. Adopts the moving gantry and fixed worktable, it will ensure great flexibility and wide application.
Features
- Heavy duty welded steel frame and gantry can guarantee high stability and rigidity.
- It can reduce repeated clamping time, which greatly shortens product development cycle.
- Equipped with a linear tool changer magazine, it can change tools automatically and achieve multiple machining processes.
Parameters
| Model | ELECNC-3050 |
| X,Y axis travel | 3000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc |
| Z axis travel | 1100mm |
| Spindle type | 10KW Germany DMASS spindle |
| Inverter type | 15kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | HSK tool holder |
| Control system | Syntec 610MA-E5 |
| Driving system | 1800W Japan YASKAWA servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan #35 Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Customized professional 5 axis software |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
Application
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
