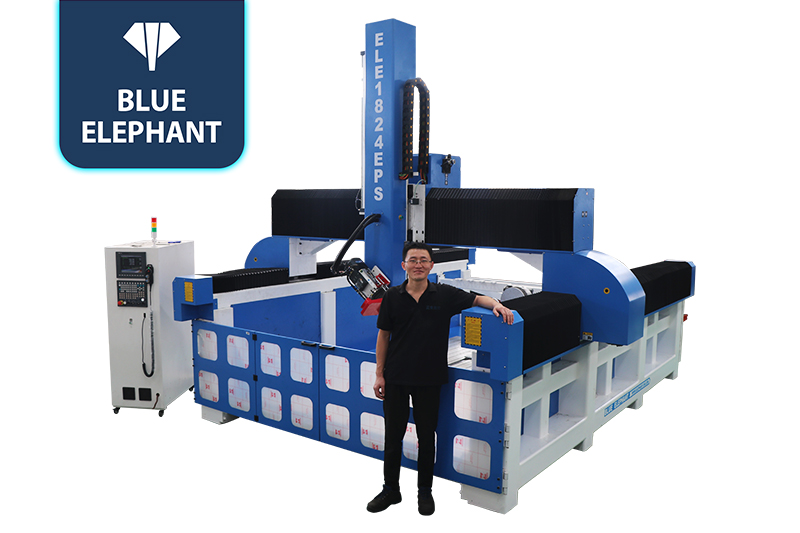

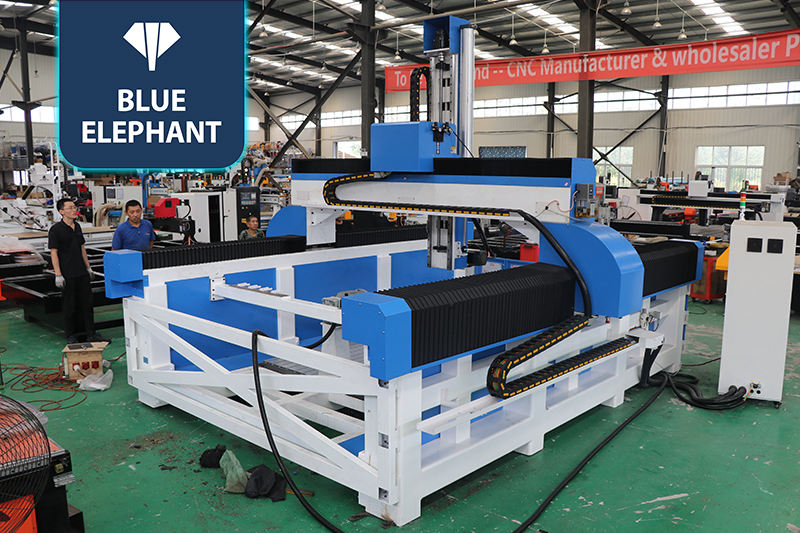

Best Cheap Linear Foam ATC CNC Machine in Australia, Calcutta, Bangkok
☆This is an EPS engraving machine with a linear automatic tool changing magazine, which greatly improves processing efficiency.
CNC Router Machines Video
features
- Adopting linear tool changer with 8 tools to realize the processing of complex workpieces at one time.
- Using Taiwan SYNTEC21MA control system with MPG handle wheel, it is easy to operate.
- The 1800*2400mm worktable size can also be changed to the 1000*2400mm, 3000*5000mm, etc.
Parameters
| Serial Number | S20190930Z |
| Model | ELECNC-1824 EPS |
| Working area | 1800x2400x1200mm for 3axis; 1000x2400x1200mm for 4axis; |
| Spindle | ATC 9.6KW Italy original HSD spindle |
| Spindle speed | 6000-24000RPM |
| Inverter | Taiwan Delta B Model 11.0KW |
| Tool magazine | Liner 8pcs tool magazines/Carousel tool magazine with 8 tools |
| Control system | Taiwan SYNTEC21MA control system with MPG handle wheel |
| Motor and driver | Japan YASKAWA 1.3KW servo motor and drivers |
| Working Table | Aluminum T slot table |
| limit switch | Japan OMRON limit switch |
| Reducer | Japan Shimpo reducer |

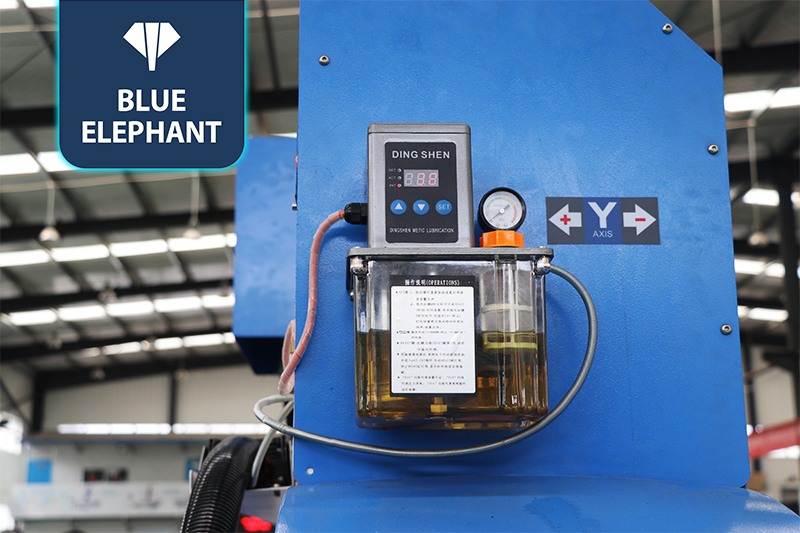

| Lubrication system | Automatic lubrication system for rails |
| Voltage | 380V,3phase, 50HZ |
| X,Y,Z Transmission | X,Y-helical rack pinion, Z axis with 2510 TBI ball screw |
| X,Y,Z Rail | Taiwan PMI linear guide, 35# for X,Z axis; 40# for Y axis |
| Machine Frame | New type thicker and bigger heavy duty 12mm |
| Electric Wires | High soft shield with copper wire to protect against static electricity, UL/CE standard Shanghai Cardiff brand |
| Dust collector | ISO30 tool holders with ER32 collect |
| Tool sensor | Automatic tool sensor |
| Electric part | French SCHNERDER switch |
Application
Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
Production Facility
Quality Control & Testing
