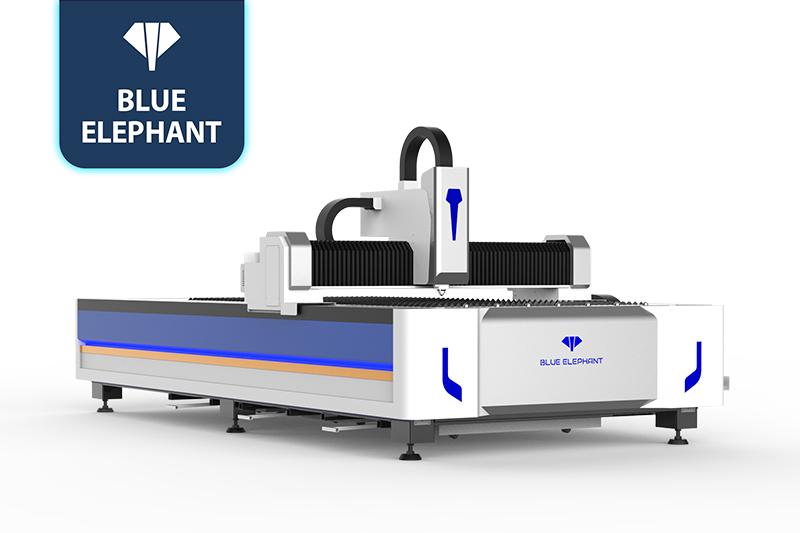

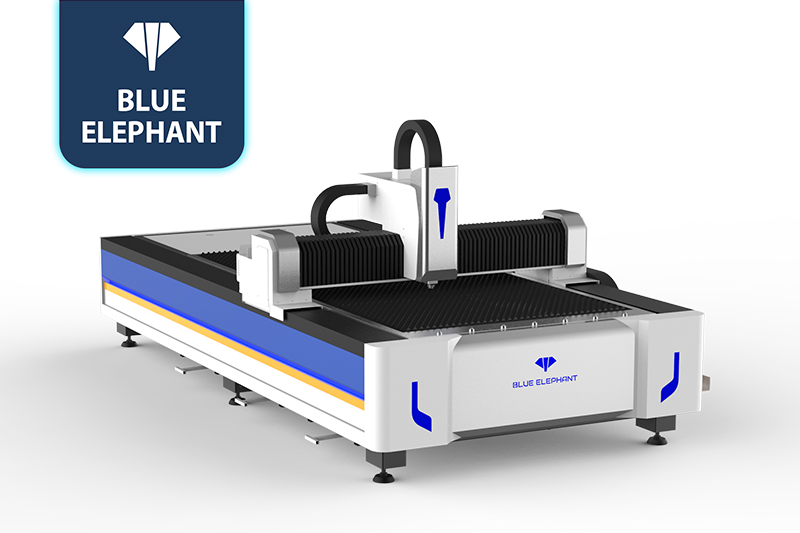

Economic Sheet Metal Laser Cutting Machine

☆This CNC fiber metal laser cutter machine has high performance and high efficiency. It is an ideal choice for the customers who want an entry level laser cutting machine.

Laser CNC Machines Video

Features

  • It can realize metal sheet laser cutting with no burrs, no slag, no black edges, and no deformation.
  • Single countertop make plates loading and unloading available, which improves the processing efficiency.
  • It is suitable for cutting different matels with different power, such as stainless steel, carbon steel, alloy, galvanized steel, titanium, and other metal plates and pipes.
pro-bed

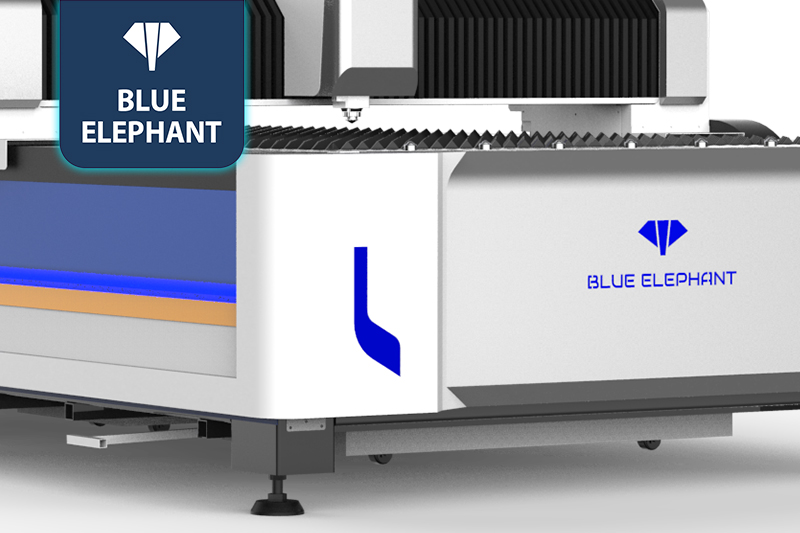

The Tube Welded Bed

High strength, not easily deformed

Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.

More stable

We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry

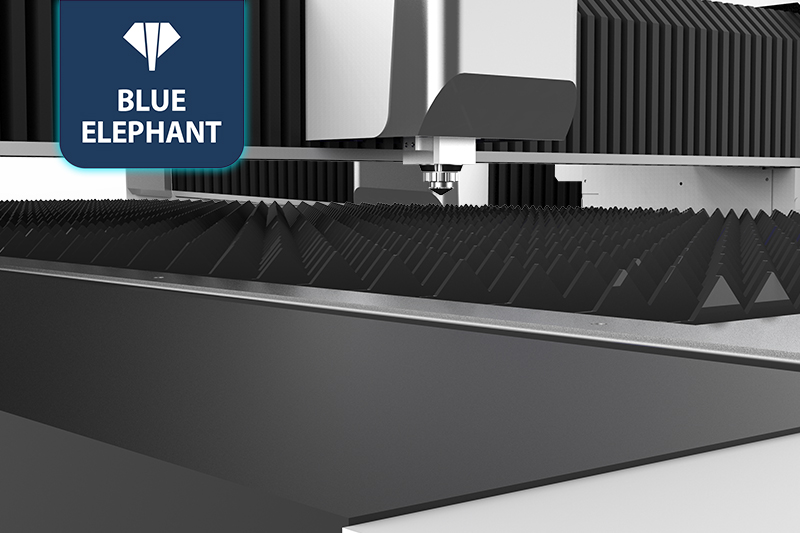

pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-1530F ELECNC-2040F ELECNC-2560F
Machine size 4320*2250*1950mm 5350*2800*1950mm 5350*3350*1950mm
Working area (mm) 1515*3030mm 2020*4040mm 2525*6050mm
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Max. acceleration 1.5G 1.5G 1.5G
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Focusing method Auto/manual Auto/manual Auto/manual

Application

Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
