Sheet and Tube Metal Laser Cutters in Valencia, Piraeus, Antwerp

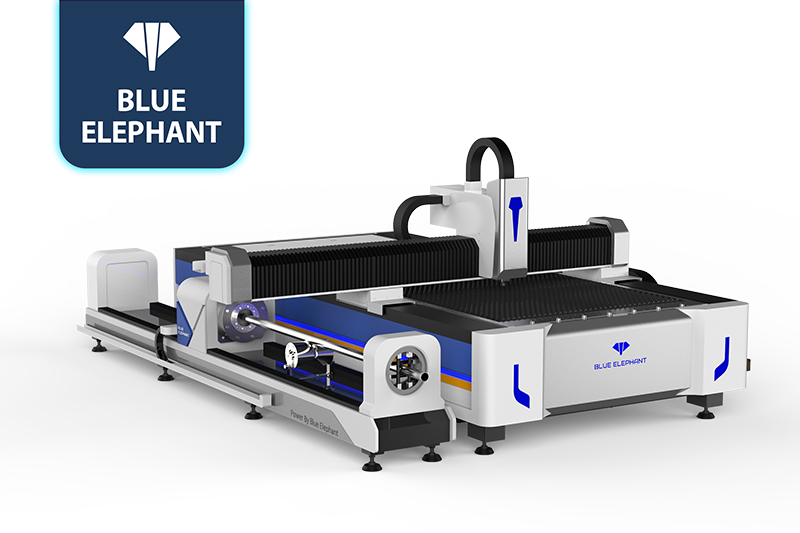

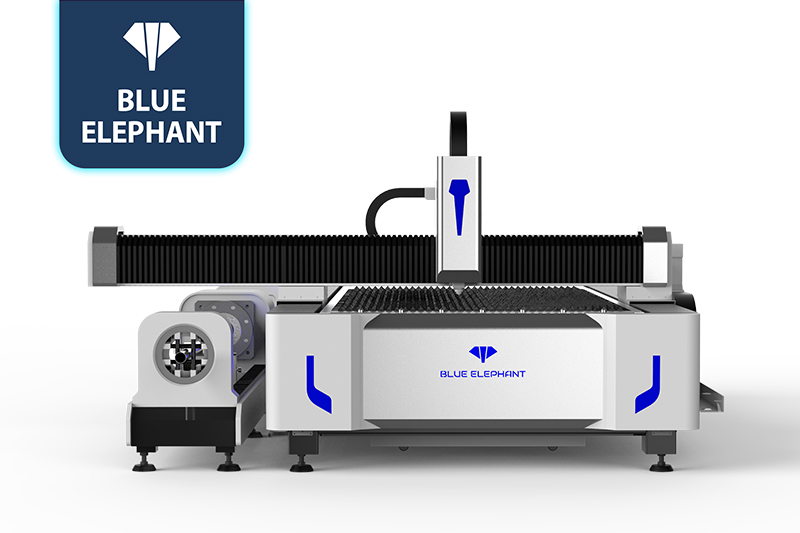

☆This is an dual-used fiber laser cutting machine, which is designed for metal pipes and sheets.

Laser CNC Machines Video

Features

  • With cast aluminum guide rail, which can realize highly accelerated speed circular arc cutting.
  • Adopting the pipe welded bed, which reduces the internal stress and deformation.
  • All parts and components are high-quality or of famous brands, ensuring stable operation and long service time.
pro-bed

The Tube Welded Bed

High strength, not easily deformed

Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.

More stable

We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

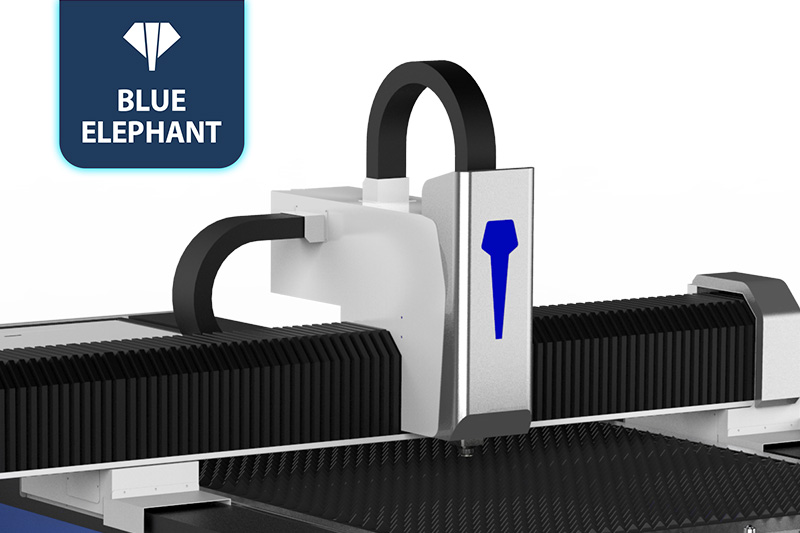

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry
pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-1530FT ELECNC-1560FT ELECNC-2060FT
Working area (mm) 1515*3030 1515*6050 2020*6050
Worktable bearing capacity 800kg 1500kg 2000kg
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Pipe section shape Round/square/rectangular Round/square/rectangular Round/square/rectangular
Max. length of pipe 3m/6m 3m/6m 3m/6m
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Lubrication Auto lubrication Auto lubrication Auto lubrication

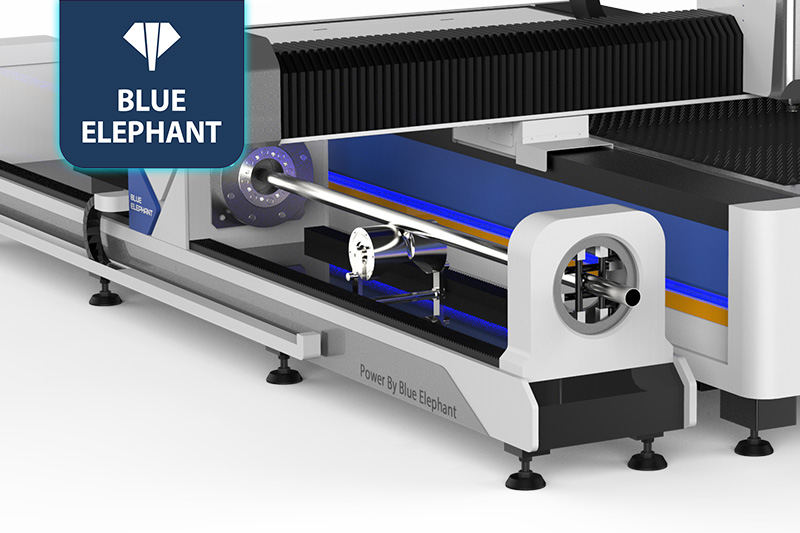

Chuck Double pneumatic chucks Double pneumatic chucks Double pneumatic chucks

Application

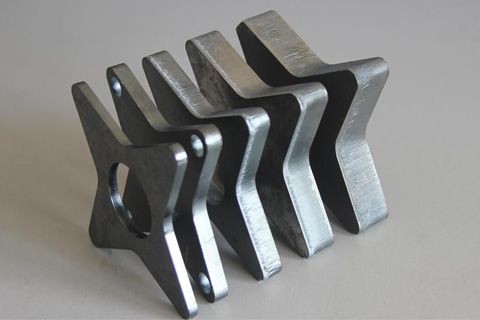

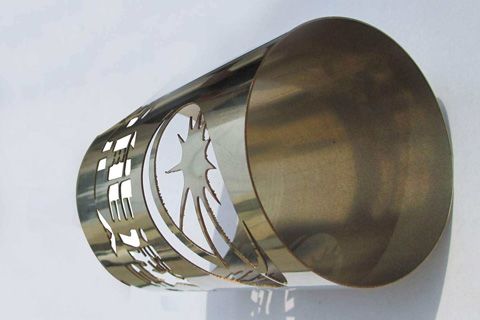

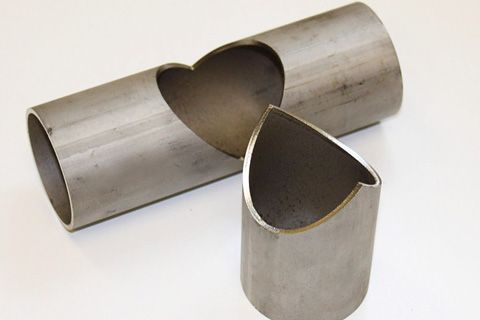

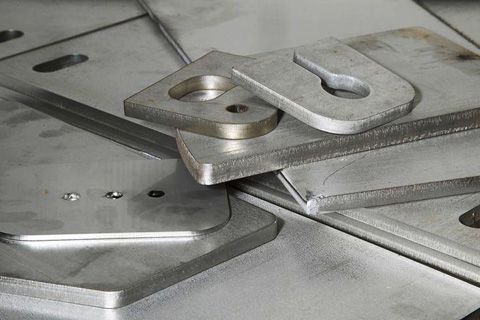

Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
