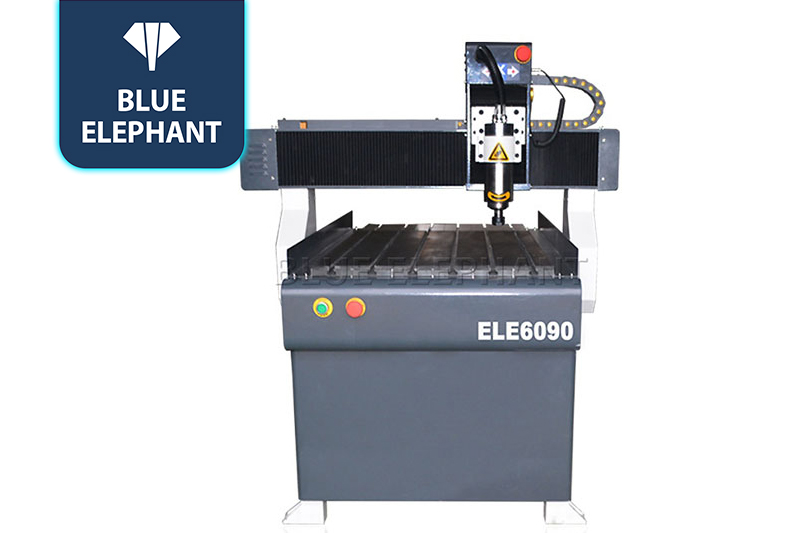

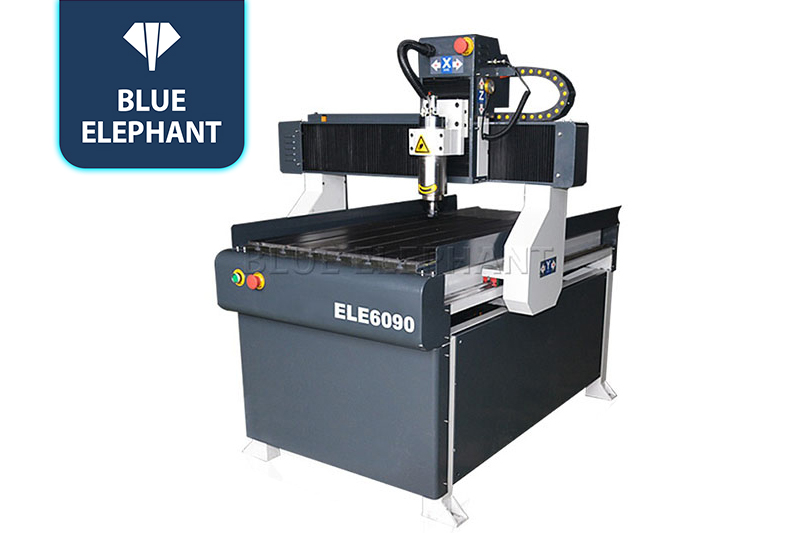

Desktop Aluminum Mini Cnc Engraving Machine for Price
☆It has the effective working area of 600*900mm. And the whole machine is welded with seamless steel and cast iron structure, which is not easy to be deformed.
CNC Router Machines Video
features
- Adopts integral cast iron frame, it makes the machine become more durable.

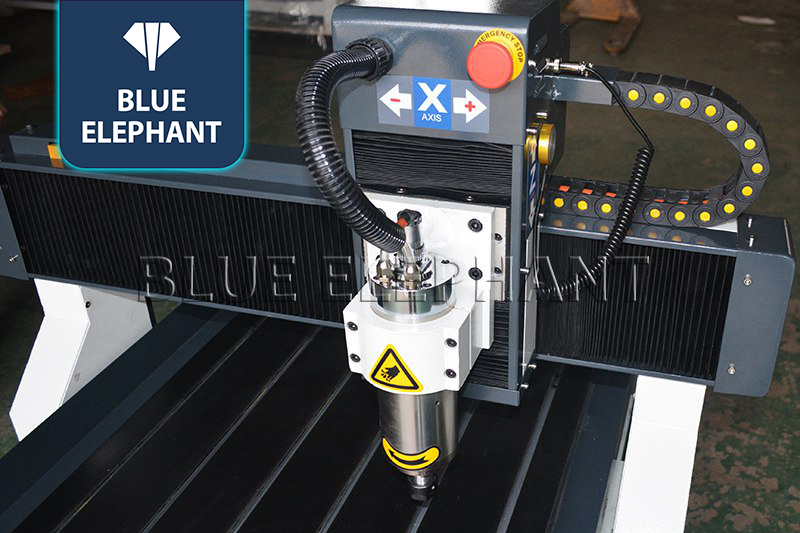

- Equipped with water cooling spindle, it has the feature of high precision, less noise, and good cooling effect.

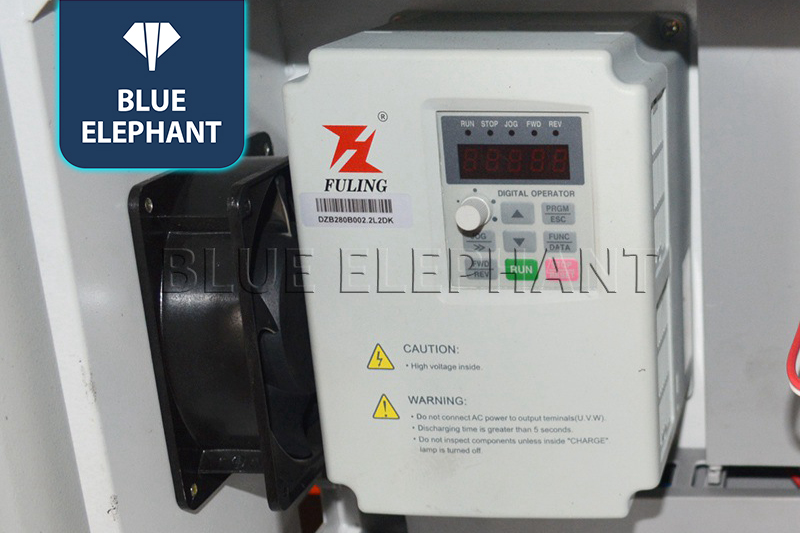

- With Fuling inverter, it is more stable and easy to operate.
Parameters
| Descriptions | Parameters |
| Modle | ELE6090 |
| Working area | 600*900*160mm |
| Control system | Mach3 control system |
| Spindle | 2.2kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm/min |
| Motor | 450A stepper motor |
| Driver | Leadshine M542 driver |
| Transmission | X,Y,Z all axis Taiwan TBI ball screw
Taiwan HIWIN linear square rail #20 |
| Traveling speed | 15m/min |
| Working speed | 12m/min |
| Inverter | 2.2kw Fuling Inverter |
| Table surface | T-slot working table with PVC protection |
| Tool sensor calibration | Simple tool sensor calibration |
| Gantry structure | Cast steel gantry |
| Working voltage | 220V, 1phase, 50Hz |
Application
Wood: redwood classical and antique furniture, wood carving, gifts wooden box engraving, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving and some others;
Letter cutting,sign engraving: Makes all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and others.
