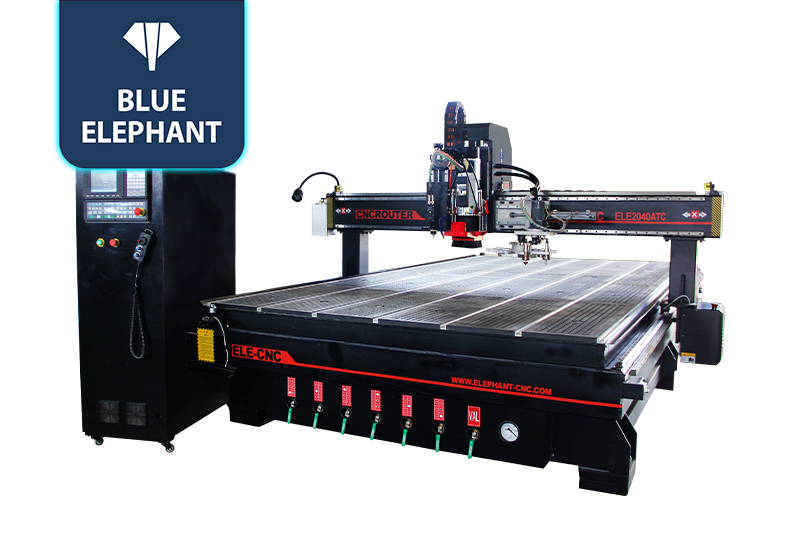

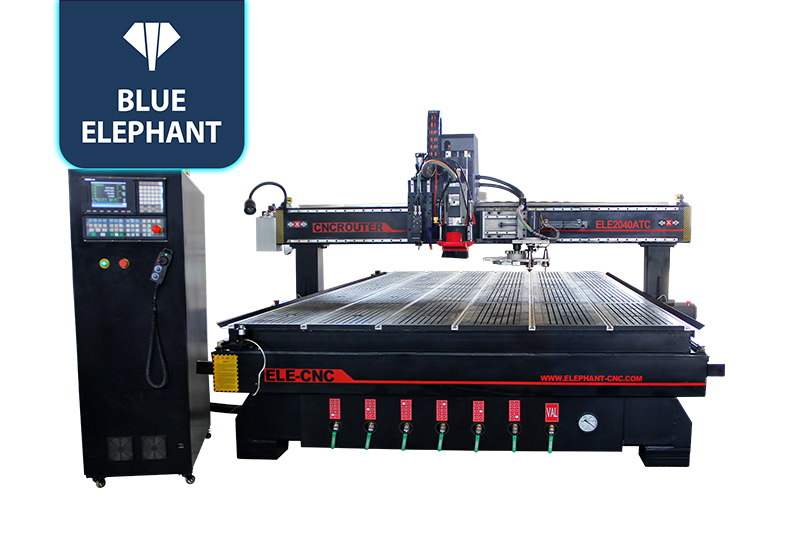

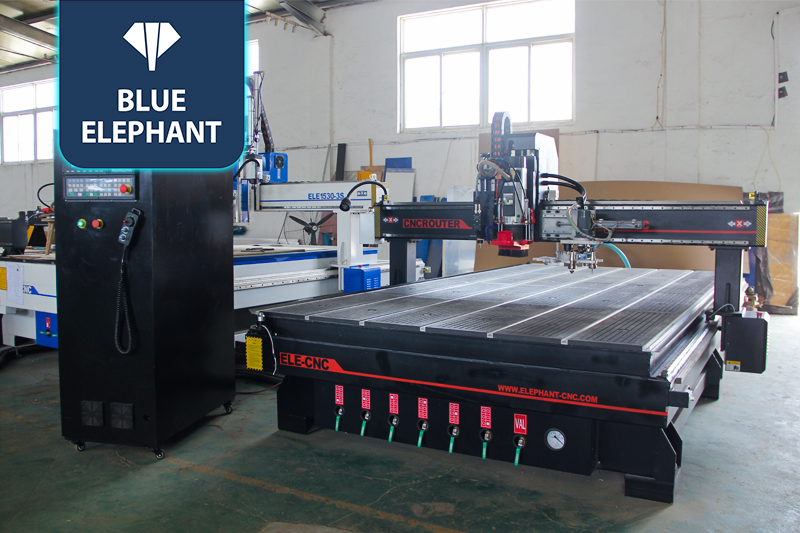

Best ATC CNC Digital Carving Machine for Sale in Lithuania
☆This CNC digital cutter is equipped with German EOT-3 Oscillating Knife, which can process a lot of soft materials. And the carousel automatic tool changer can help improve work efficency.
Digital Cutting Machines Video
Features
- With heavy duty frame and 8-10mm steel gantry, it ensures high processing stability.
- Carousel tool changer magazine with 8pcs tool storage can complete quick tools changing.
- Using an automatic oil mist cooling sprayer, which can prolong the machine service life.
Parameters
Descriptions | Parameters |
Modle | ELE2040ATC&EOT-3 |
Working area | 2000*4000*200mm (can be customized) |
Working Voltage | 380V, 3PHASE, 50HZ (can be customized) |
Control System | Taiwan SYNTEC 6MB control system |
Control box | 1.8m high control box |

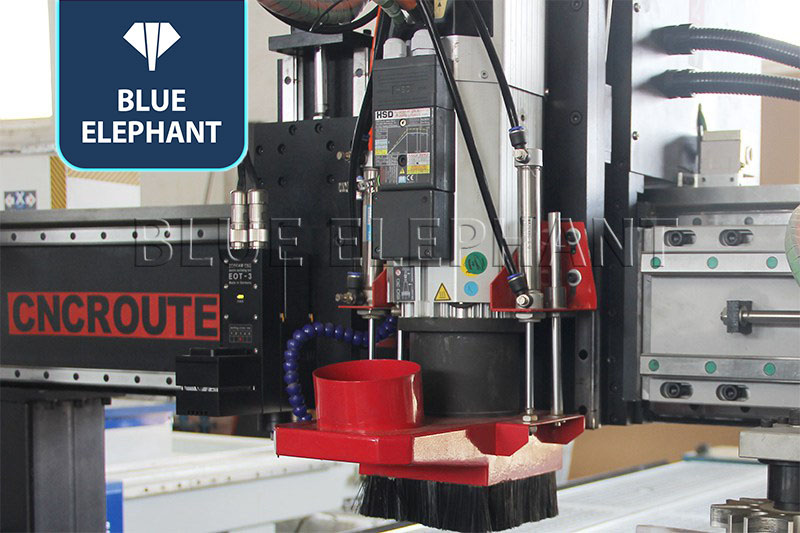

Oscillating knife | Germany ECOCAM EOT-3 |
Spindle | 9kw Italy HSD Air cooling spindle |
Spindle speed | 0-24000RPM/MIN |
Tool magazine | Carousel type + 8pcs ISO30 tool holders (Linear type for optional) |
Motor and Driver | 850w Japan YASKAWA servo motors and drivers |
Inverter | 11kw Taiwan DELTA inverter VFD-B |
Structure | New type thicker and bigger heavy duty welded frame and gantry |
Table surface | T-slot and Vacuum Working Table with 6 Zones |
Gantry structure | Gantry Moving |
Lubrication system | Automatic lubrication system |
Calibration | Automatic tool sensor calibration |
Mist cooling sprayer | Automaitc oil mist cooling sprayer |
Transmission | X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing with dust hood protection for Y axis.
Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25# Linear Bearing & Taiwan TBI Ball Screw |
Vacuum pump | 2 sets 5.5kw water circlulation vacuum pump (380V, 3PHASE, 50HZ) |
Command language | G Code |
Color | According to your reference |
Applications | can process the aluminum, copper soft metal, and so on |
Application
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
