The Most Basic ATC CNC Woodworking Machine

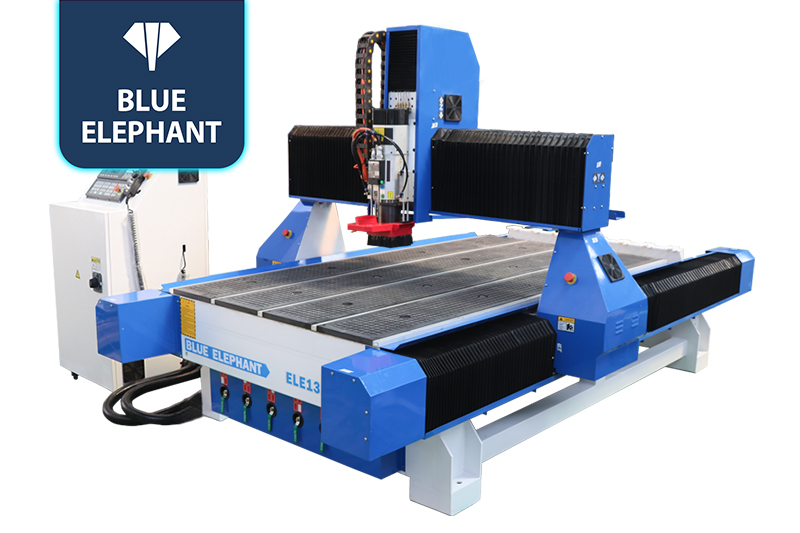

☆This is an entry-level 3-axis CNC router machine with an ATC function and a working size of 4ftx8ft. All the specifications and configurations can be customized according to customers’ demands.
ATC CNC Router Machines Video
Features
- The ATC CNC machine can switch between a large number of tools, improving accuracy and efficiency.
- It adopts a strong and rigid steel structure to avoid vibration and deformation during operation.
- This CNC router machine can be customized to meet different processing demands.
Parameters
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |

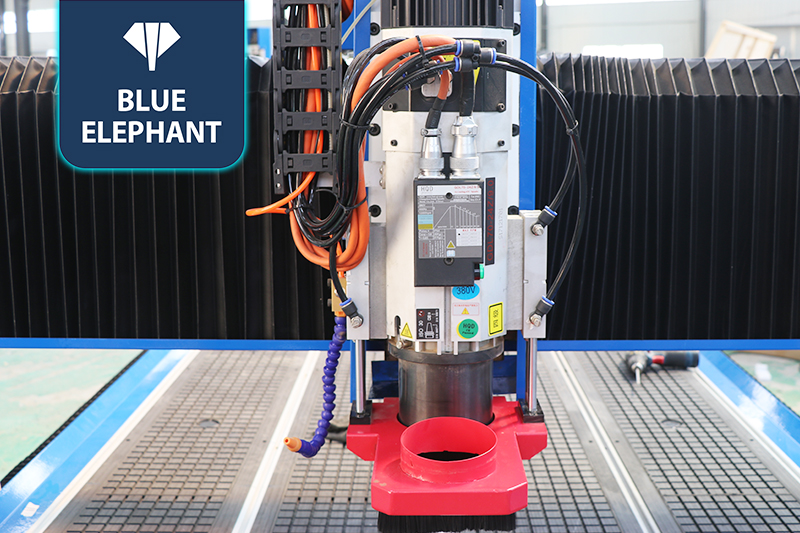

| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Option: Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

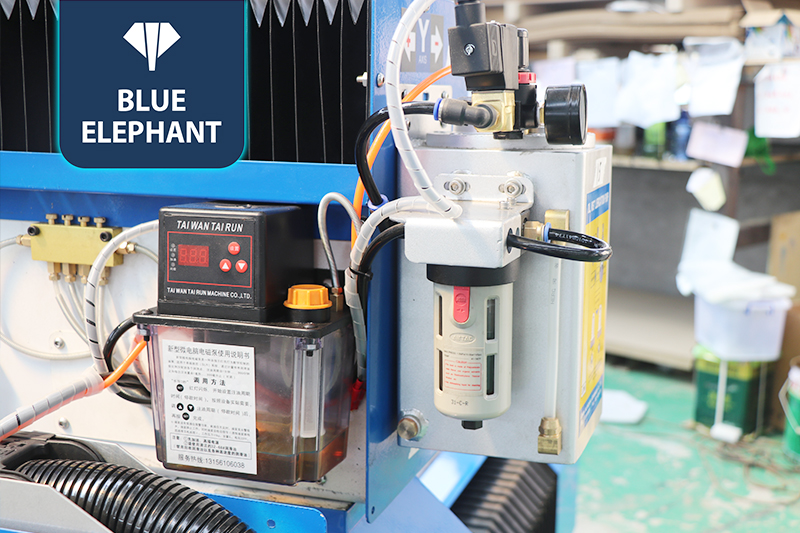

| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
This ATC CNC router is an entry-level 3 axis CNC router with the automatic tool change function. The spindle can move along the X, Y and Z axis.So it is suitable for plate material processing, such as wooden boards, acrylic sheets, melamine boards, etc. Its principal functions include cutting, engraving, grooving, milling, drilling, pocketing, routing and boring. The 3 axis ATC CNC router is widely used in production of panel furniture, molds, advertising signs, crafts and musical instruments, and decoration, jewelry, electronics and other industries.

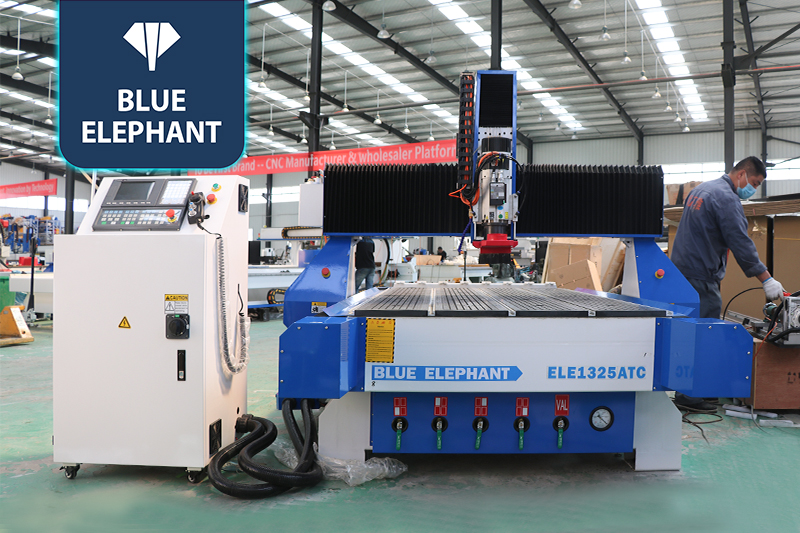

Production Facility
