Cheapest Fiber Laser Cutting Machine for Metal Tube in Korea, Japan and Pakistan

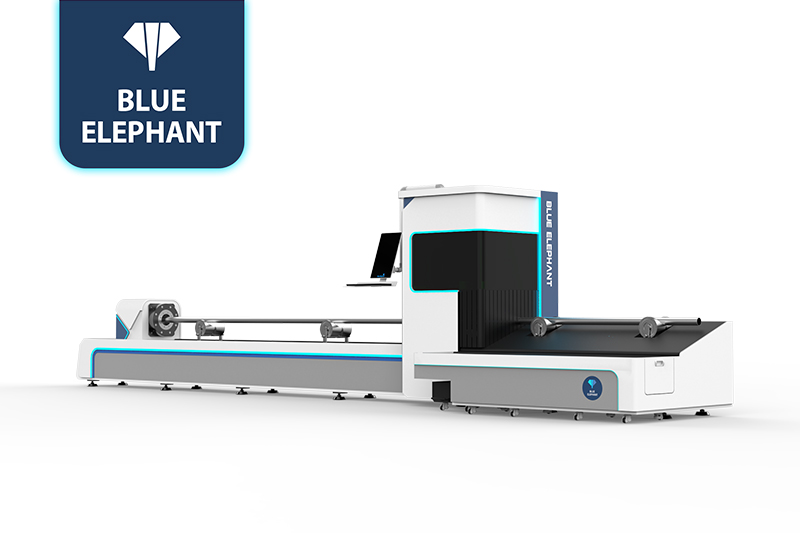

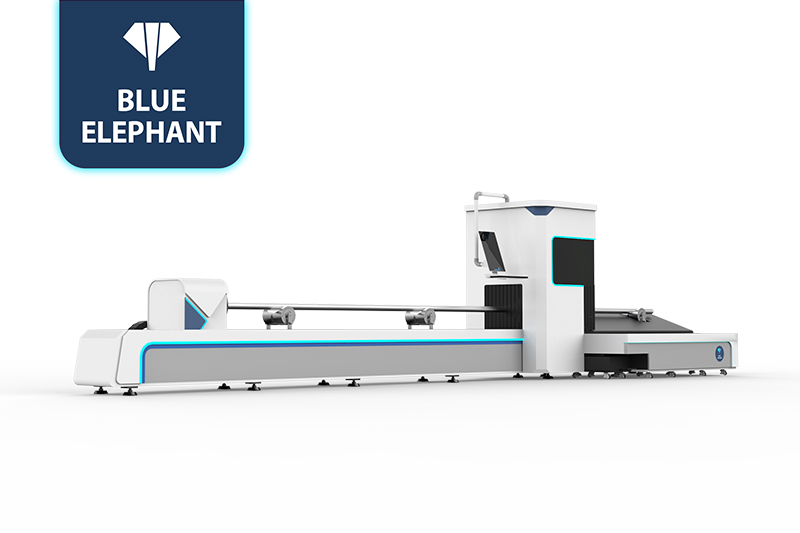

☆This is a professional fiber cnc laser cutting machine, which is specially designed for cutting and engraving metal tubes and pipes.

Laser Tube Cutting Machines Video

Features

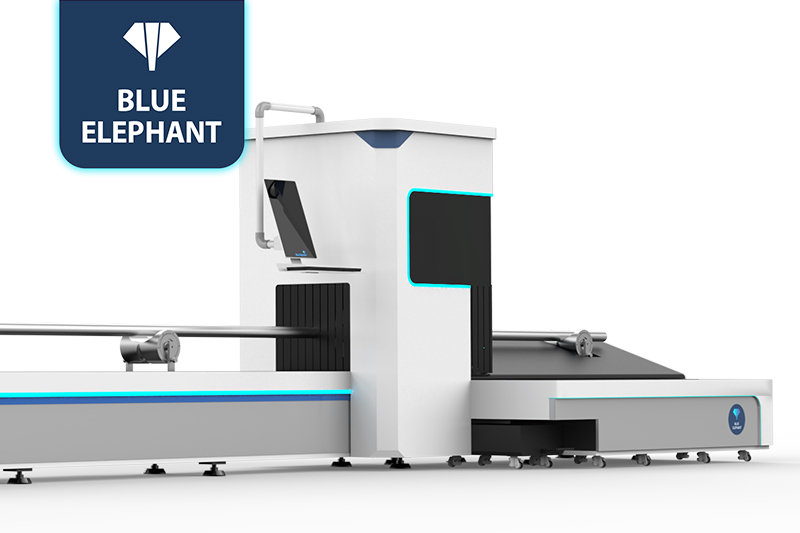

  • The open type design allows the operator to only keep an eye on it while the machine is running.
  • The modular control system is of high intelligence and automation, which maximizse the machine production efficiency,
  • This worthwhile tube cutter is suitable for first-time users, and with economical price, is the best choice for tube laser cutting.

Parameters

Model ELECNC-T6160/T9160 ELECNC-T6220/T9220 ELECNC-T6350/T9350
Max. tube weight 100kg  16kg/m 200kg  30kg/m 500kg  83kg/m
Max. chuck rotating speed 130r/min 130r/min 140r/min
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Pipe section shape Round/square/rectangular Round/square/rectangular Round/square/rectangular
Max. length of pipe 3m/6m 3m/6m 3m/6m
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Lubrication Auto lubrication Auto lubrication Auto lubrication

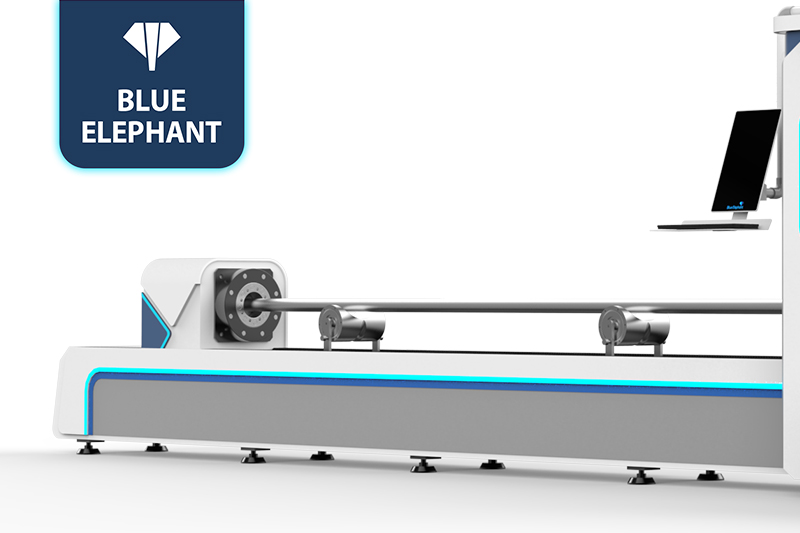

Chuck Double pneumatic chucks Double pneumatic chucks Double pneumatic chucks

Application

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metal tube and pipe.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
