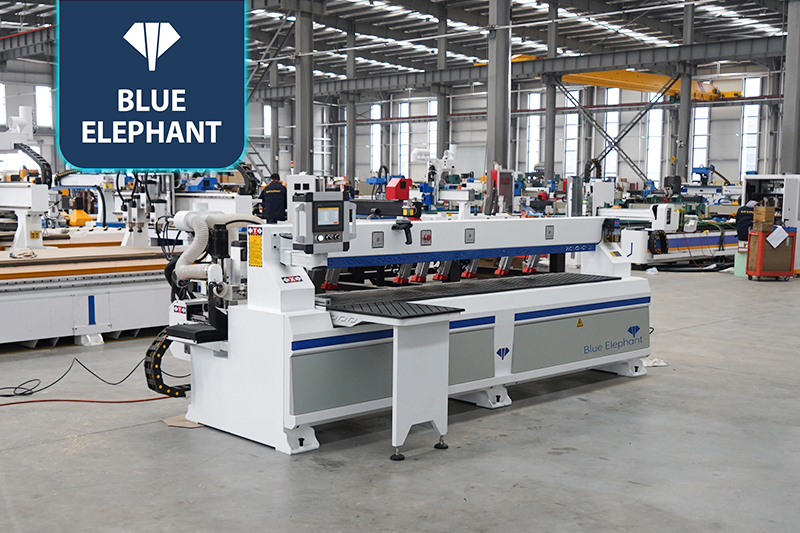

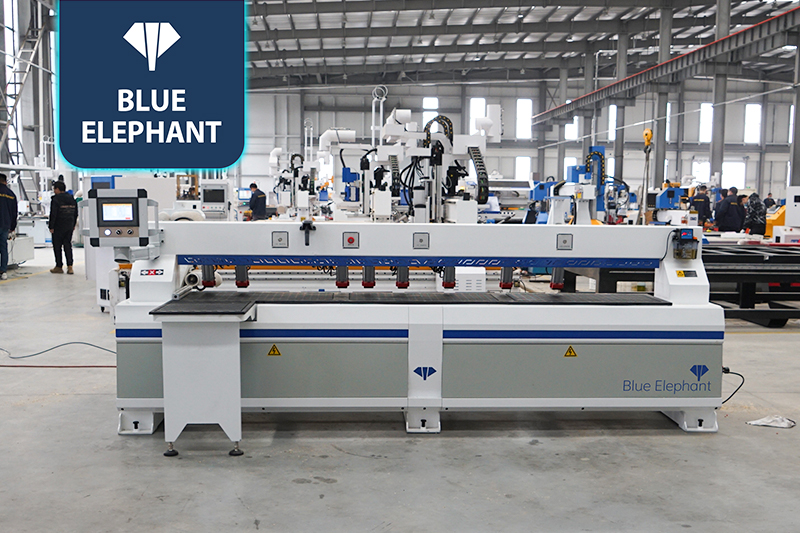

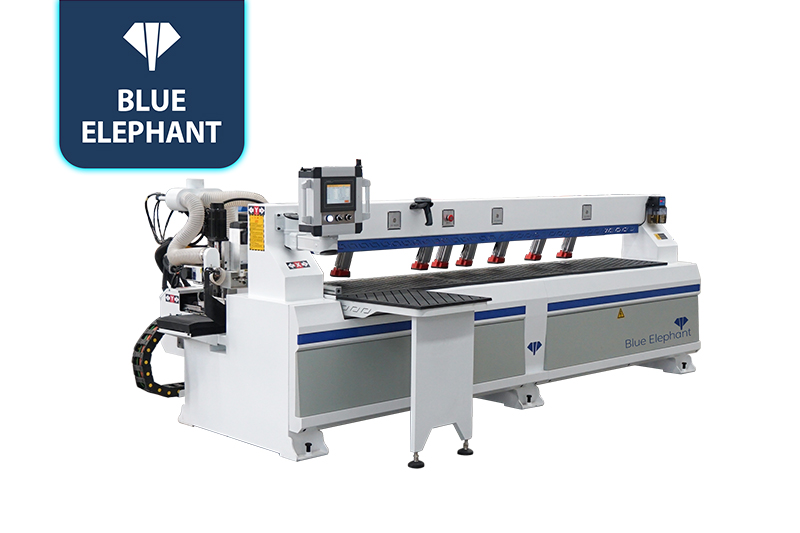

Best Side Hole Drilling Machine with Saw Spindle for Sale
☆This wood drilling machine can complete three-in-one side holes, dowel holes, blind holes, through slots, and slots for four kinds of invisible parts. The high-power saw spindle with a diamond saw blade can provide high processing speed and good precision.
Wood Drilling Machines Video
Features
- The wood drilling machine is provided with two drill bits and a saw blade, which can make various side holes and slots for the invisible connectors.
- Its customized motion control system has good stability and precision.
- The custom limits provide safety protection for the processing.
Parameters
| Model | ELE300 |
| Spindle | 2.2kw Changsheng air cooling spindle |
| Saw spindle | 2.2kw JST spindle |
| Spindle speed | 0-18000RPM/MIN |
| Traveling speed | 10-120 m/min |
| Working speed | 10-80 m/min |
| Effective travel of table | 2800 mm |
| Height of table | 750 mm |
| Drive and motor | WEIDE servo motor and drive |
| Sensor | BANNER |
| Controller | QIYUE |
| Guild | #20 square rail |
| Rack | Taiwan JUELI |
| Screw | TBI |
| Electrical elements | Schneider Electric |
| Whole size | 3600*1250*1300mm |
| Whole weight | 1100kg |
Application
Side drilling machines are mainly used to drill side holes or make slots or grooves on the side surface of wooden panels. It is designed with a simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blades that they have. All three models of side hole drilling machines have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.
