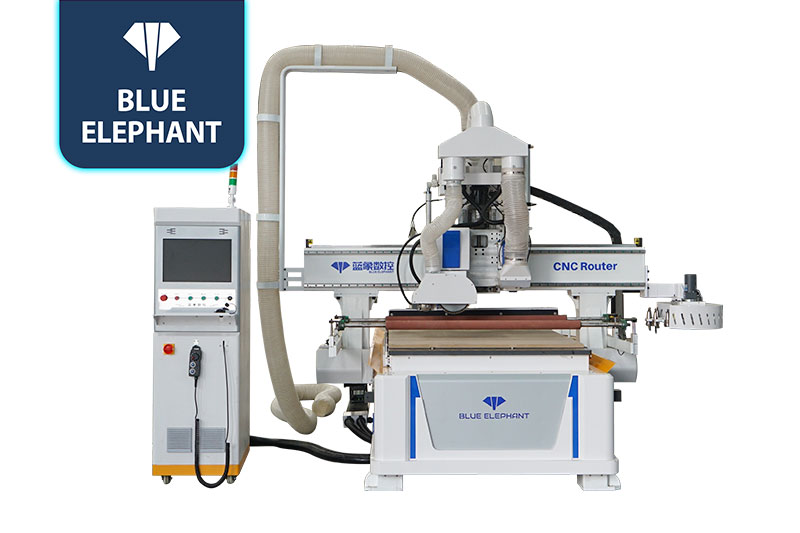

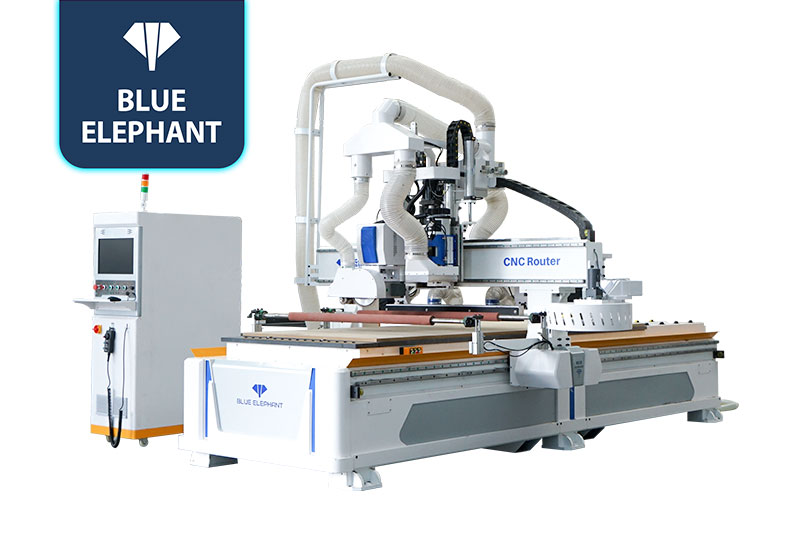

Best Selling Nesting CNC Router Cabinet Making Machine with Double Saws at Good Price
☆The most outstanding feature of this nesting CNC router is the two saws, which can cut panels at any angle. This ATC CNC woodworking machine is mainly used for sizing door panels and cutting panel furniture. All three axes use original linear square rails, which have good stability, long service life, and high precision.
Nesting CNC Machines Video
Features

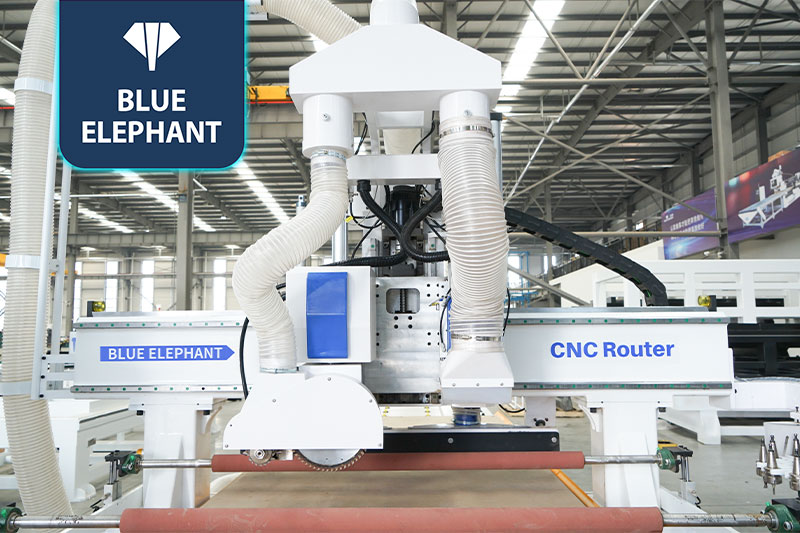

- It is equipped with two saws, a small one and a big one, for cutting panels in the opposition direction quicky without edge breakage.
- With a 9.0kW ATC spindle, it can cut and engrave boards with high efficiency and change tools automatically without stopping the cutting process.
- Optional automatic loading and unloading platforms can be selected to improve the work efficiency for furniture making.
Parameters
| Model | ELECNC1325 4×8 Auto Feeding Furniture making machine with 2 Saws |
| X,Y axis travel | 1300x2500mm,option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm |
| Spindle type | HQD9.0KW ATC air cooling spindles Cutting saws Two spindles + two Saws, Small saw for 3-5mm cut, the big saw can cut max 55mm thick panel; The cutting directions are opposite |
| Inverter type | 11kw Fuling inverter |

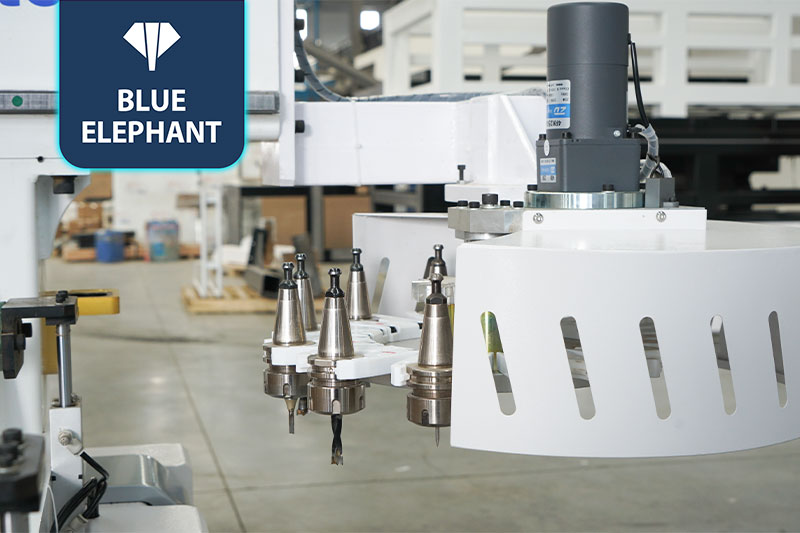

| Tool magazine | 12 pieces Linear type auto tool changer Option: Carrousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 60CBcontrol system |
| Driving system | Taiwan Syntec 1000W servo motor and drivers, total 5 sets |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy-duty welded steel frame |
| Work table | Full-page vacuum working table |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L Auto lubrication system |
| Tool calibration | Auto tool sensor |
| Cables | Germany Igus cables with CE, UL certificate |
| Compatible software | Artcam, Hisoon, etc |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
