Best Multihead CCD Cutting Machine for Sale in UAE

☆This machine can realize patrol cutting, cnc engraving, drilling, and milling. It is suitable for diversified processing needs.

CNC Router Machines Video

features

  • Equipped with 3 machining spindles, it can automatically switch according to the machining requirements.
  • Equipped with 850W Leadshine AC servo motor, it has the features of high power and high precision.
  • With multiple functions, it is suitable for various options.

Parameters

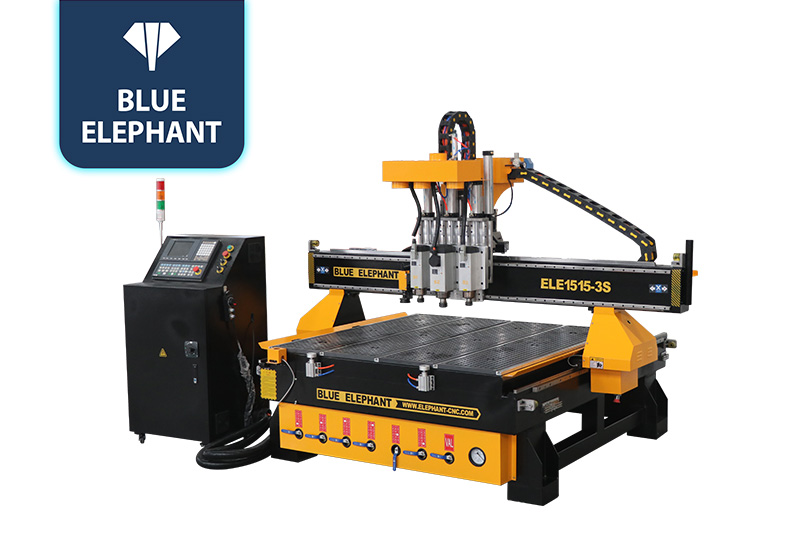

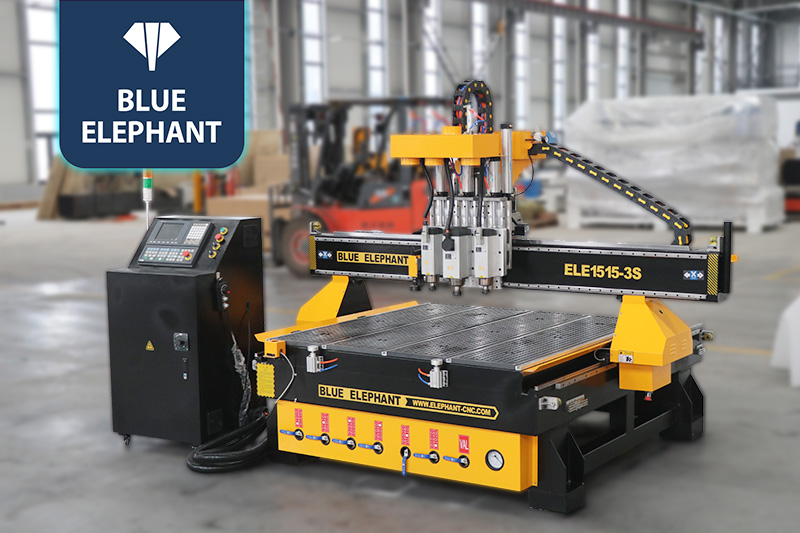

Model ELECNC1515-3S+CCD
X,Y axis travel 1525*1525mm, option: 1300*2500mm; 1500*3000mm, 2000*3000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, etc.
Spindle type 6KW HQD spindle*1, 3.5KW HQD spindle*2, 18000rpm
Inverter type 7.5kw
Tool magazine No tool magazine
Tool holder with collet ER32 collet and ER25 collect: φ4, φ6, 1/8, 1/2

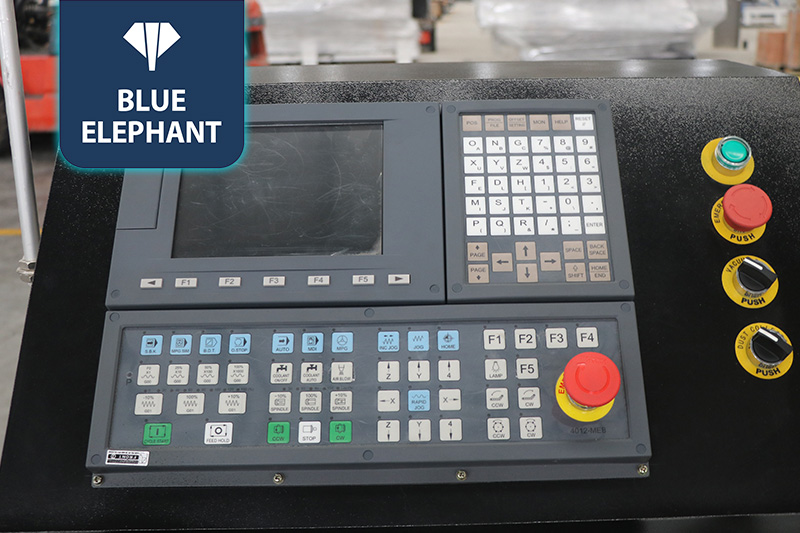

Control system Taiwan SYNTEC /LNC controller
Driving system 850w Leadshine AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer Optinal
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw

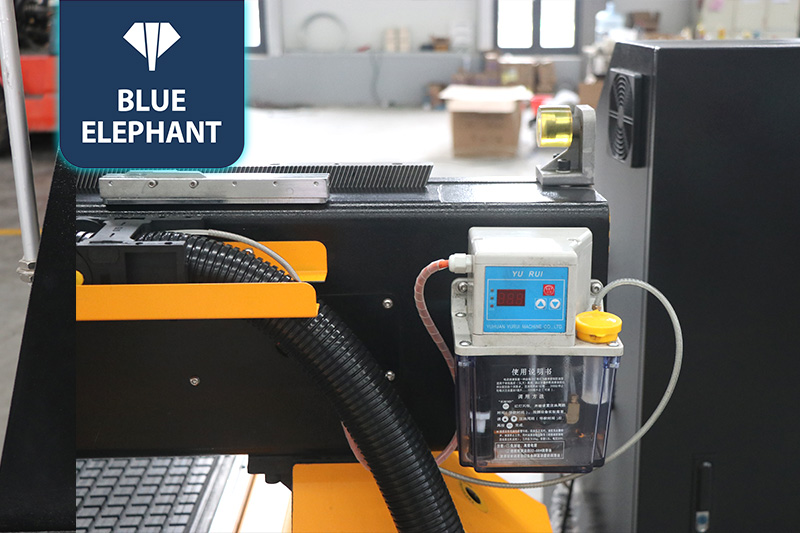

Lubrication system Automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Powermill, UG, Alphacam, Fusion 360, etc
Command language G Code & M Code
Traveling speed 50m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
