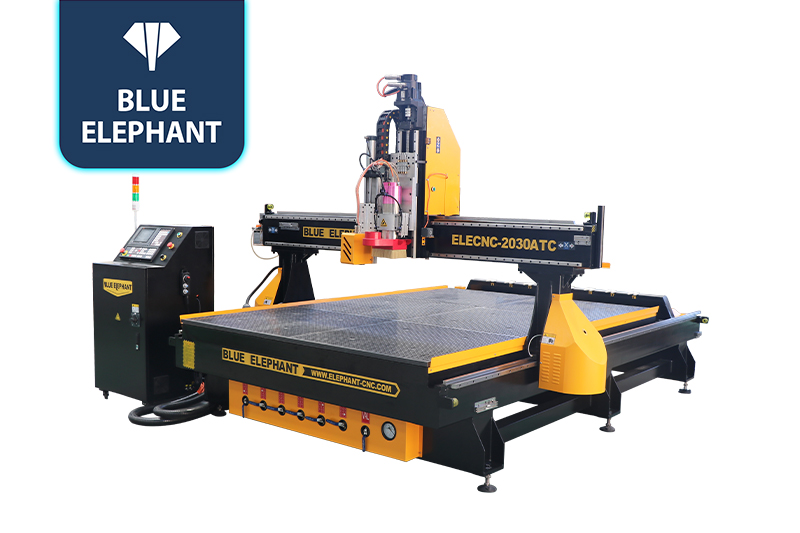

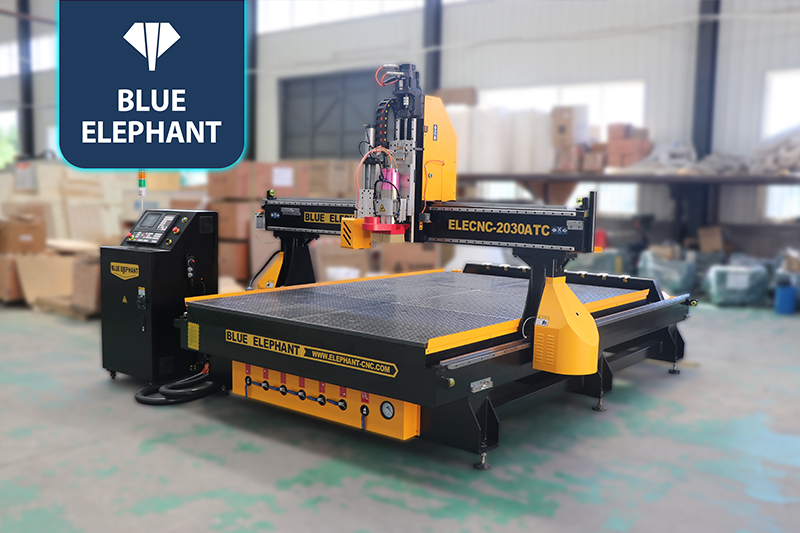

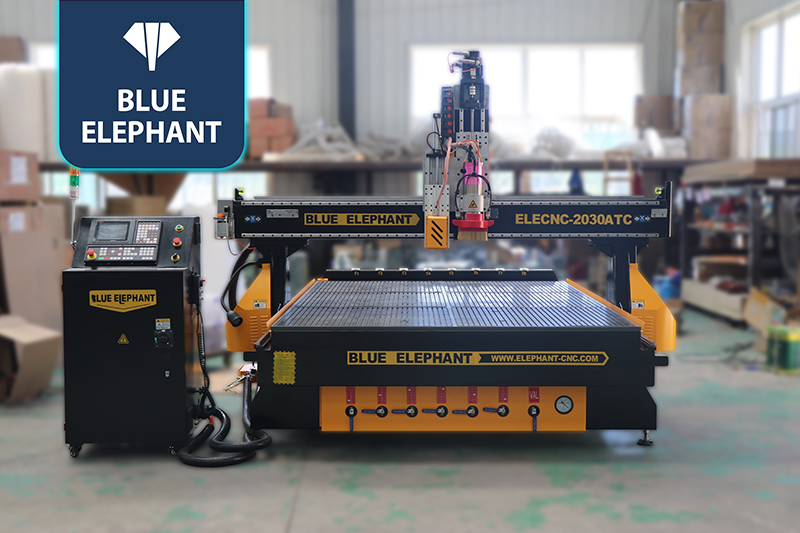

Best Flatbed ATC CNC Digital Cutter at Good Price in Russia
☆ATC CNC router with EOT-3 Oscillating Knife makes woodworking automatically, which helps the man out of the manual operation and saves much time.
Digital Cutting Machines Video
features
- With EOT-3 oscillating knife cutter, it meets the cutting needs of leather, carpet, carton, cardboard, rubber, etc.

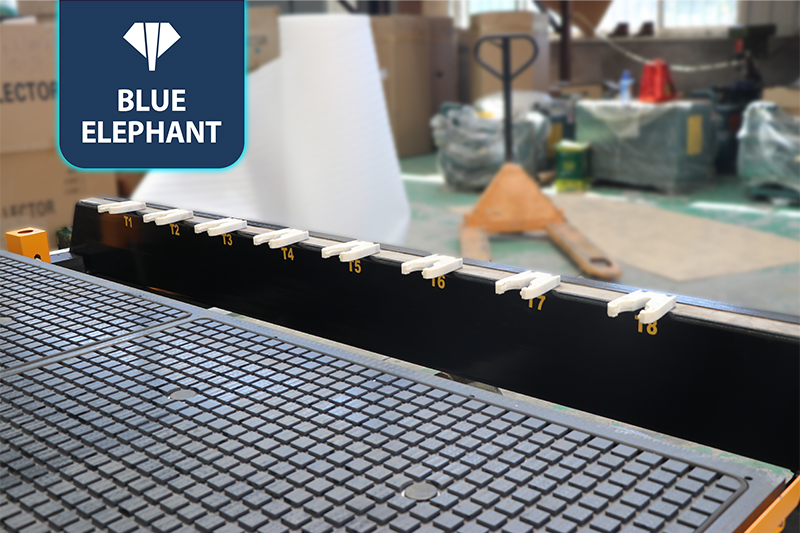

- Using a linear automatic tool changer, it can fast and automatically change different tools to make various products.
- All the machine configurations can be customized according to your needs.
Parameters
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000x3000mm, option: 1300*2500mm; 1500*3000mm; 2100*4000mm, etc. |
| Z axis travel | 500mm, option: 200mm, 300mm, 400mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan LNC controller, option：Taiwan Syntec |
| Driving system | 850w Leadshine AC servo driver and 850w AC servo motor,4 sets. option:850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
