Best CNC Router Nesting Machine with Auto Loading and Unloading in Lithuania
☆With a C axis aggregate head, this CNC nesting machine can saw wooden boards with a saw blade in any angle. The independent rotary device is convenient and flexible to use to process various cylindrial workpieces. This wood nesting machine is a perfect choice for furniture makers.
Nesting CNC Machines Video
Features

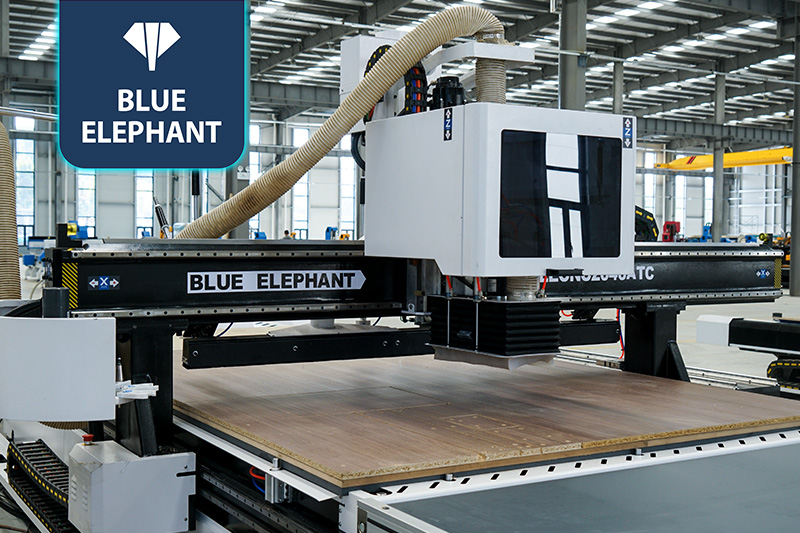

- The aggreated head on the C axis of this nesting CNC machine can saw panels at any angles, meeting the cutting demands of various custom furniture.

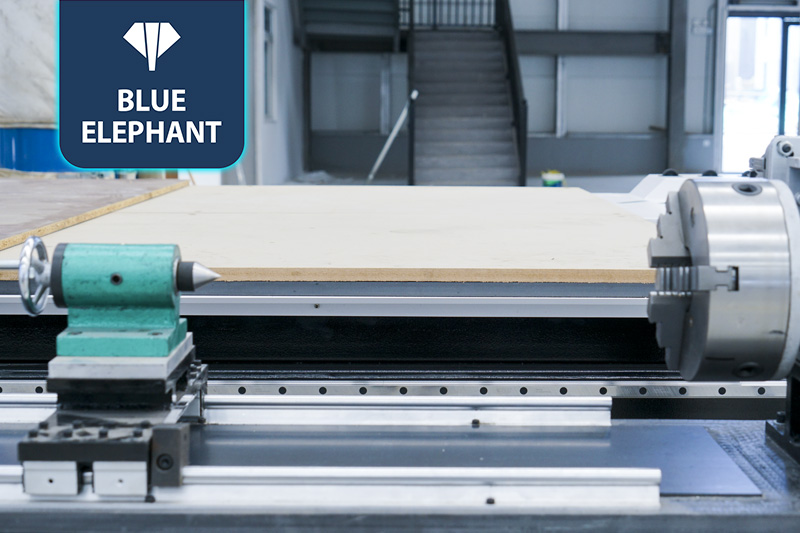

- It is equipped with an independent and parallel rotary device, which enables this machine to engrave and carve cylinders, sticks, rods, and other cylindrical workpieces.

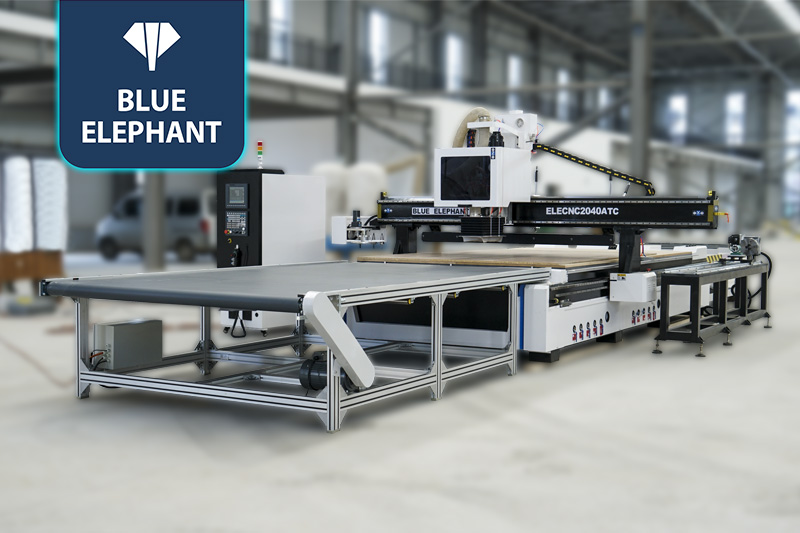

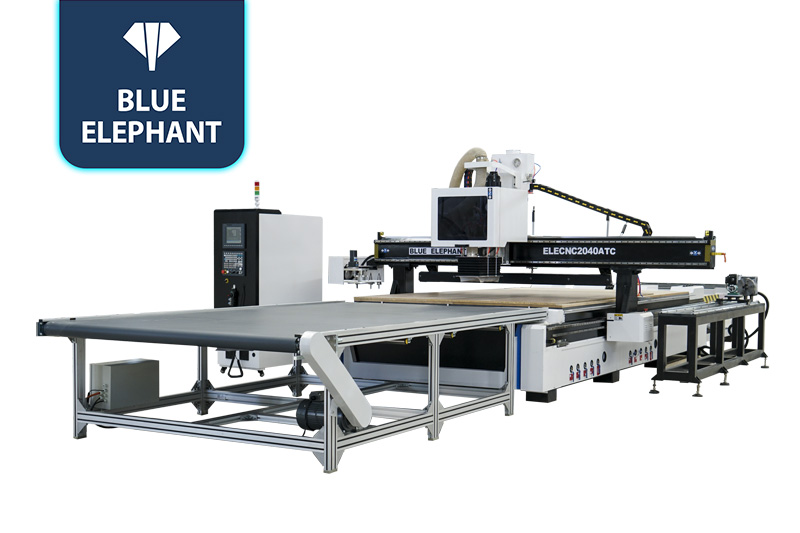

- Automatic loading and unloading platforms together with the ATC function improve working efficiency greatly.
Parameters
| Items | Parameter |
| Model | ELECNC-2040ATC |
| Working area | 2000x4000mm |
| C axis+aggregate head | Italian HSD C axis with an aggregate head |
| Spindle | Original ATC 9.6KW Italy HSD spindle |
| Spindle speed | 24000RPM |
| Motor and drive | Japan YASKAWA 850W servo motor and 1000W drivers |
| Control system | Taiwan SYNTEC 21MA-E control system |
| Inverter | Taiwan Delta 11KW |
| Reducer | Japan Shimpo reducer |
| Machine Frame | New type thicker and bigger heavy duty |
| Working table | Entire vacuum work table |
| Tool Magazine | 8 pieces with Carousel Tools Changer |
| Cooling System | Air cooling |
| Lubrication system | 1.5L Automatic lubrication system for rails |
| Tool sensor | Automatic tool sensor |
| Voltage | 380v 3ph 50hz |
Application
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
