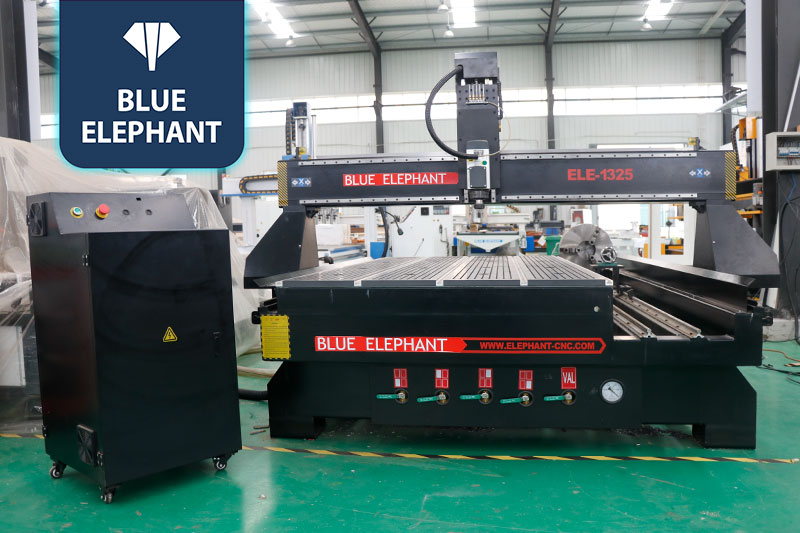

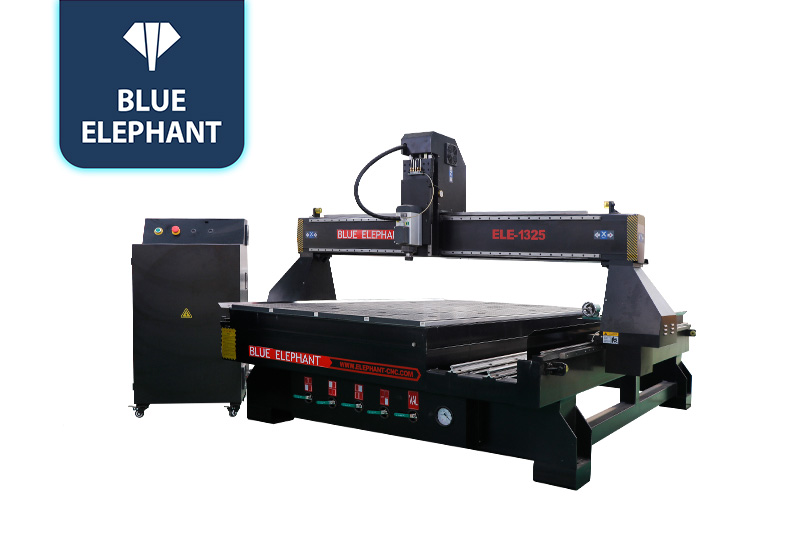

Best 4th Axis CNC Router Machine for 3D Engraving in Russia, Australia
☆This is one of the best-selling rotary axis CNC routers for carving and engraving 3D parts in the woodworking, decoration, and craft industries. It can process both 2D and 3D products with fast speed and high precision. It’s quite popular with small workshop keepers and individual woodworkers.
Rotary Axis CNC Router Machines Video

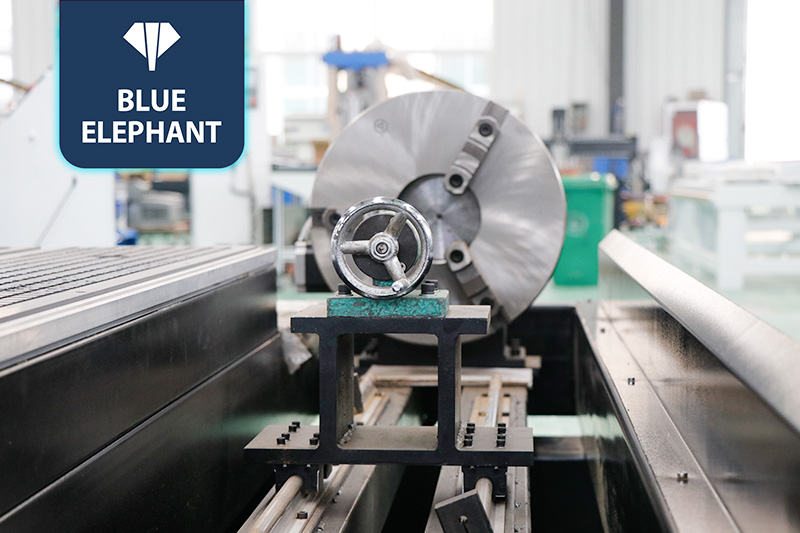

- The rotary axis is installed beside the worktable and used to carve and engrave cylindrical parts, such as handrails, balusters, furniture legs, building columns, posts, etc.
- Its new-type big square tube welded structure is rigid and strong, preventing the machine from vibration and deformation during operation.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x300mm |
| Table Surface | Vacuum and T-slot working table |
| Structure | New type big square tube welded structure |
| X, Y Structure | Rack and Pinion Drive, Taiwan HIWIN Linear guide Rail |
| Z Structure | TBI Ball Screw |

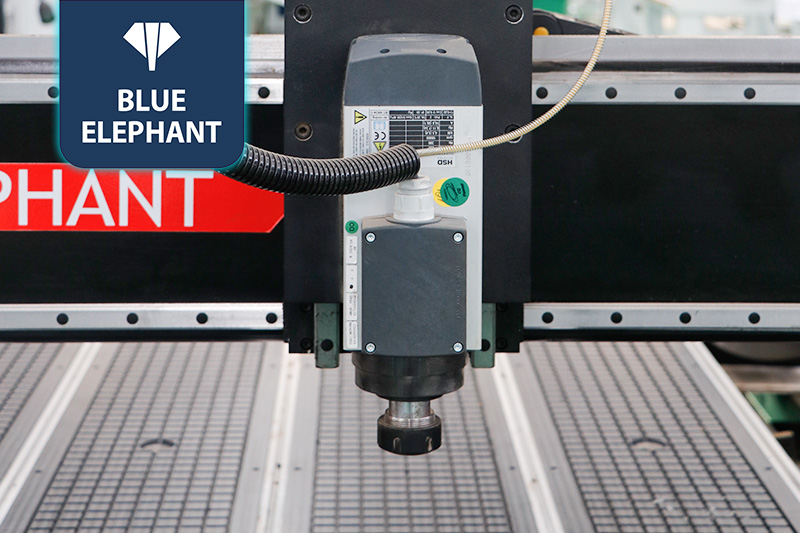

| Spindle Power | 4.5kw Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Driver and Motors | FL118 Stepper motor and YAKO driver |
| Working Voltage | AC220V,60Hz,3PH |
| Command Language | G Code |
| Operating System | Mach3 4 axis control System |
| Computer Interface | USB |
| Rotary device | 400mm diameter*2000mm length |
| Software Compatibility | ARTCAM Software |
| Dust collector | 1.5kw new type double packet dust collector |
| Vacuum pump | 5.5kw water circulation vacuum pump |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
