Best 4Axis CNC Wood Router with ATC on Big Sale

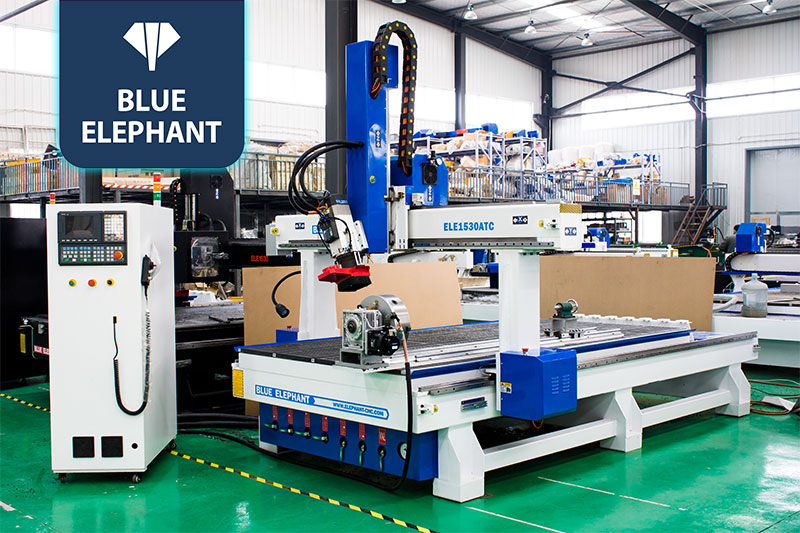

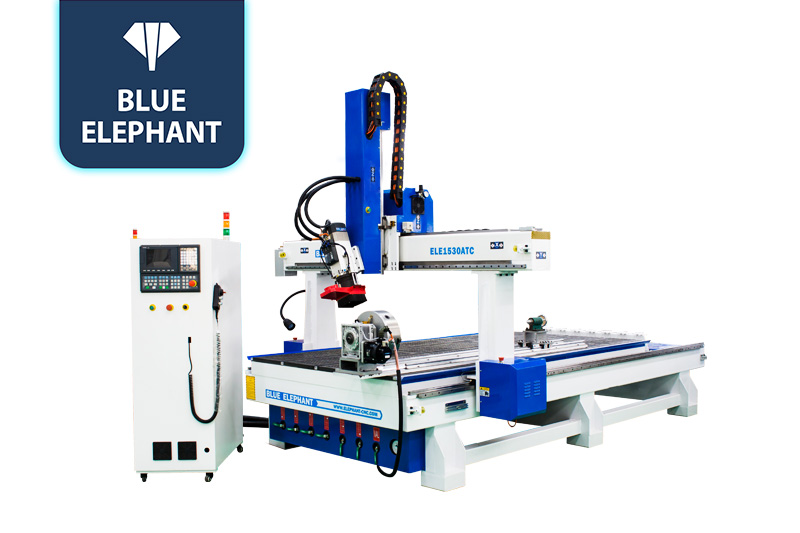

☆This multi-functional CNC router machine is provided with a rotary spindle as well as a rotary device. So it can process various 3D workpieces with wood, styrofoam, and other materials. It adopts the SYNTEC control system, which is easy to learn and operate due to its friendly human interface.
Rotary Axis CNC Router Machines Video
Features
- The CNC router machine can carve and engrave thick and tall 3D workpieces due to its rotary spindle and the high Z-axis travel.

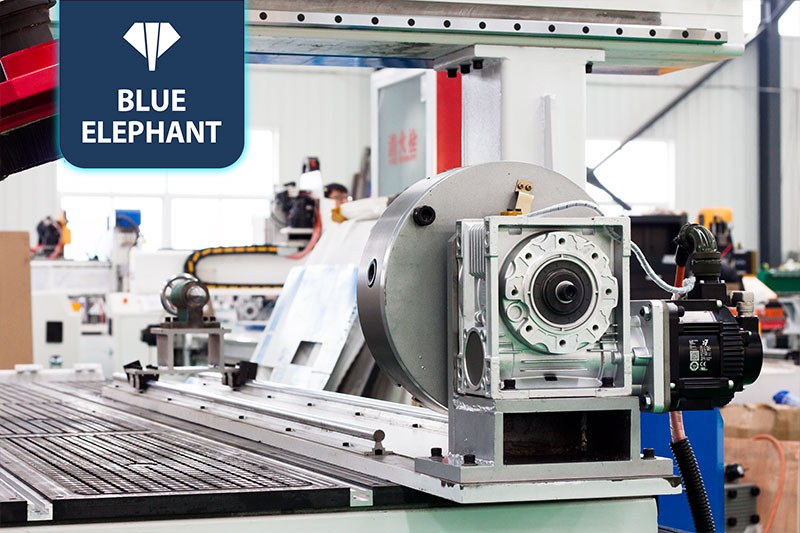

- It is equipped with a movable rotary device, which can be fixed on or removed from the worktable according to customers’ demands.
- This machine also has the automatic tool changing function to reduce the labor force and improve work efficiency.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1500x3000x500mm |
| Table Size | 1500×3000mm |
| Table Surface | Vacuum and T-slot working table |
| Frame | New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry |
| X, Y Structure | Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail |
| Z Structure | Sweden ABBA #25 Linear Square Rail and TBI Ball Screw |
| Spindle Power | 9kw Italy HSD ATC air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850W Japan YASKAWA servo motors and drivers |
| Inverter | 11kw Taiwan DELTA inverter |
| Working Voltage | 380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH) |
| Command Language | G Code |
| Operating System | Taiwan SYNTEC 4 axis control System |
| Computer Interface | USB |
| Reducer | Japan Shimpo reducer |
| Vacuum pump | 4KW German baker pump |
| Collet | ISO30 |
| Software | Artcam |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
| Lubrication system | Automatic lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Rotary device | The rotary device can move for optional,
diameter: 200mm, length: 2000mm |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
