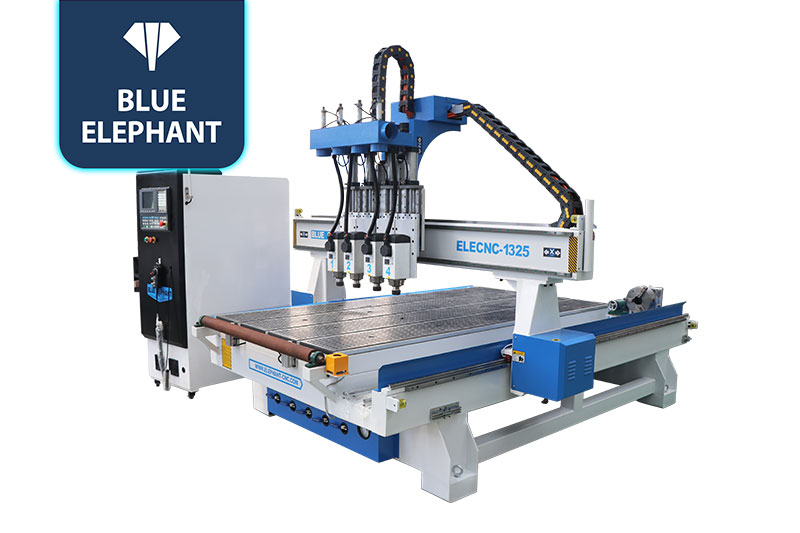

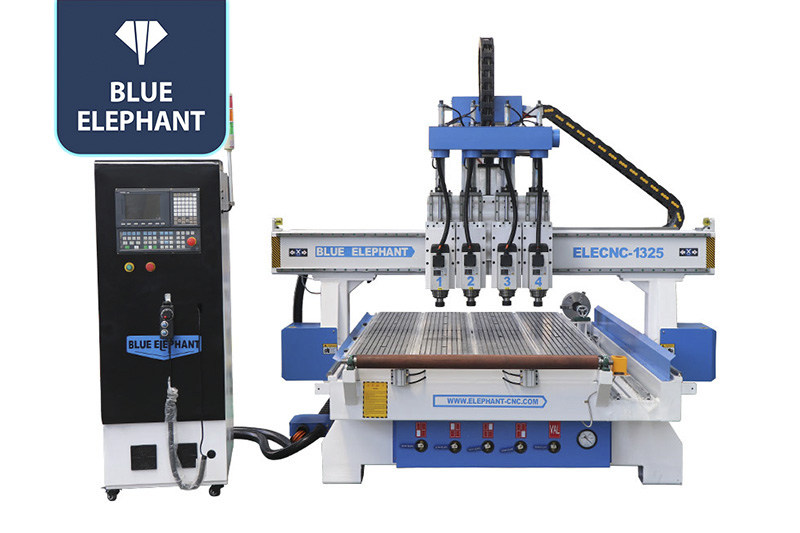

Best 4 Processes Rotary Axis CNC Router for Price
☆This is a multi processes CNC router that is suitable for the cutomers who need to change a variety of tools.
CNC Router Machines Video
features
- No manual tool changing is required during the machining process, and the program is automatically executed.
- Designed with the 10-12mm steel plant heavy duty body, the stable machine operation can be ensured.
- If you want, the machine working table size of 1300*2500mm can also be changed to your suitbale processing size.
Parameters
| Model | ELECNC-1325 |
| X,Y axis travel | 1300x2500mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |

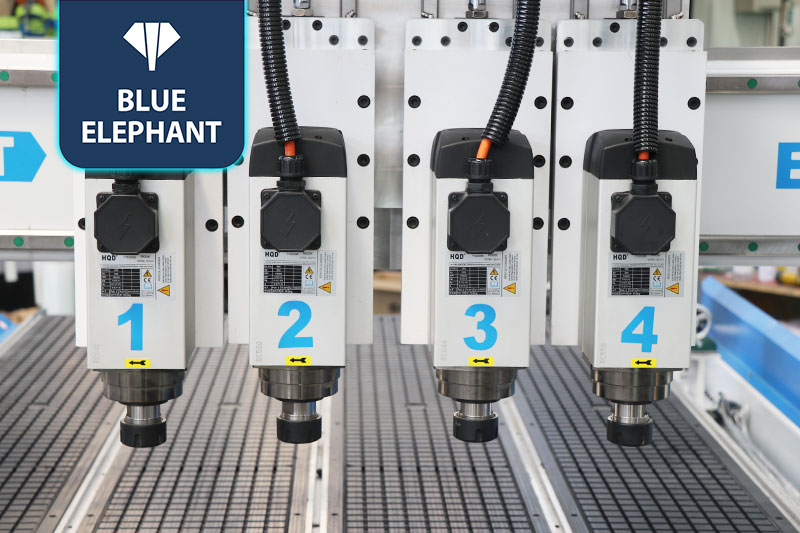

| Spindle type | 3×3.5kw HQD air cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Rotary device | 300mm diameter rotary device |
| Control system | DSP A123, option: Japan Syntec 60we, Taiwan LNC 2200 |
| Driving system | Stepper FL118 motor and drivers. option: 850w Japan Yaskawa servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | 10-12mm steel plant heavy duty body |

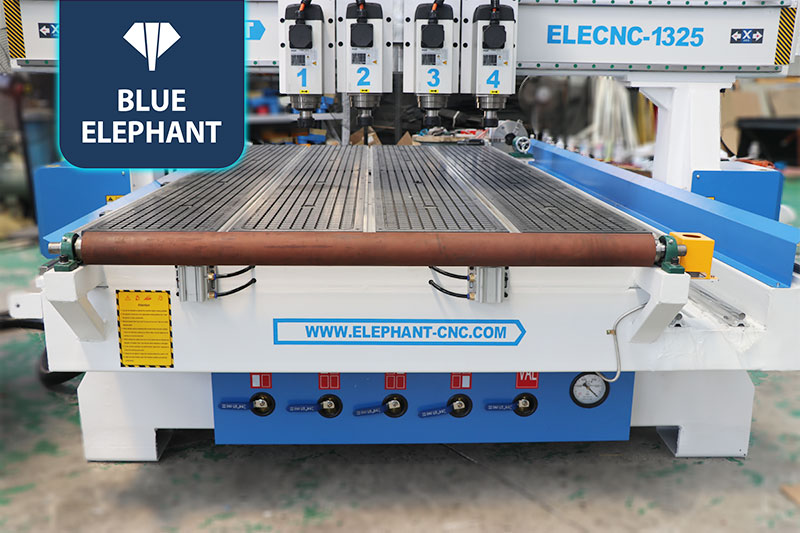

| Work table | Vacuum & T-slot work table |
| Positioning cylinder | Optional: 5 pieces (X2, Y3) |
| Linear guide | 20# Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
