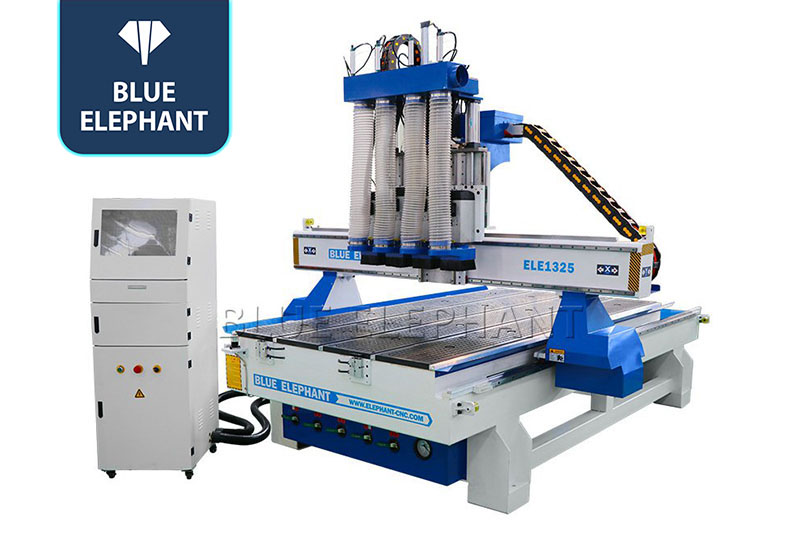

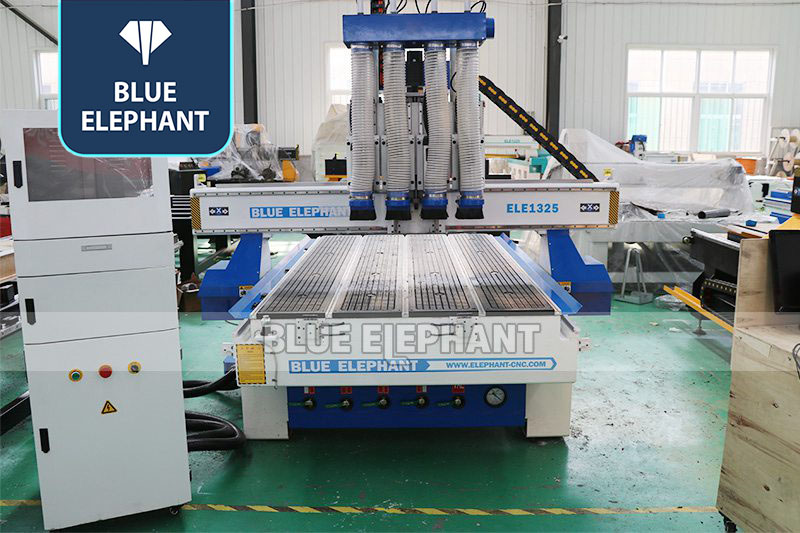

Best 1325 Multi-head CNC Router Machine for Sale in the Singapore

☆It is very similar to the ATC CNC router for its 4 spindles. And this multi-spindle c and c machine can help you finish many works by different tools in one time automatically.

Get Details & Prices

CNC Router Machines Video

Get More Videos

features

It has a wide application in the professional furniture factory cabinet or closet making machine.
With 4 independent spindles, it has very high working efficiency and can save a lot of time.
It has cheaper machine price than the ATC CNC router, but has the same function as the later.

Parameters

Descriptions	Parameters
Model	ELECNC-1325-4S
Working area	13002500200mm
Control system	Original Wei Hong PM95A control system

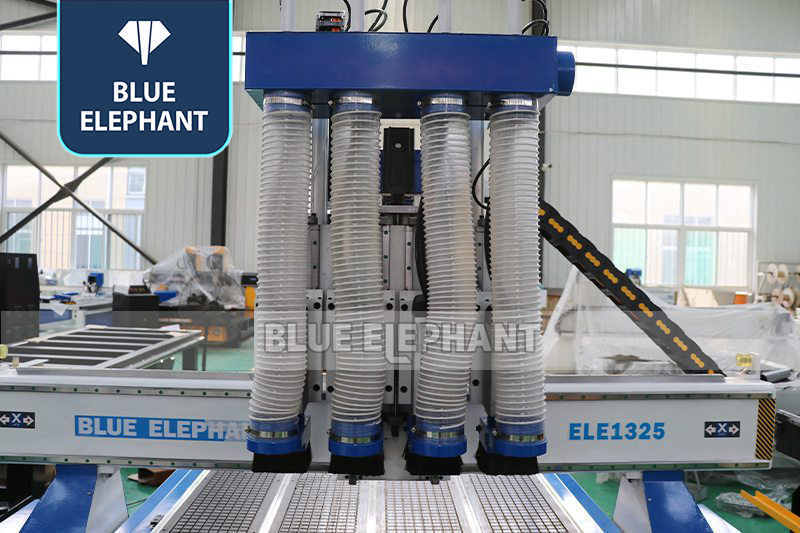

Spindle	2 sets 4.5kw and 2 sets 6kw China famous brand air cooling spindle
Spindle speed	0-24000RPM
Inverter	7.5kw Fuling Inverter
Motor and driver	Leadshine 2206 Hybrid Servo and drive,Japan Shimpo reducer
Voltage	380V, 3ph, 50Hz (optional)
Table structure	New type thicker and bigger heavy duty welded frame and gantry
Table surface	Vacuum T-slot working table
X,Y axis transmission	Helical rack and pinion drive for X,Y axis, Taiwan HINWIN 20# linear guide
Z axis transmission	Taiwan HINWIN 20# linear guide, Taiwan TBI 2510 ball screw for z axis
Vacuum pump	7.5kw water type circulation vacuum pump
Lubrication system	Manually
Tool Sensor	Automatic tool sensor

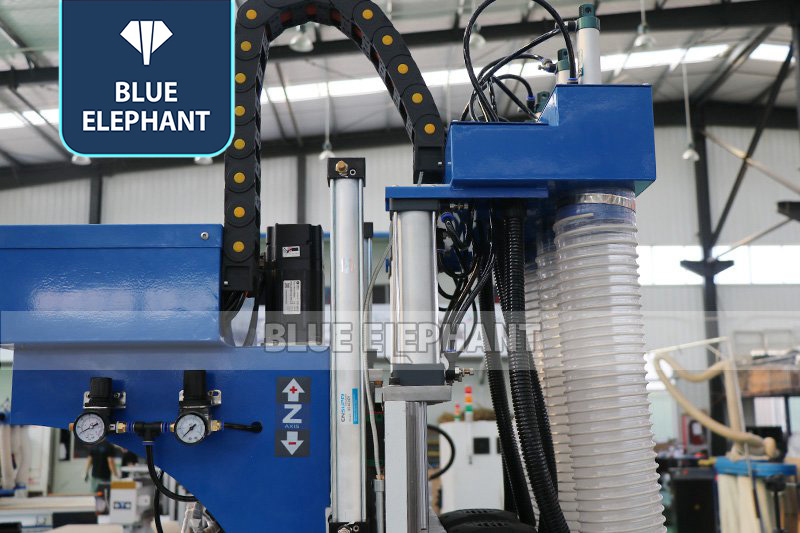

Positioning Cylinder	6 sets
Dust Collector	New type double bags dust collector 3.0kw

Get More Parameters

Application

Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.
