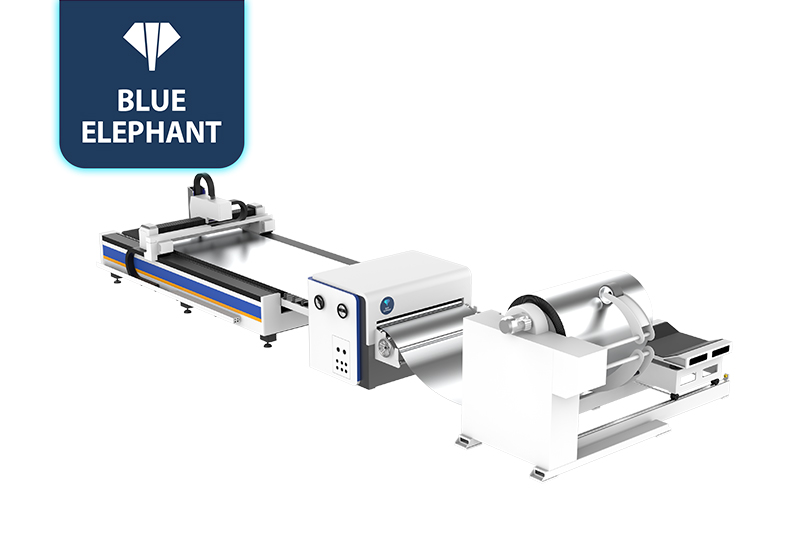

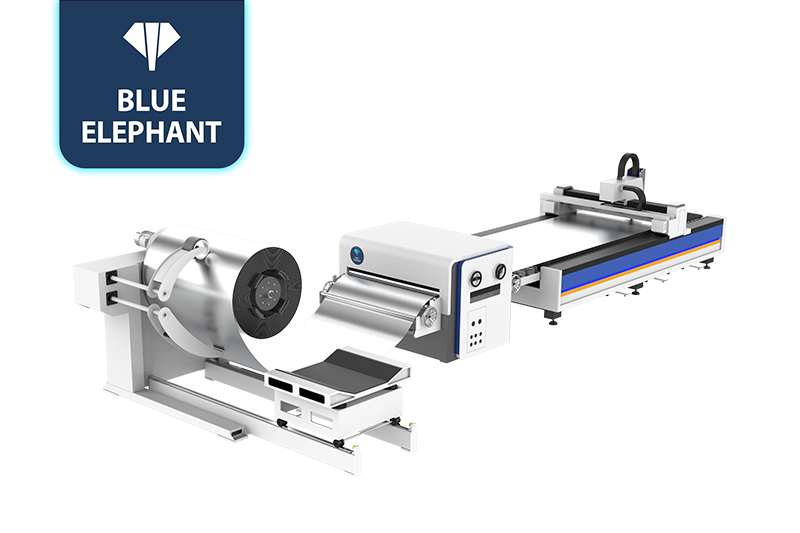

Automatic Fiber Laser Coiling Machine for Sale

☆This automatic loading fiber laser cutting machine is specially designed to meet the intensive and integrated production. It can fully improve material utilization rate, shorten production cycle, save labor cost, reduce production investment, and mold consumption.

Laser CNC Machines Video

Features

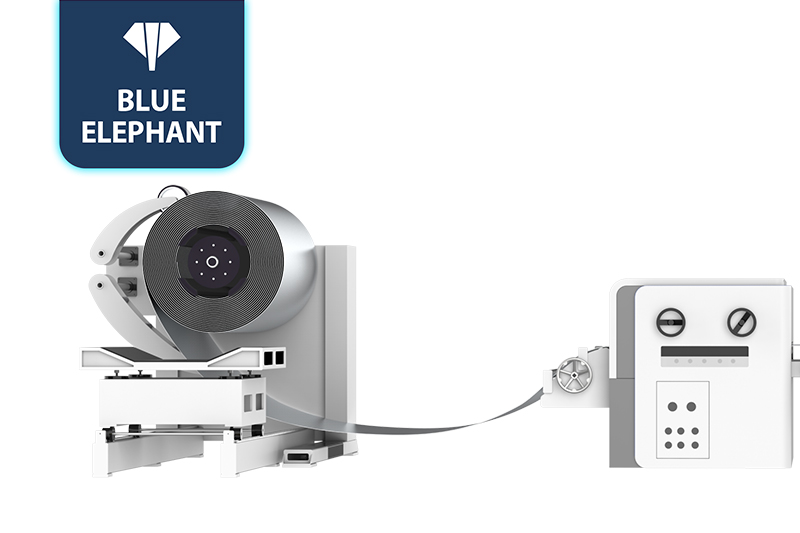

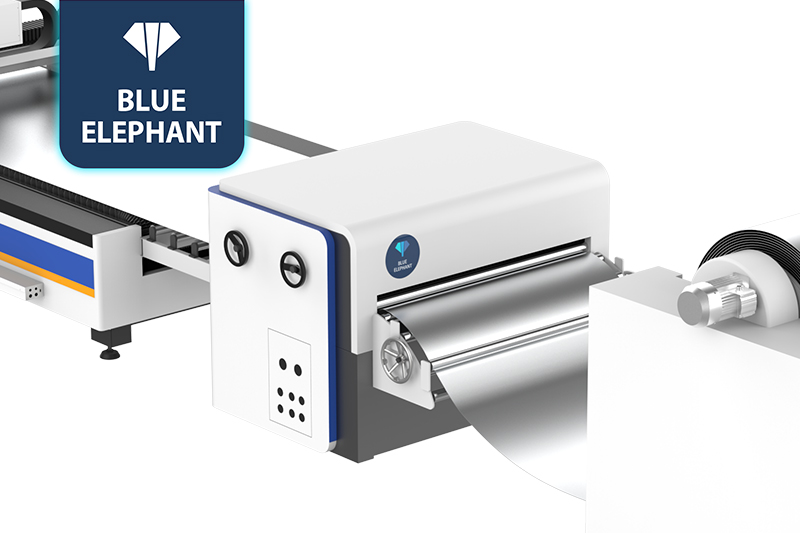

  • It can realize unwinding, flattering, feeding, and cutting in one, which greatly improves the continuity of production.
  • Through the conveyor belt and the adjustable limiter, the processed plates can be unloaded quickly.
  • The automatic typesetting function not only ensures high material utilization rate, but also makes the cut product smooth.
pro-bed

The Tube Welded Bed

High strength, not easily deformed

Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.

More stable

We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry
pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-1530FC ELECNC-1540FC ELECNC-1545FC
Working area (mm) 1515*3030 5360*2250 5900*2250
Coil sheet thickness 0.8-2mm 0.8-2mm 0.8-2mm
Machine weight 6.2t 6.7t 6.9t
Worktable Rolling blade Rolling blade Rolling blade
Max. acceleration 1.5G 1.5G 1.5G
Positioning accuracy ±0.05mm ±0.05mm ±0.05mm
Repositioning accuracy ±0.03mm ±0.03mm ±0.03mm
Laser power 1kW – 2kW 1kW – 2kW 1kW – 2kW
Laser Multiple options Multiple options Multiple options
Focusing method Auto/manual Auto/manual Auto/manual
Machine bed Tube welded bed Tube welded bed Tube welded bed
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Relay Schneider Schneider Schneider
Circuit breaker Schneider Schneider Schneider

Application

It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy.Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
