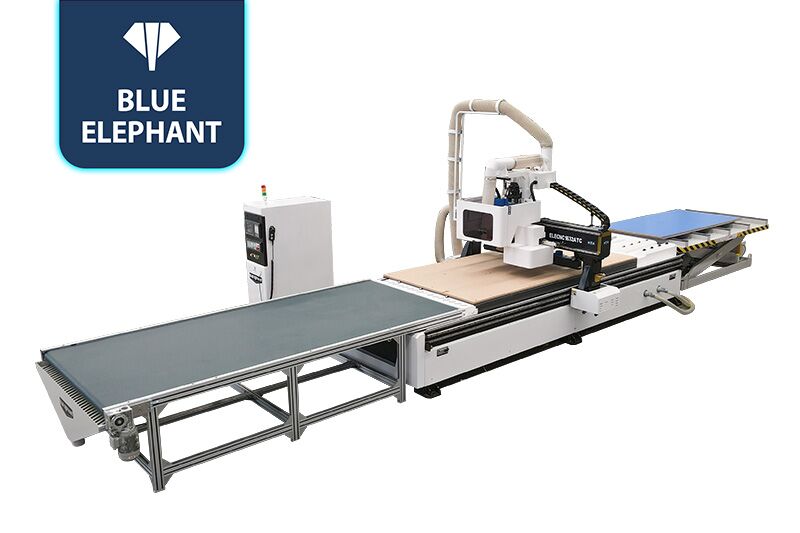

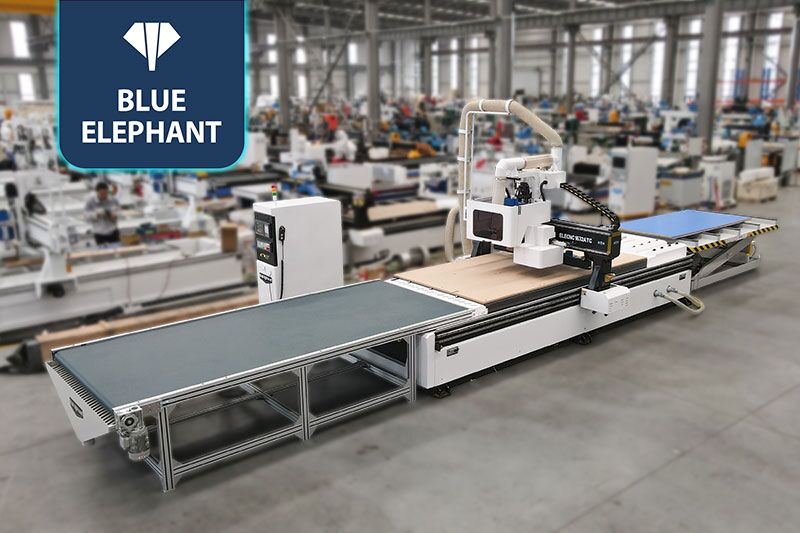

Auto Feeding ATC CNC Router for Furniture for Sale
☆The effective working size of 1600*3200mm is very suitable for processing 1220x2440mm wooden boards. Adopting a 9.6kW ATC spindle, it has a strong power to cut panels and can change tools automatically. Besides, the auto-feeding and unloading platforms improve work efficiency significantly.
Nesting CNC Machines Video
Features

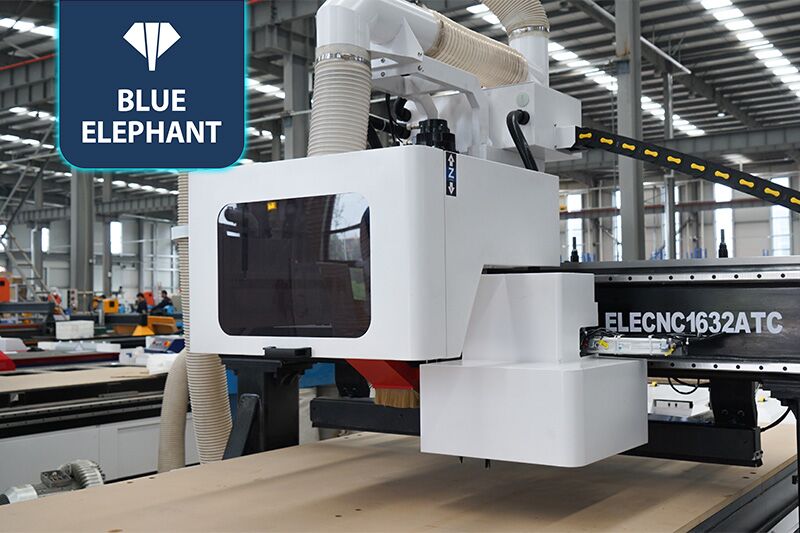

- It is equipped with a carousel tool magazine mounted beside the ATC spindle, which reduces tool changing time and saves human labor.

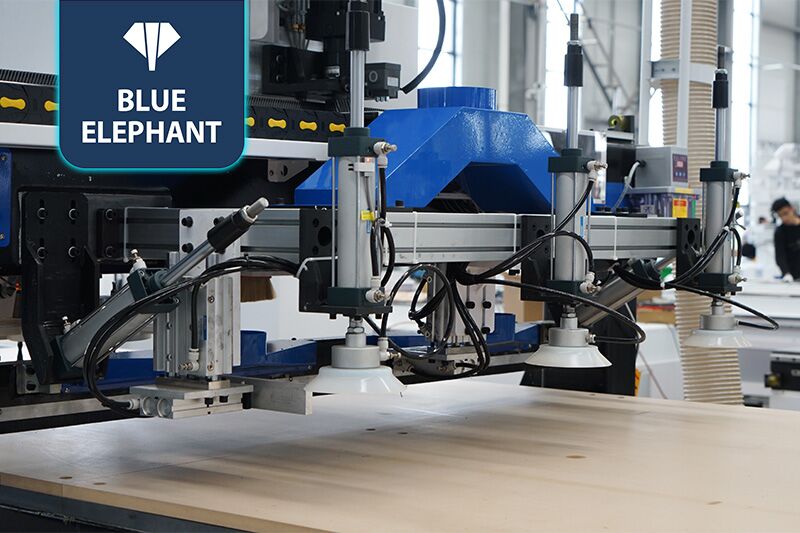

- The automatic loading device and positioning mechanism ensure high work efficiency and excellent machining accuracy.
- Its entire vacuum worktable has a strong adsorption capacity, fixing the wooden panels firmly on the worktable during processing, avoiding vibration and sliding.
Parameter
| Working area | 1600x3200x200mm |
| Spindle | 9.6kw Italian HSD ATC air cooling spindle |
| Spindle speed | 6000~24000rpm |
| Inverter | 11kW Taiwan Delta inverter |
| Tool magazine | Carousel tool magazine with 12 tools |
| Control system | Taiwan SYNTEC 60WE panel control system, M3 bus board control system |
| Motor and driver | 850W Japan YASKAWA servo motor, 1kw servo driver |
| Working Table | Entire vacuum work table,6 zones |
| limit switch | Japan OMRON limit switch |
| Lubrication system | Automatic lubrication |
| Voltage | 220V, 60Hz, 3 phase |
| Vacuum pump | 5.5kw Tongyou vacuum pump |
| X,Y,Z Transmission | Helical rack gear transmission for X,Y axis, Taiwan TBI ball screw for Z axis |
| X,Y,Z Rail | Taiwan PMI/ABBA square linear guide for all axis,#25 for X and Z axis,#30 for Y axis |
| Dust collector | Double bag dust collector, 7.5kw |
| Software Compatibility | Artcam/Aspire software |
| Guarantee | 12 months |
Application
Wood furniture industry： Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry： Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
