Best ATC CNC Router Digital Cutting Machine for Sale in Indonesia, Pakistan, Nauru

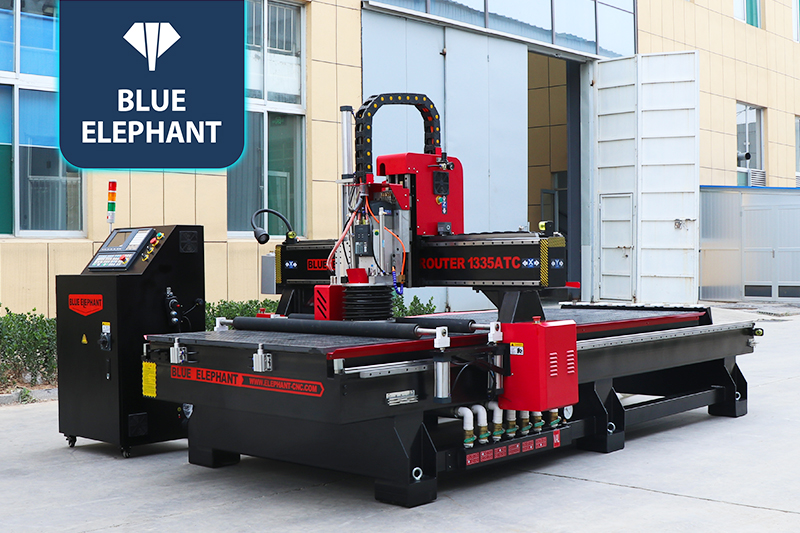

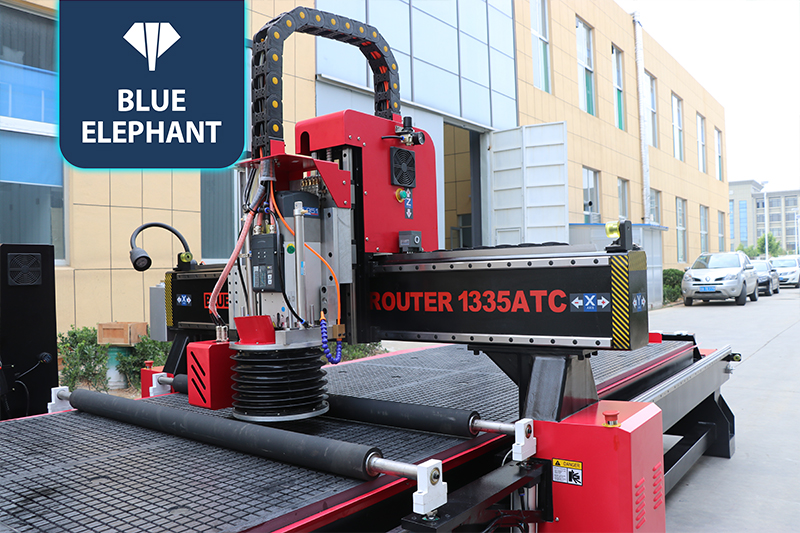

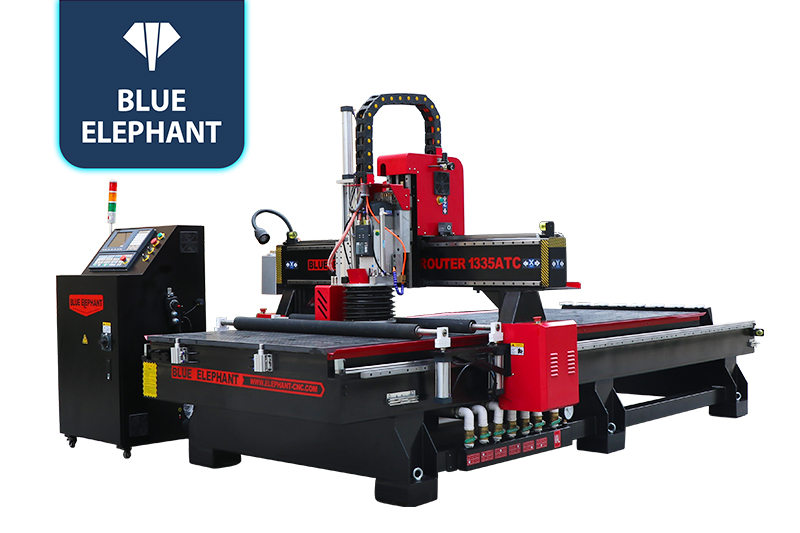

☆This is a custom ATC CNC woodworking machine with an oscillating cutter for the woodworking, advertising, craft, and decoration industries. Except for the basic functions, it also uses a digital cutter that vibrates up and down at a high frequency to cut fabric, sponge, leather, rubber, and other soft materials.

ATC CNC Router Machines Video

Features

  • The CNC machine is provided with a spindle and a digital cutter for processing various wood materials and flexible materials, such as MDF, plywood, melamine, leather, rubber, fabric, etc.
  • It adopts HIWIN linear square guide rails which have a large bearing capacity, stable operation, high precision, and long service life.
  • It adopts the SYNTEC control system, which has continued working function after power or tool breaks, and is easy to learn.

Parameters

Model ELECNC1335ATC
X, Y axis travel 1300x3500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
Drilling bank Optional

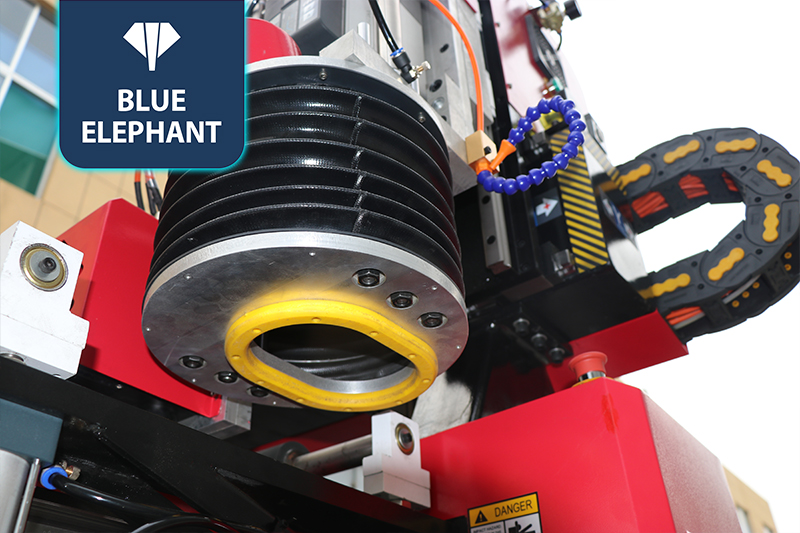

Tool magazine Linear type auto tool changer
Option: Carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC /LNC controller, option: Ncstudio
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy-duty body with quenching treatment
Work table Vacuum work table
Positioning cylinder 5 pieces (X2, Y3)
Linear guide Taiwan Linear guide with dust proof
Transmission X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
