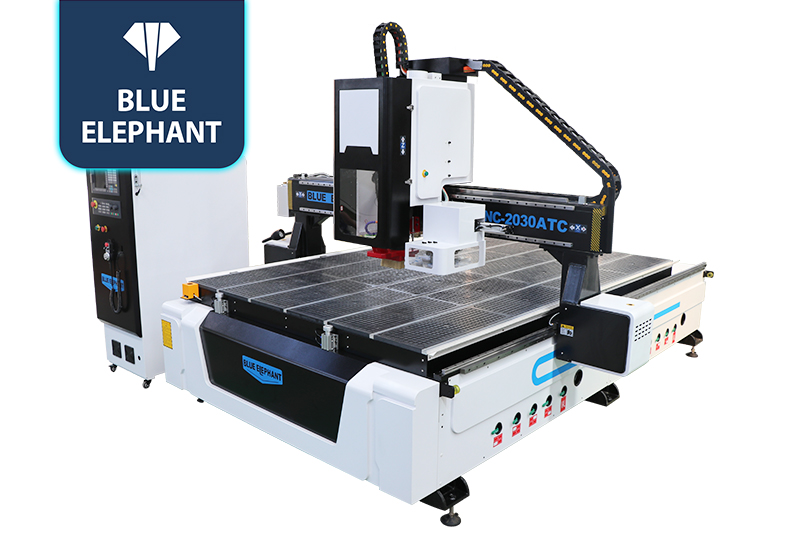

Heavy-duty Woodworking ATC CNC Router For Sale
☆This ATC CNC router machine has a sturdy steel construction for heavy-duty wood processing. Its automatic tool change function reduces non-productive time and improves work efficiency. Its table has a powerful vacuum clamping force, features a smooth transmission system and automatic lubrication system.
ATC CNC Router Machines Video
Features
- The sturdy steel structure enables the machine to perform heavy-duty machining for a long time without vibration and deformation.

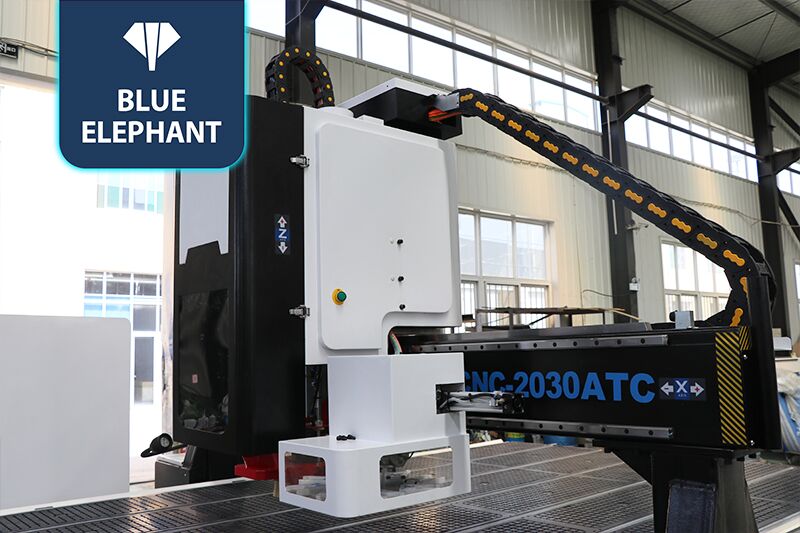

- The ATC is equipped with a rotary tool magazine next to the spindle, saving labor and improving work efficiency.
- The whole vacuum worktable has a strong adsorption ability to prevent the panel from sliding or moving during operation.
Parameters
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000*3000mm |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramid fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
