Hot Sale 1325 4×8 ATC CNC Router with Favorable Price for Sale to Keelung, Valencia Port
☆This is the best entry-level automatic tool changing CNC machine with a linear tool magazine carrying 6 tools to improve the woodworking efficiency. It is cost-effective in use due to its multiple functions and high efficiency.
ATC CNC Router Machines Video
Features
- Equipped with a 9kW air-cooled spindle, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.
- The whole vacuum worktable has a strong adsorption capacity to prevent the panel from sliding or moving during operation.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| Serial Number | S20190725W |
| Model | ELECNC-1325ATC |
| Working area | 1300*2500*200mm |
| Spindle | 9KW ATC HQD air-cooled spindle |
| Inverter | 11KW Fuling inverter |
| Tool magazine | 6pcs linear tool storage |
| Control system | Taiwan LNC with MPG handle wheel |
| Motor and driver | 850W Leadshine servo motor and 1KW Servo driver |
| Switch | Japan OMRON |
| Working Table | Aluminum T-slot &vacuum table |
| limit switch | Japan OMRON limit switch |
| Lubrication system | 1.5L Auto oil lubrication system |
| Voltage | 380V 3phase 60HZ |
| Vacuum pump | 7.5KW vacuum pump, two-stage, air-cooled, two impeller |
| X,Y,Z Transmission | Taiwan J &T Helical rack and gearbox, 1.25M, Taiwan PMI #25 Rail
Taiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505 |
| Cable | Shanghai Cardiff cable,CE, UL certification |
| Dust collector | Complete 1.5KW new type dust collector, CE certification, the vacuum suction is same as 4KW old type |
| Tool sensor | Auto tool sensor |
Application

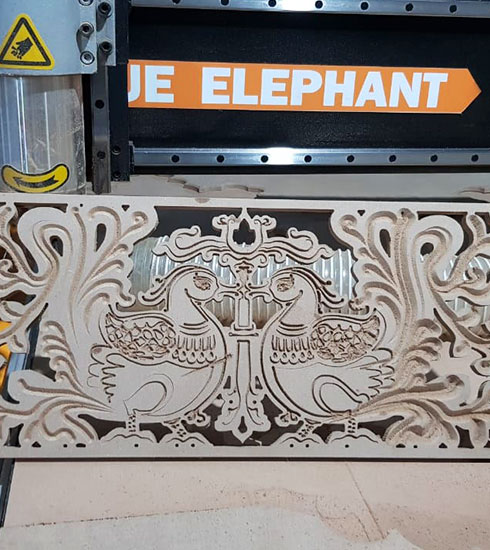

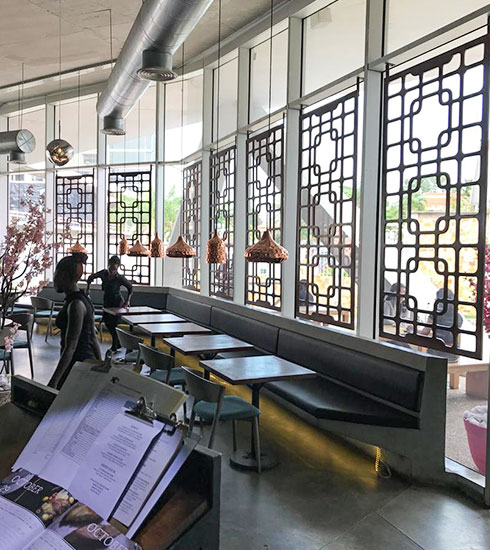

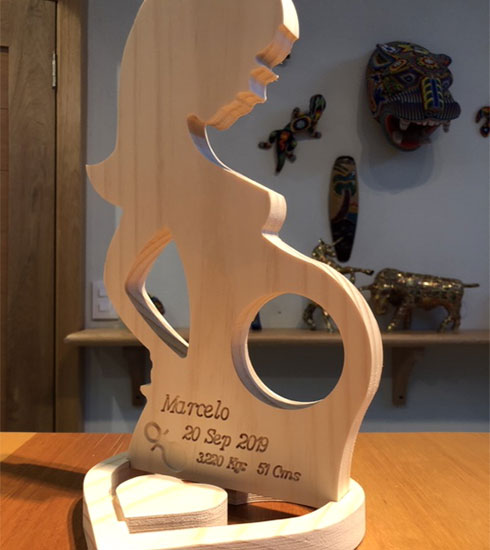

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
