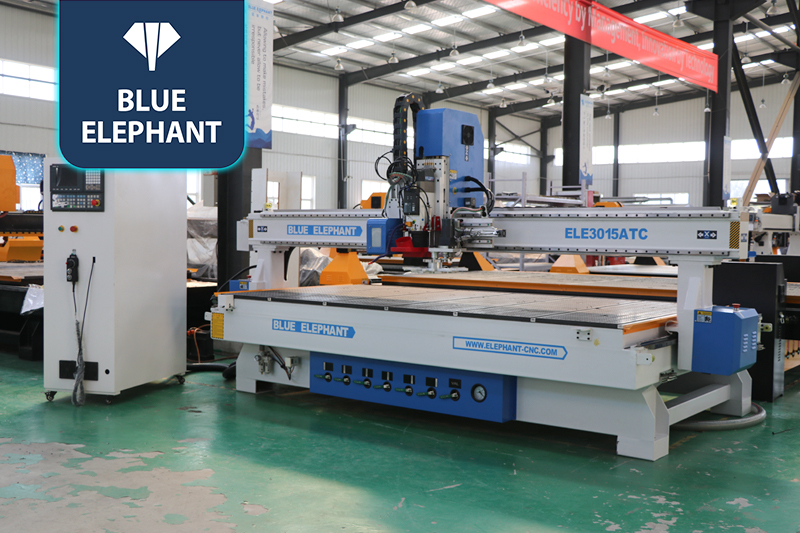

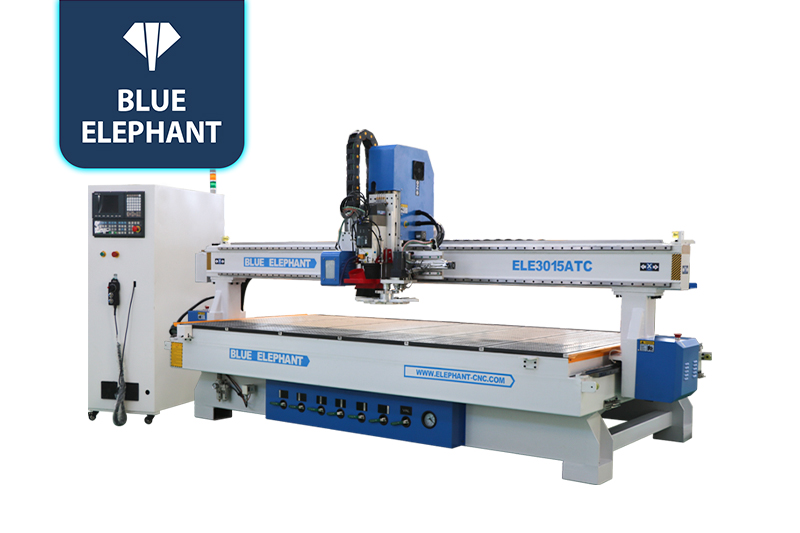

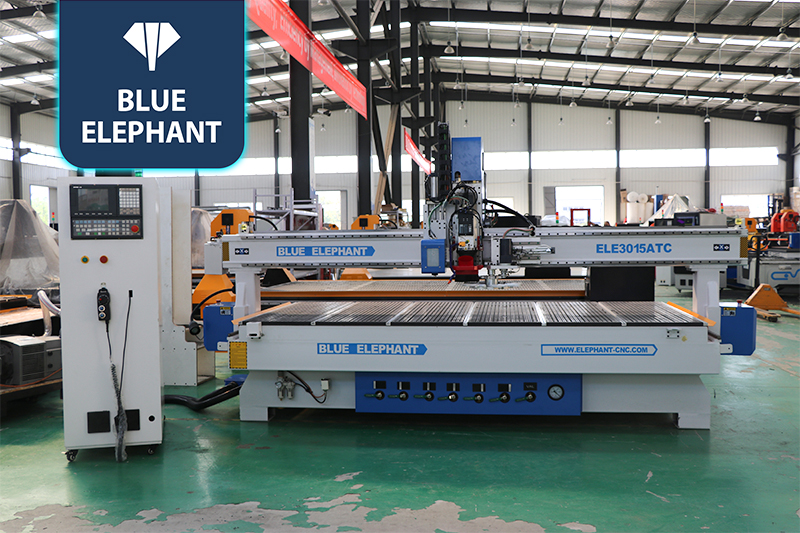

ATC 4 Axis CNC Wood Digital Cutter for Sale
☆This digital cutting machine is design with a 4 axis rotary spindle, which can swing ±90° to ensure more 3D and 4D requests.
features

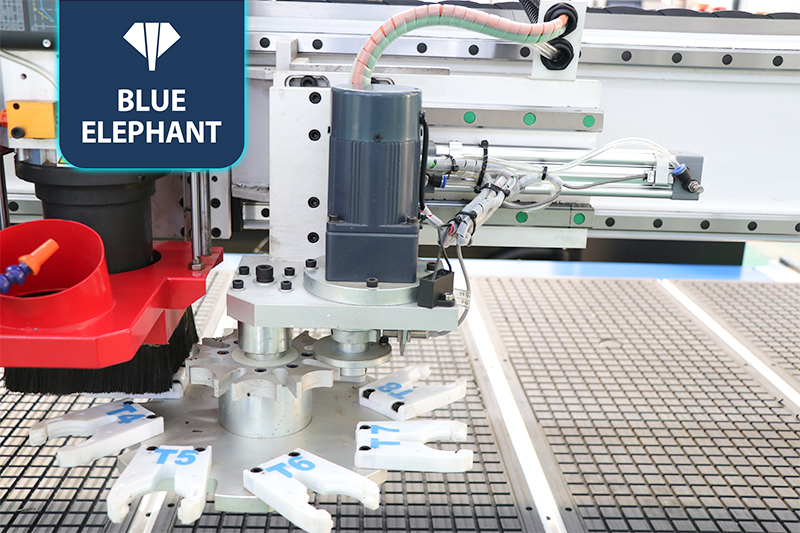

- Carousel tool changer is more faster to change tool automatically.
- New type thicker and bigger heavy duty welded steel frame and gantry can gurantee high safety and stability.
- Germany EOT-3 Oscillating Cutting Knife can be used to process soft materials such as cloth and leather.
Parameters
| Description | Parameter |
| Model | ELECNC-3015ATC-4A |
| Tool magazine | Carousel type auto tool changer with 8 tools storage |
| X,Y,Z Working Area | 3000x1500x200mm |
| Table Surface | Vacuum and T-slot working table, 6 zones |
| Gantry structure | Steel gantry |
| Structure | New type thicker and bigger heavy duty welded steel frame and gantry. |
| X, Y Structure | Sweden ABBA 25# Linear Square Rail; |
| Z Structure | Sweden ABBA 25# Linear Square Rail and TBI Ball Screw |
| Spindle | Rotary spindle, 9kw HSD spindle, Swing -90°to +90° degree, Germany EOT-3 Oscillating Cutting Knife |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850w Japan YASKAWA servo motors and drivers, Japan Shimpo reducer |
| Inverter | 11kw Delta inverter |
| Working Voltage | 220V,3phase,60HZ
(or customized) |
| Operating System | Taiwan SYNTEC control system |
| Computer Interface | USB |
| Machine color | White and blue (Can be customized) |
| Software | Artcam |
| Lubrication system | New type Automatic oil lubrication system |
| Control box | Syntec Control box |
| Vacuum pump | 7.5kw vacuum pump controlled by M code command |
Application
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
