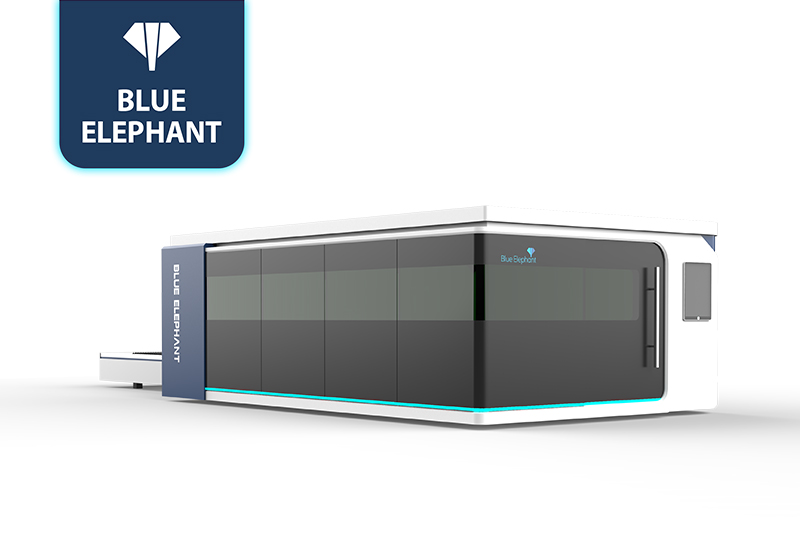

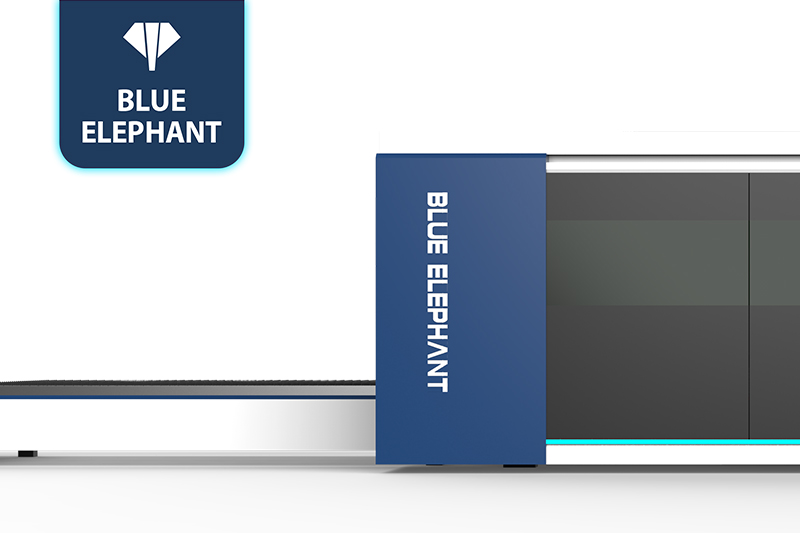

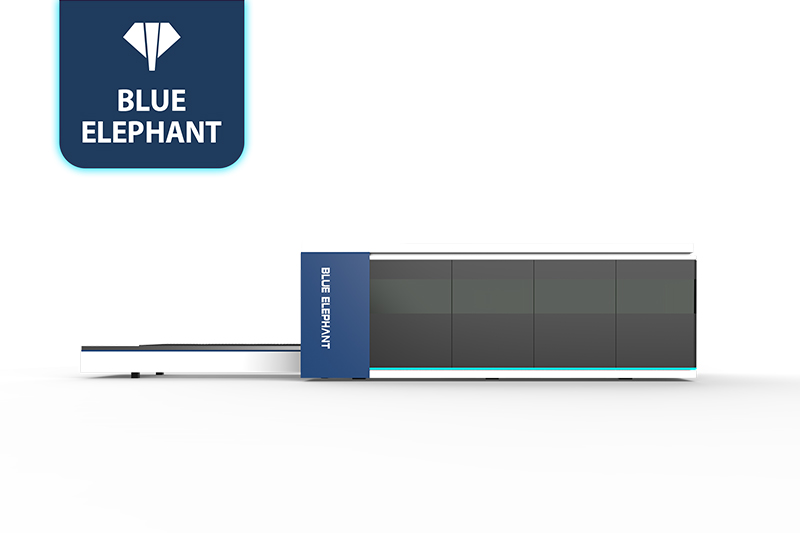

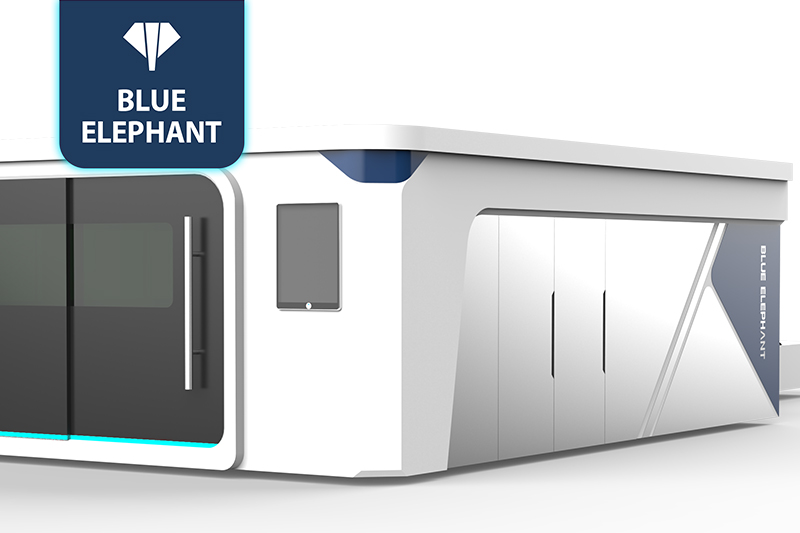

Fully Enclosed Metal Laser Cutter with Exchange Platform
☆It is a special fiber CNC laser machine designed with a cover and an exchange platform, which is more suitable for metal cutting applications within a demanding industrial production environment.
Laser CNC Machines Video
Features
- Exchanged working table improves production efficiency 2-3 times than the ordinary CO2 laser cutting machine.
- The photoelectric conversion rate is up to 25-30%.
- It has low maintenance, easy operation, and high professing effects.
The Tube Welded Bed
High strength, not easily deformed
Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.
More stable
We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Aviation Aluminum Gantry
High hardness
Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed
Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Raytools
Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;
The collimating mirror, focusing mirror and nozzle have a cooling structure.
Parameters
| Model | ELECNC-1530S | ELECNC-2040S | ELECNC-2560S |
| Working area (mm) | 1515*3030 | 2020*4040 | 2525*6050 |
| Max. acceleration | 2.0G | 2.0G | 2.0G |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. exchange time | 25S | 25S | 25S |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Servo motor and driver | YASKAWA/FUJI | YASKAWA/FUJI | YASKAWA/FUJI |
| Reducer | Shimpo | Shimpo | Shimpo |
| Relay | Schneider | Schneider | Schneider |
| Circuit breaker | Schneider | Schneider | Schneider |
Application
Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
