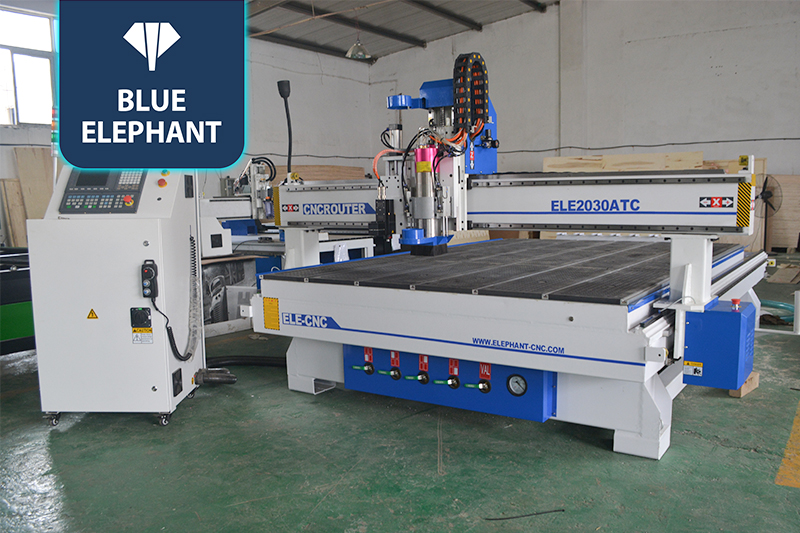

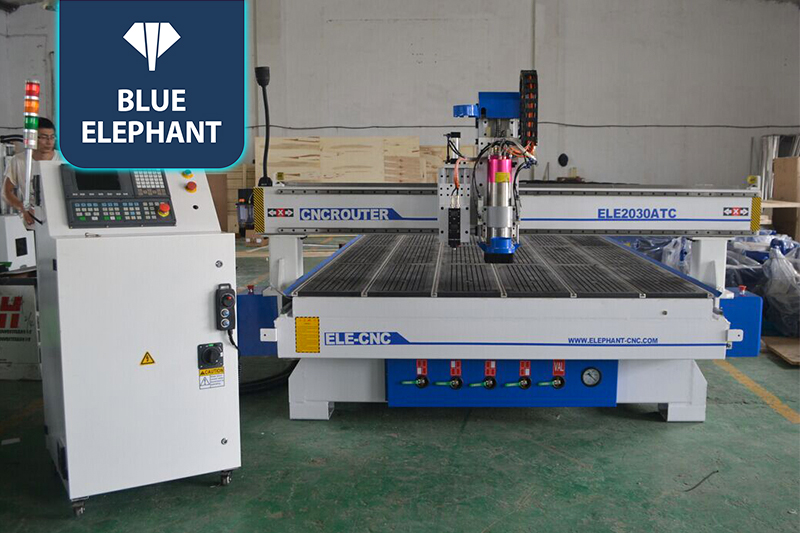

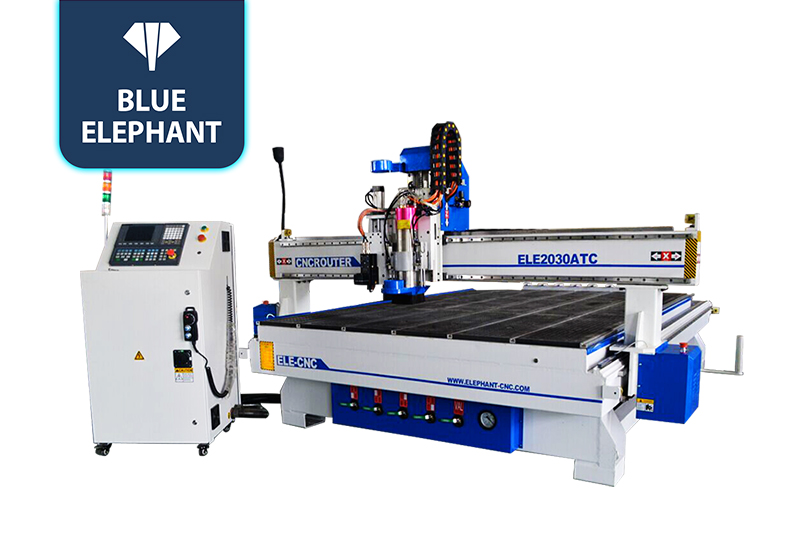

Affordable 5×10 Automatic Commercial CNC Digital Cutting Machine Price

☆This CNC oscillating knife cutting machine is is designed with a linear ATC CNC router. It has wide use of soft material cutting and carving. Moreover, it makes no smoke and heat during the processing.

Digital Cutting Machines Video

features

  • It is widely applied to cut MDF, hardwood, cotton material, rubber plate, etc.
  • The CNC knife cutting is a very safe cutting method.
  • All the machine components can be customized according to your needs.

Parameters

Descriptions Parameters
Modle ELE2030ATC-EOT-3
Working area 2000*3000*200mm (can be customized)
Working Voltage 220V, 3PHASE, 50HZ (can be customized)
Control System Taiwan SYNTEC 6MB control system
Control box 1.4m high control box

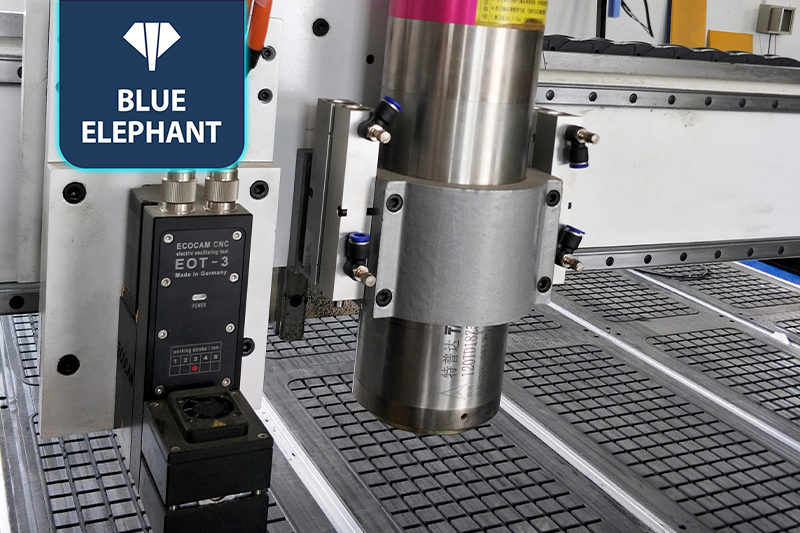

Oscillating knife Germany ECOCAM EOT-3
Spindle 5.5kw water cooling ATC spindle
Spindle speed 0-24000RPM/MIN
Tool magazine Linear type + 8pcs ISO30 tool holders (Carousel type for optional)
Motor and Driver 750w Leadshine hybrid servo motors and drivers
Inverter 5.5kw Fuling inverter
Structure New type thicker and bigger heavy duty welded frame and gantry
Table surface T-slot and Vacuum Working Table
Gantry structure Gantry Moving
Lubrication system Automatic lubrication system
Calibration Automatic tool sensor calibration
Mist cooling sprayer Automatic oil mist cooling sprayer
Transmission X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing

Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25# Linear Bearing & Taiwan TBI Ball Screw

Vacuum pump 7.5kw water circulation vacuum pump (220V, 3PHASE, 50HZ)
Dust Collector 1.5kw new type double pockets dust collector (220V, 3PHASE, 50HZ)
Command language G Code
Color According to your reference
Applications Leather, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber, Corrugated box, Foam, Leather strip.

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
