5×10 4 Axis ATC CNC Router in Italy, Mongolia for Cabinet Making

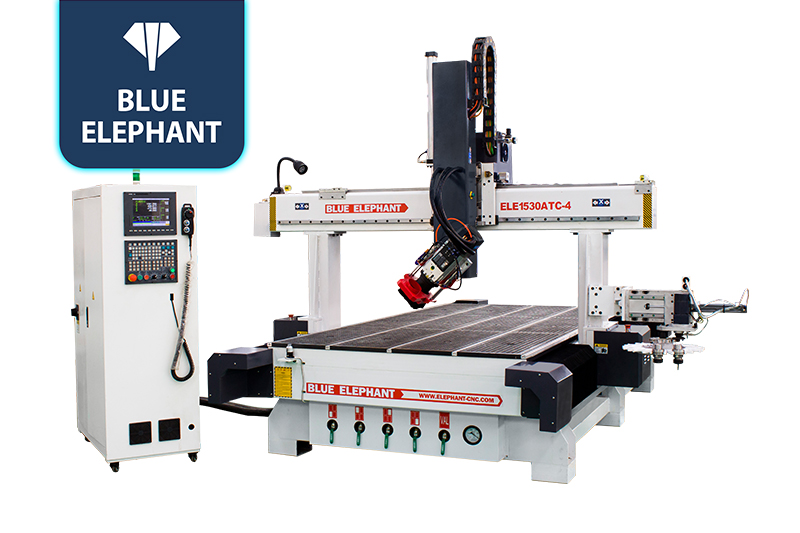

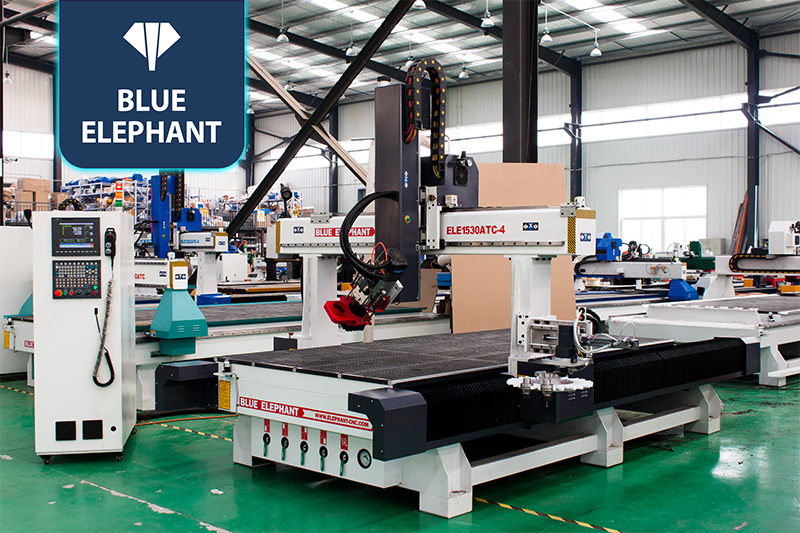

☆This 4 axis CNC woodworking machine has an effective working size of 1500x3000x600mm, suitable for cutting large boards and carving tall workpieces. It can also exchange among 12 tools automatically to save labor and improve work efficiency.
4 Axis CNC Router Machines Video
Features

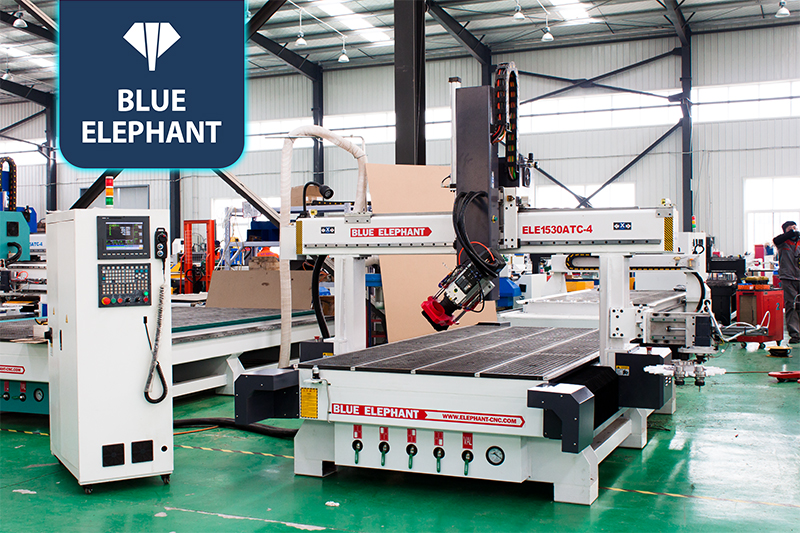

- The CNC machine can process tall and thick 3D workpieces due to the 4 axis rotary spindle and high Z-axis travel.

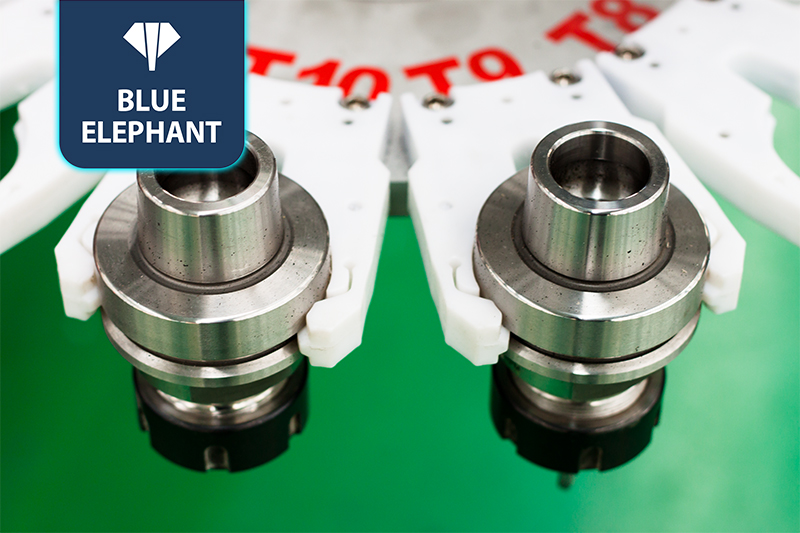

- It is equipped with a carousel tool magazine carrying 12 tools to realize complex and delicate designs. And linear tool magazine can also be selected.
- The guide rails and racks along the Y axis are protected by a dust cover to prevent wood chips from accumulating in the rails.
Parameters
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 500mm, 400mm, etc |
| Spindle type | 9kw ATC air cooling spindle, HSK F63, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | HSK F63, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X3, Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
4 Axis CNC router has a swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction, and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals, and composites.
