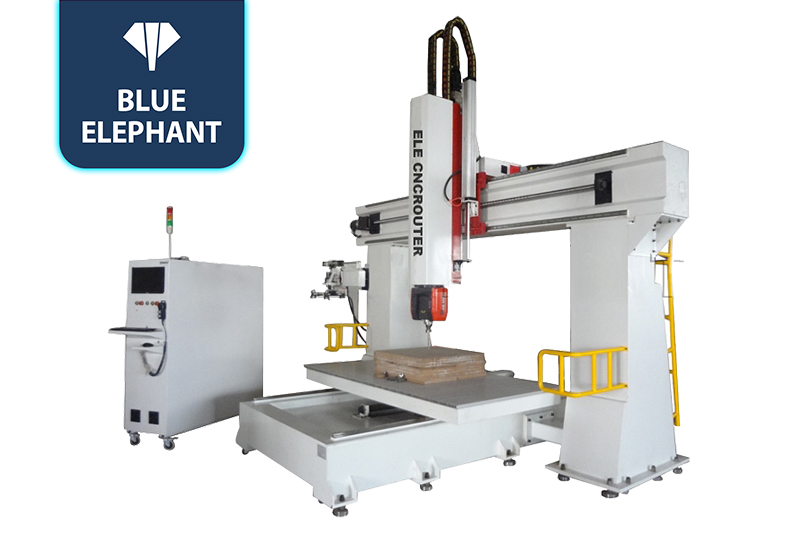

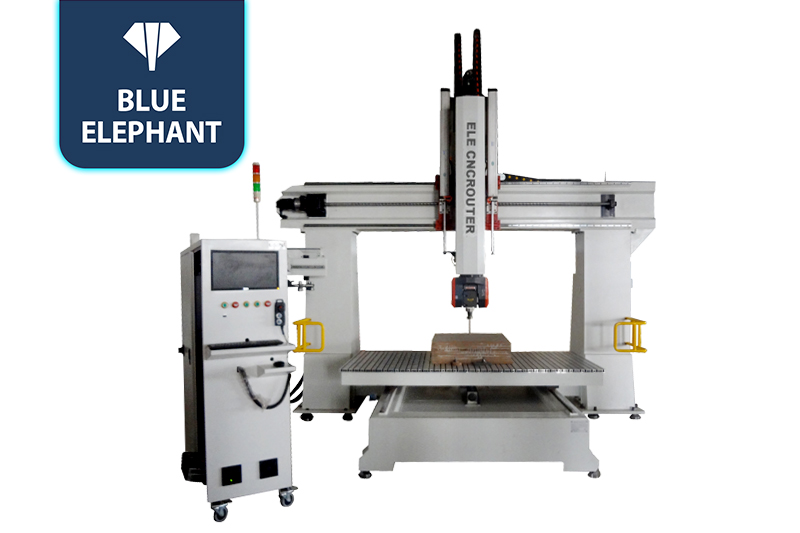

Best 1224 5 Axis CNC Machine in America, Dubai at Good Price
☆It is one of the most typical 5 axis CNC router. Diversified functions will guarantee the processing speed, idling speed, cutting speed, and greatly improves the quality of processed products and processing efficiency. And it also supports 5-8 axes linkage.
CNC Router Machines Video
FEATURES
- With European OSAI control system, it is powerful and easy to operate.
- Z axis travel can be increased to 1.5 meters, which is suitable for large-scale workpieces.
- With cross-border protection, it is more intelligent.
Parameters
| Model | ELECNC1224 5 axis |
| X,Y axis travel | 1200x2400mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 10kw 5 axis Demas ATC spindle, HSK F63, ER32 |
| Inverter type | 15KW Delta inverter series B |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | HSK F63,ER32 collet: φ4, φ6, 1/8, 1/2 |

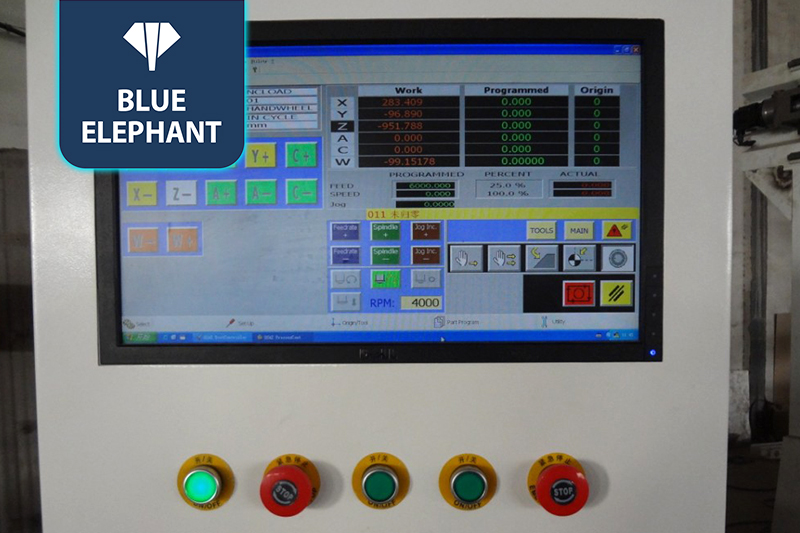

| Control system | Syntec 610-E5 5 axis control system |

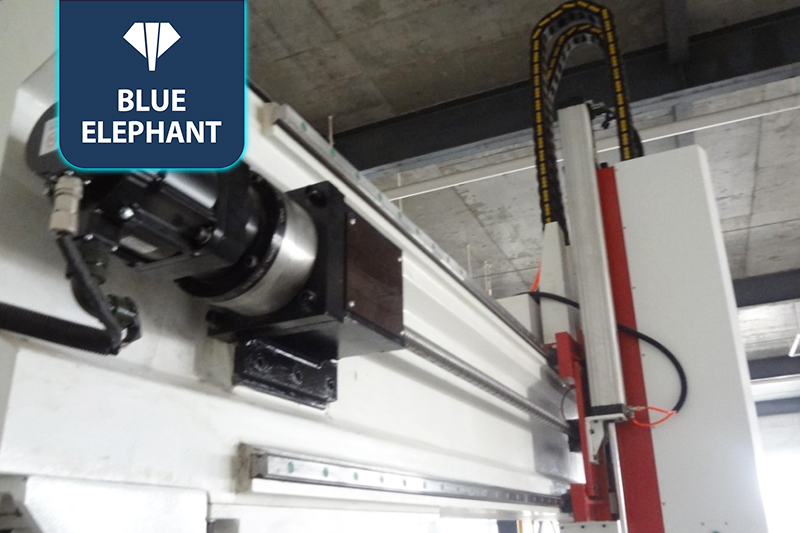

| Driving system | 1.3kw Japan Yaskawa servo motors and drivers Option: 1.5kw Leadshine servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table with PVC protection |
| Positioning cylinder | 5 pieces(X2,Y3) |
| Linear guide | Taiwan linear guide, 35# on Y axis, 30# on X ans Z axis |
| Transmission | Taiwan TBI ball screw 3510 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | UG, Powermill, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
