Best Affordable 4×8 Rotary Axis CNC Router for Sale in Germany for Woodworking
☆This is the most popular 4×8 CNC router machine with a rotary device designed for table legs, columns, handrails, statues, and other cylindrical parts. It can process a variety of materials, including wood, acrylic, PVC, aluminum, etc. with high accuracy and precision.
Rotary Axis CNC Router Machines Video
- It adopts a 4.5kW air-cooled spindle, which can complete most cutting and engraving work in the furniture and advertising industry.
- The famous-brand ball screws, racks, and guide rails have a large bearing capacity, stable operation, high precision, and long service life.

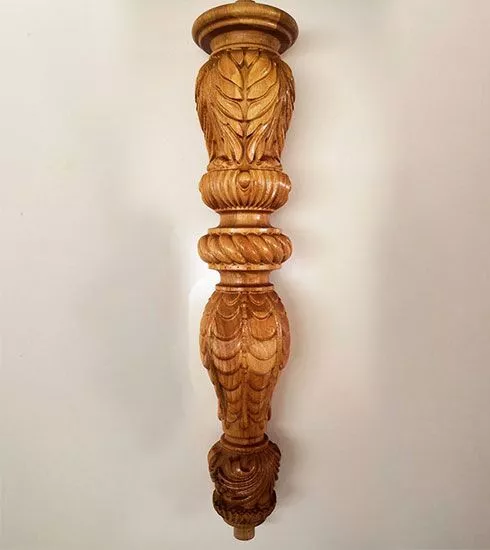

- The rotary axis is installed beside the worktable and used to carve and engrave cylindrical parts, such as handrails, balusters, furniture legs, building columns, posts, etc.
Parameters
| Model | ELECNC1325-R |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 1600*3000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 4.5kw air cooling spindle, ER25 |
| Inverter type | 5.5kw |
| Rotary device | 200mm diameter rotary device |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP B18 option: Mach3; NC Studio |
| Driving system | Stepper FL118 motor and YAKO2811 drivers. option:750w Leadshine hybrid servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Work table | Vacuum& T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

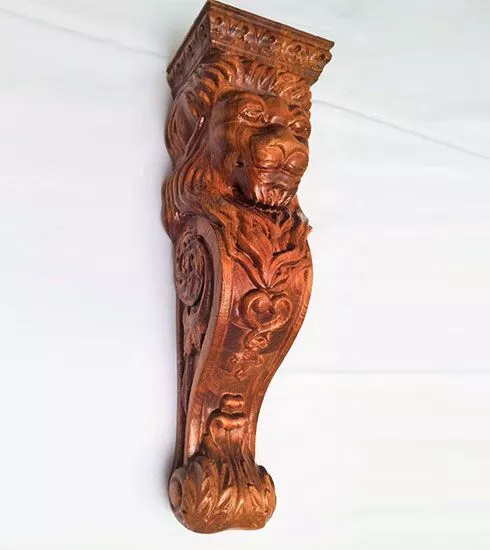

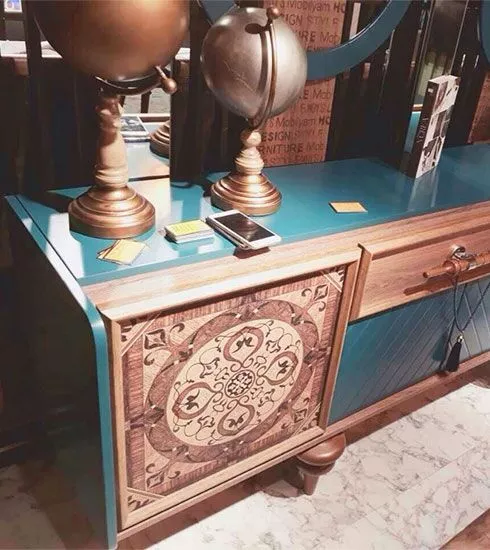

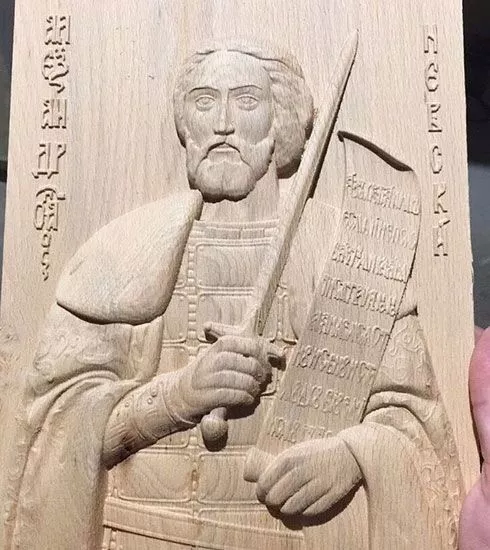

4 Axis CNC Router is suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising, and other fields.
