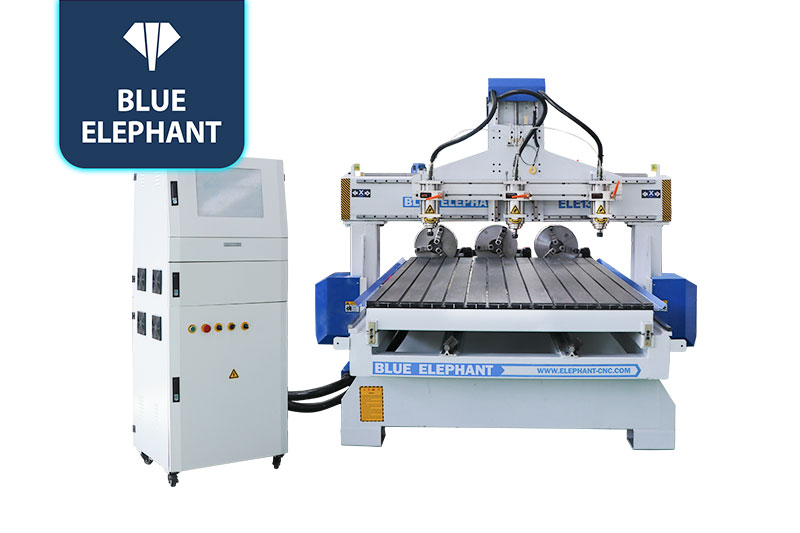

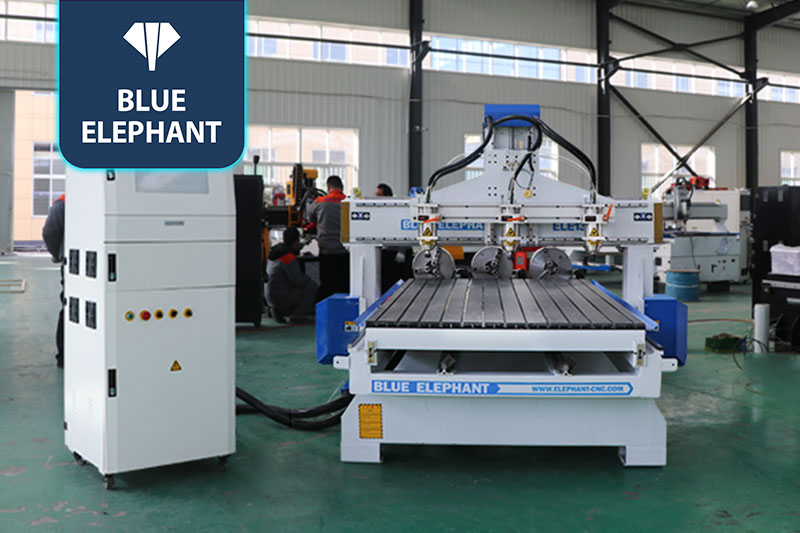

4’×8′ Multi Head CNC Router with Rotary Device for Sale
☆This is a high-end wood CNC router with multi spindles and rotary devices. Therefore, it can cut and engrave many different and complex products at the same time.
CNC Router Machines Video
features
- The T-slot working table can be disassembled, which is more convenient.

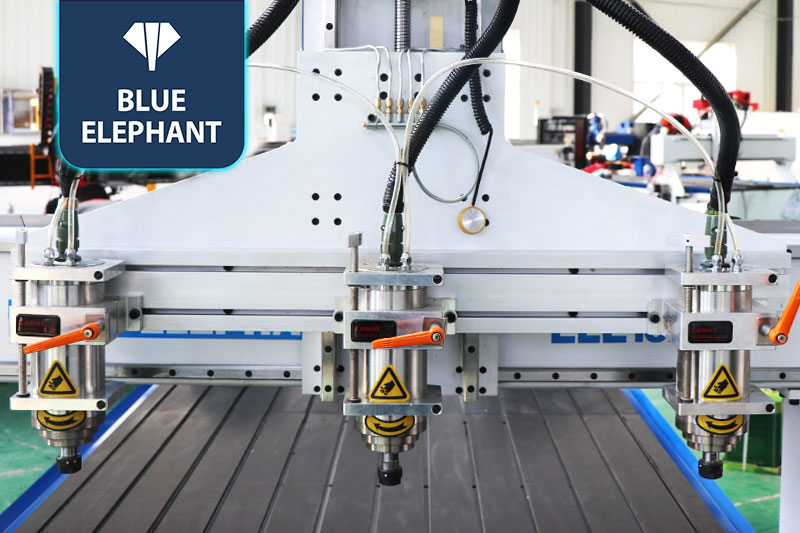

- With three 3kw water cooling spindles, it can process mass production at the same time.

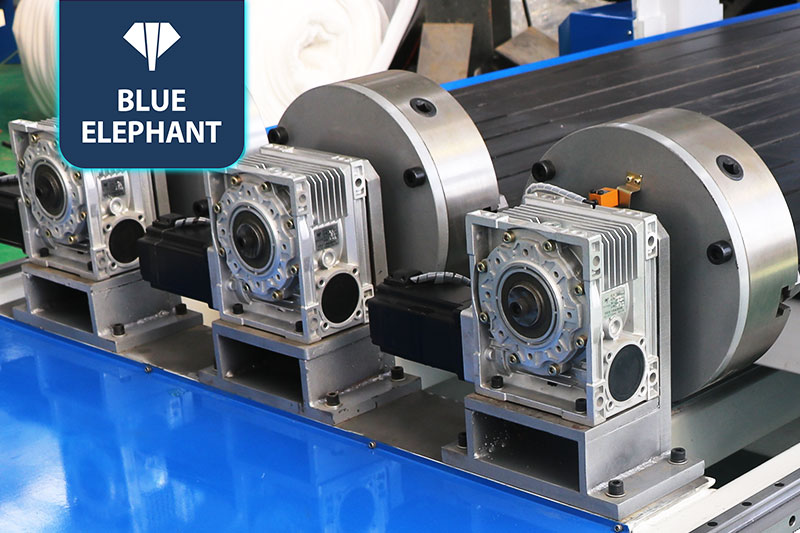

- Added with 3 rotary devices, it can help you process cylindrical products like chair or table legs.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300*2500*350mm |
| Table Surface | T-slot & vacuum work table |
| Spindle | 3*3kw Changsheng water cooling spindle |
| Z Structure | Taiwan Tbi Ball Screw |
| Motor | Mixed Servo Motor |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Speed | 0-18000RPM |
| Lubrication system | auto |
| Inverter | 3.7kw Fuling Inverter |
| Command Language | G Code |
| Control System | PM95A-3L |
| Computer Interface | USB |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical.
Production Facility
Quality Control & Testing
