Hot Sale 4×8 1325 CNC Rotuer with 4th Axis Rotary Device at Discount

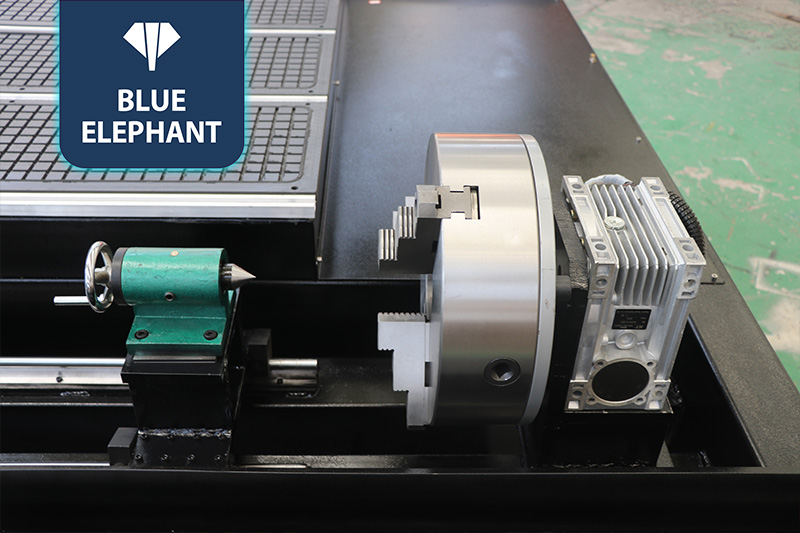

☆This 4×8 CNC router machine is provided with a rotary device beside the worktable for processing cylindrical parts. For example, table legs, chair legs, handrails, balusters, columns, etc. All parts adopt high-quality products to ensure smooth operation and long service life.
Rotary Axis CNC Router Machines Video
Features
- It adds a rotary device to a common 3 axis 1325 CNC router to realize the processing of wood sticks, rods, rubber rods, etc.
- The vacuum worktable has a strong adsorption ability to fix the boards firmly on the table during work, avoiding sliding or moving.
- The 6kw air-cooled spindle provides powerful cutting and engraving force and can complete multiple tasks with fast speed and excellent precision.
Parameters
| Serial Number | S20190928S |
| Model | ELECNC-4A |
| Working area | 1300*2500*300 mm |
| Spindle | 6KW HQD air cooling spindle |
| Inverter | 7.5kw Fuling inverter |
| Control system | Mach3 for 4 axis control system, with the wireless |
| Motor and driver | FL118 stepper motor with 860H stepper driver |
| Working Table | T-slot &vacuum working table |
| Vacuum pump | 5KW double stages vacuum pump |
| X,Y,Z Rail | PMI #20 linear square guide way for X,Y,Z axis |
| Dust collector | 1.5KW newest dust collector |
| Software Compatibility | Artcam Software |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
