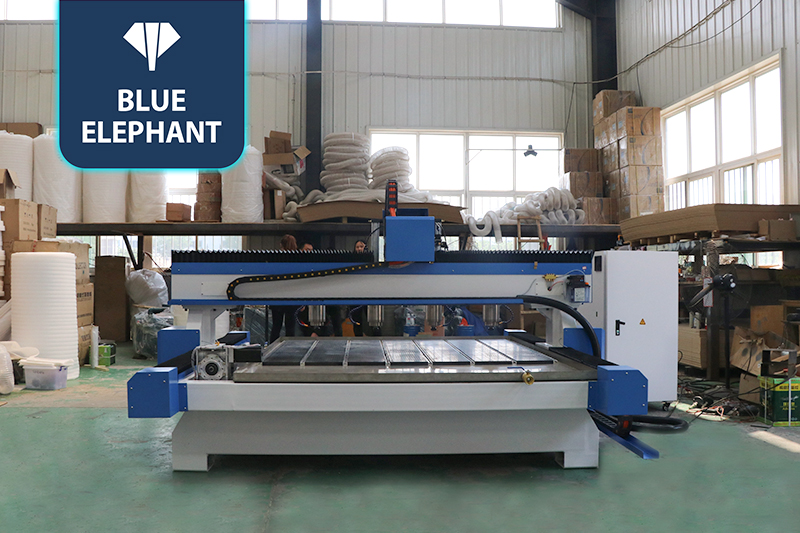

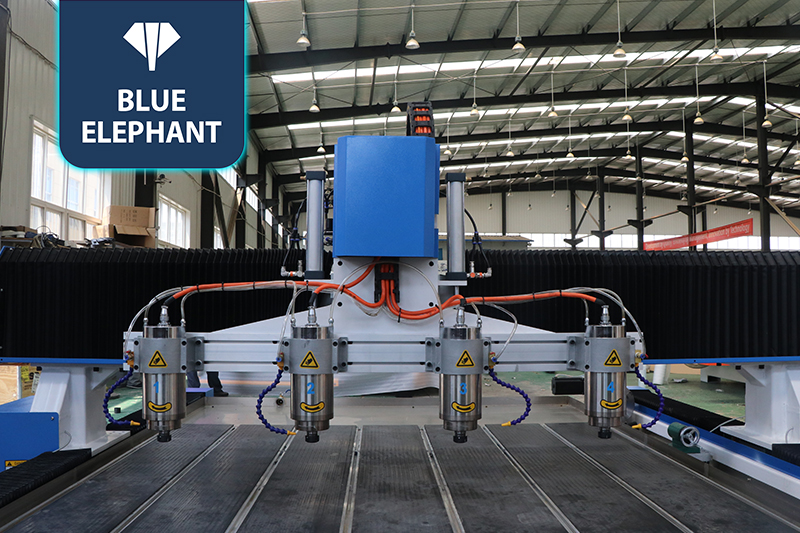

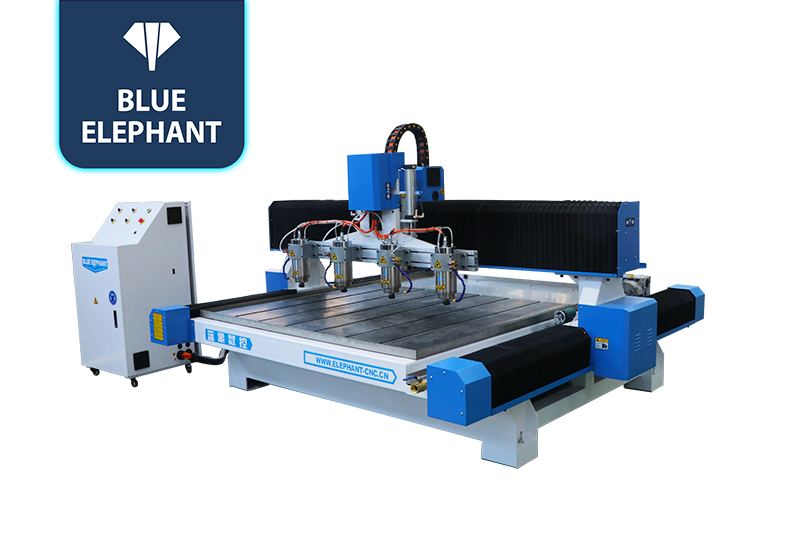

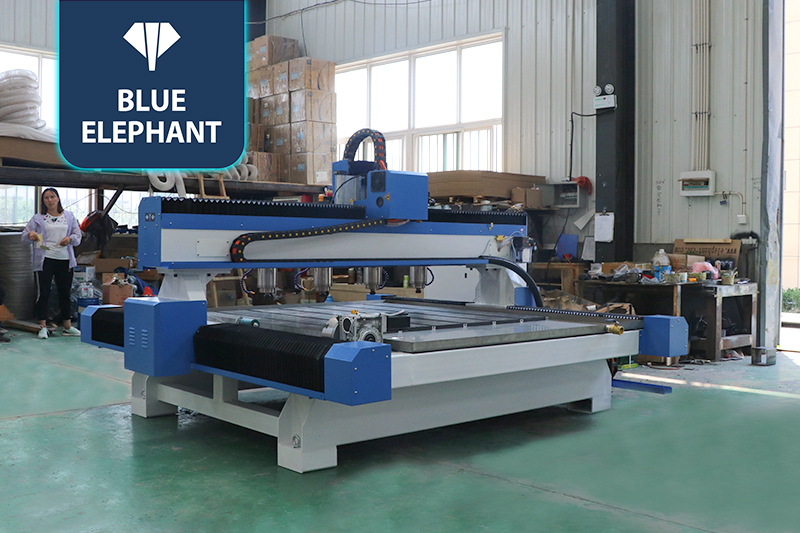

4-Spindle CNC Stone Engraving Machine for Price
☆This multi-spindle stone CNC machine has a variety of machining functions. For instance, it can cut and engrave a variety of work pieces at the same time, which greatly improves the production efficiency. It is very suitable for mass production processing with low budget.
Parameters
| Model | ELECNC1815-4S Stone CNC Router |
| X,Y axis travel | 1800x1500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw water cooling spindle, 24000RPM 4.5kw/ 5.5kw/ 6kw for optional |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 controller |
| Driving system | Stepper motors and drivers |
| Machine structure | Professional stone cnc bed, with heavy duty body more thicker and stronger |
| Work table | slot working table, with steel water sink; Stainless steel sink for optional |
| Linear guide | Taiwan linear guide 20# |
| Transmission | X,Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Dust cover | Dust covers for X, Y axis, protect the rails |
| Cooling system | Water cooling |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.
