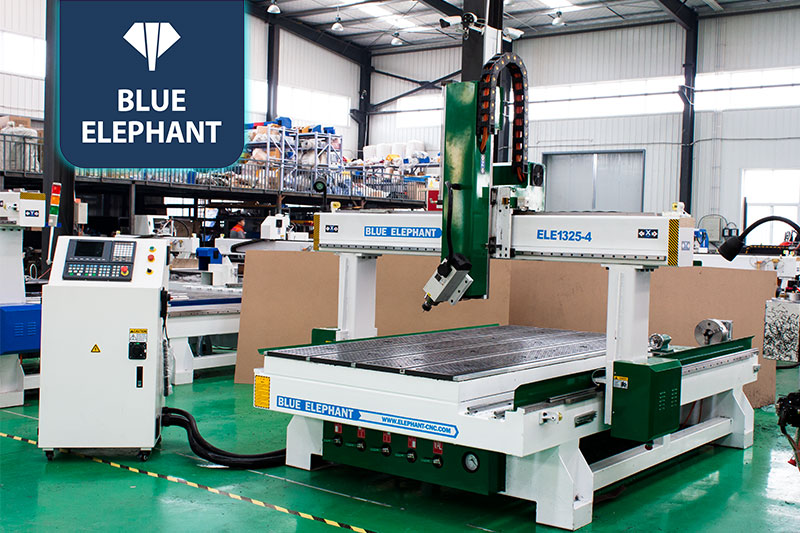

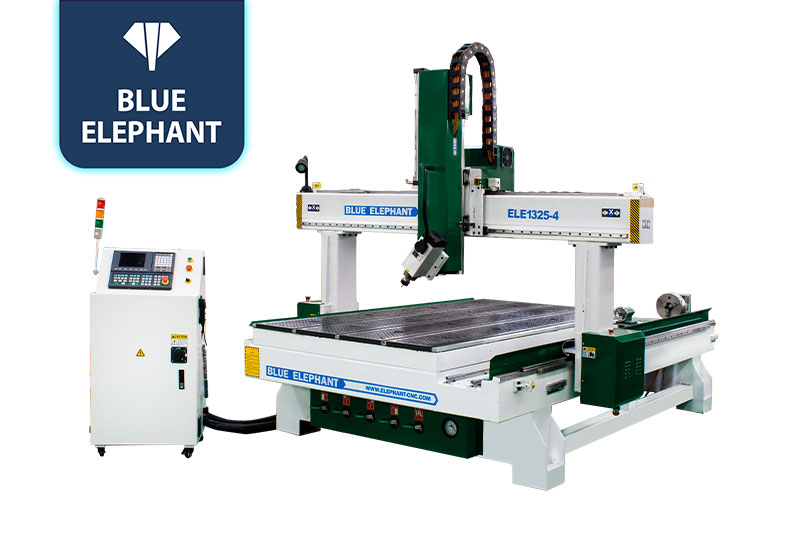

4 Axis CNC Wood Machine with Rotary Device for Purchase to New York, USA
☆This 4 axis CNC wood router is specially designed for processing various three-dimensional workpieces. The manual tool changing method saves cost than the ATC model but can also complete a variety of complex processing by changing tools automatically.
Rotary Axis CNC Router Machines Video
- The rotary spindle, rotary device, and high Z-axis travel enable this CNC router machine to engrave and carve thick and tall 3D workpieces.
- It adopts the SYNTEC control system, which is easy to learn and operate.
- All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.
Parameters
| Descriptions | Parameters |
| Model | ELE1325-4 |
| Working area | 1300*2500*400mm |
| Control system | Taiwan SYNTEC6MB Controller |
| Working Voltage | 380V or 220V |

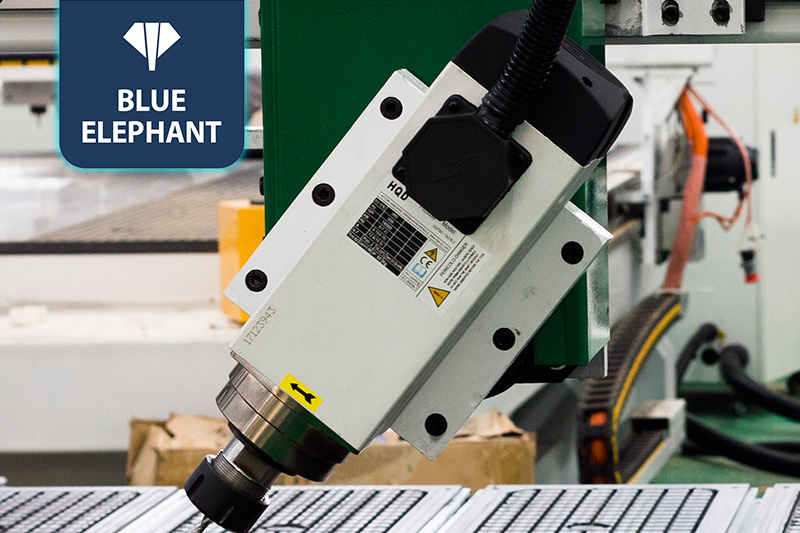

| Spindle | 6kw HQD air cooling spindle, spindle rotation in 180 degrees, 18000RPM |
| Spindle speed | 0-18000rpm |
| Inverter | 7.5kw Fuling inverter |
| Motor and Driver | 750w Japan YASKAWA servo motor and driver |
| Table surface | T-slot and vacuum working table |
| Structure | Heavy Duty 8mm Steel machine bed; 10mm Moving Steel Gantry |
| Lubrication system | Manual lubrication system |
| Transmission | X,Y axis: rack and pinion drive
Z axis: Taiwan TBI ball screw X,Y axis: Sweden ABBA square guide rails with 20mm |
| Vacuum pump | 5.5kw Votex vacuum pump, |
| Control box | independent box |
| Software | UG |

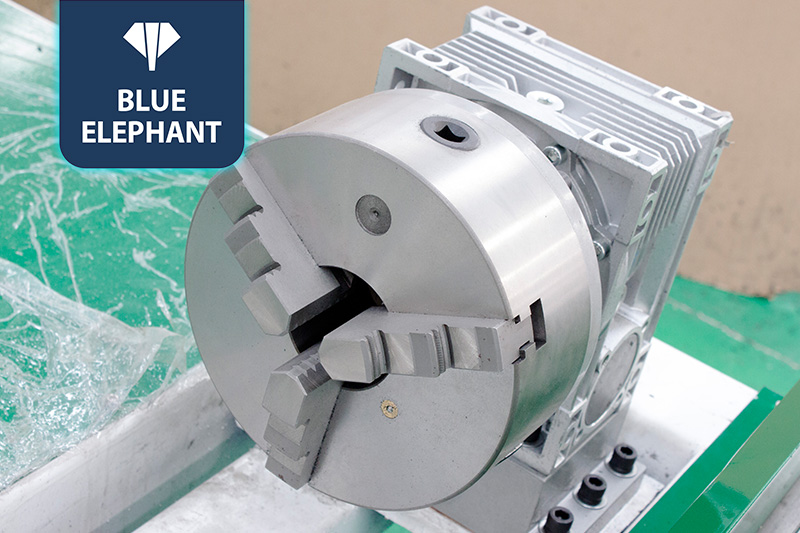

| Rotary | 200mm diameter and 2000mm length of rotary device on Y axis |
Application

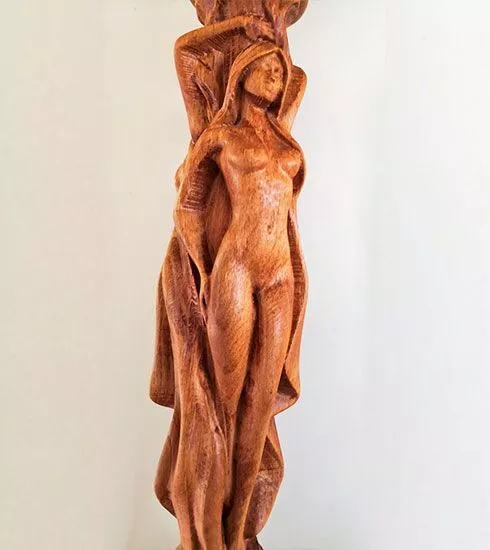

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
