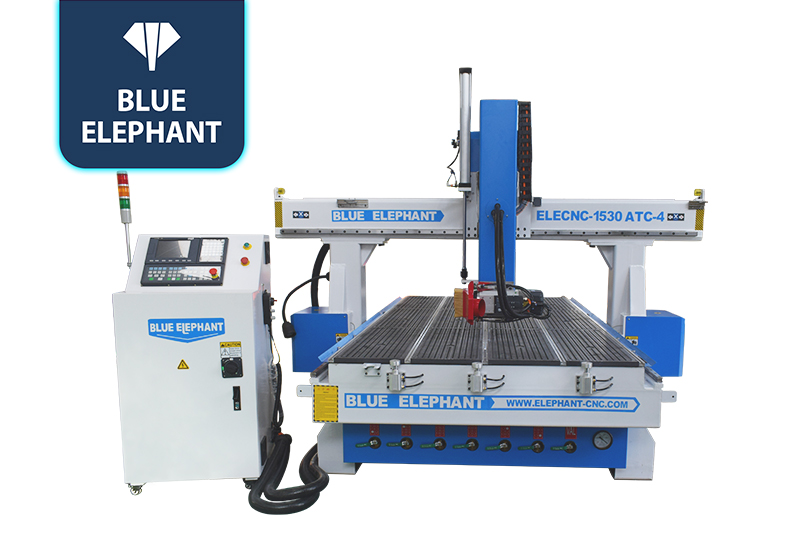

Best Selling 4 Axis 5×10 ATC CNC Wood Machine For Sale

☆This is one of the best-selling 4-axis ATC CNC machines with a working basic size of 1500×3000 mm. It can be customized to meet different needs and can efficiently perform flat and 3D machining in a single operation. The vacuum table holds the workpiece firmly on the table during operation with high adsorption capacity.

ATC CNC Router Machines Video

Features

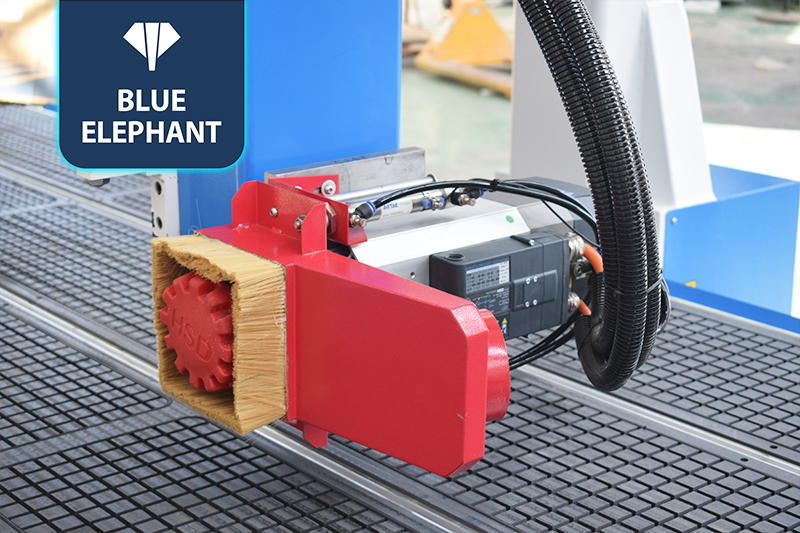

  • 4 axis spindle can swing 180 degrees in total from the left to the right for the purpose of process 3D workpieces.
  • 9kW air-cooled spindle, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.

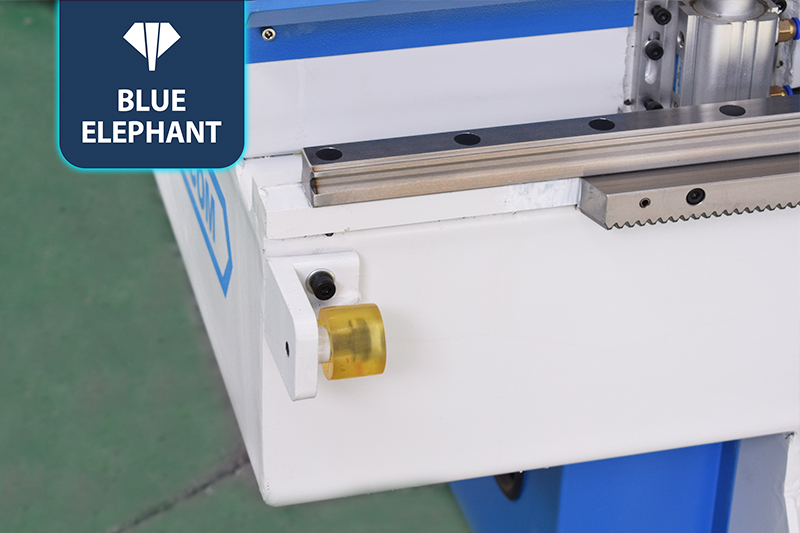

  • It adopts HIWIN linear square guide rails which have a large bearing capacity, stable operation, high precision, and long service life.

Parameters

Model ELECNC1530ATC-4A
X,Y axis travel 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 400mm, option: 500mm, 600mm, 700mm, etc
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
The 4th axis Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness
can swing from -90 degrees to +90 degrees

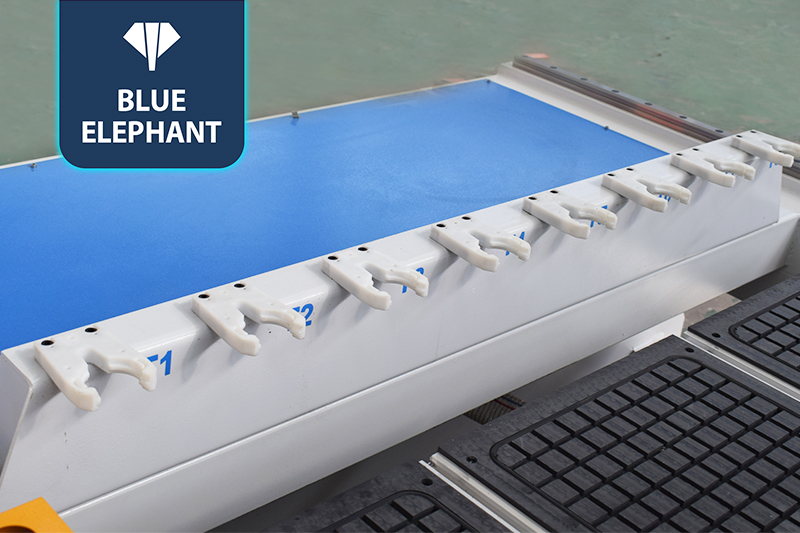

Tool magazine linear type auto tool changer
Option: carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC / LNC controller
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy-duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2, Y3)
Linear guide Taiwan linear guide
Transmission X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Powermill, UG, Alphacam, Fusion 360, etc
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
