Top Ranked 4 Axis ATC CNC Machine with Rotary Device in Santos, Los Angeles Port

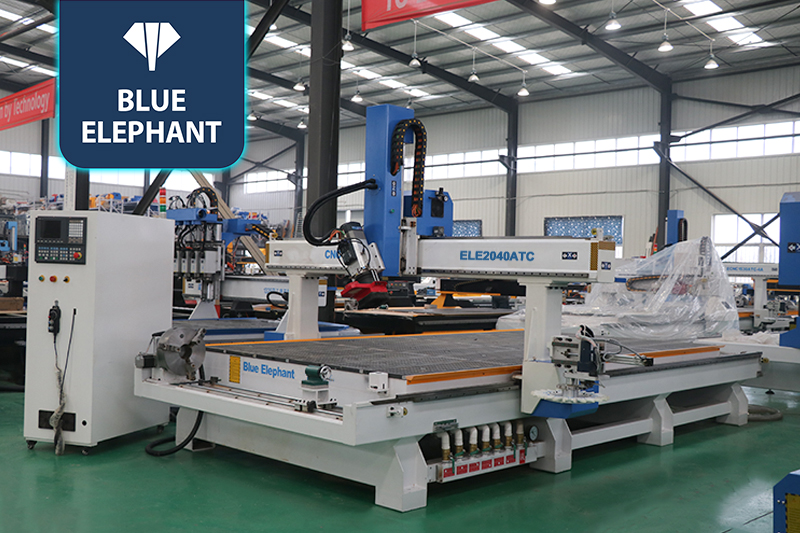

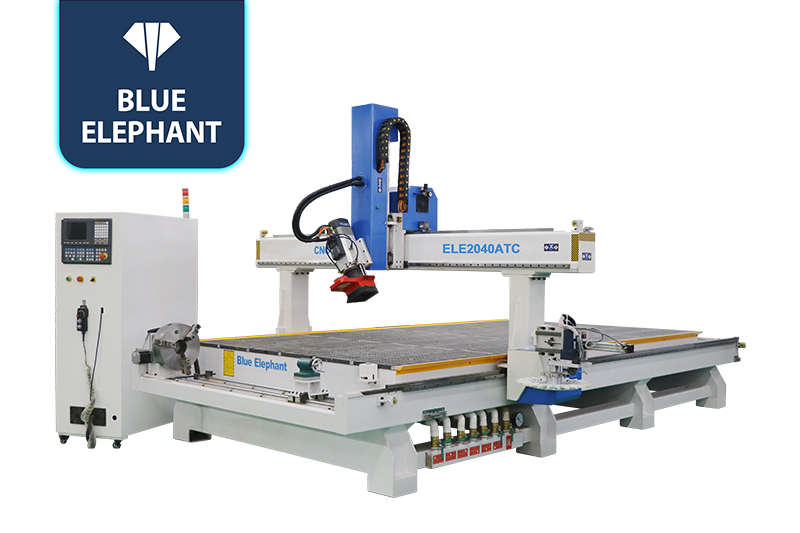

☆This is the best CNC router machine with the automatic tool changing function and rotary spindle for large panel processing. Besides, it is also provided with a rotary device to realize 3D processing. So this machine has multiple functions and can complete a variety of complex and delicate designs.
4 Axis CNC Router Machines Video
Features
- The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.

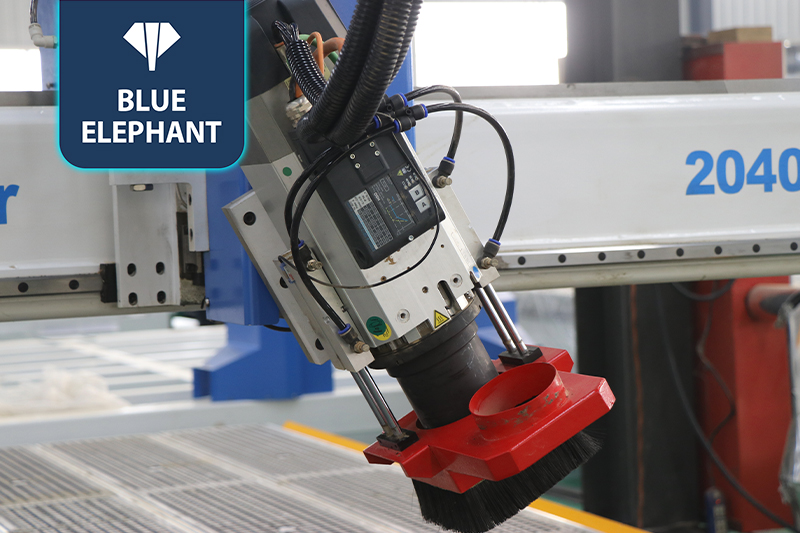

- The 4 axis CNC router with a swing spindle can process the top, left, and right sides of a workpiece in one operation, reducing clamping times.
- Its rotary device is installed on the X-axis to save costs because the processing length of cylindrical parts is less than 2000mm.
Parameters
| Model | ATC2040-4A |
| X,Y axis travel | 2000x4000mm, option: 1300×2500, 1500*3000mm; 2000*3000mm; 200*6000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | Italy 9kw HSD air cooling spindle, ER32 |
| Inverter type | 11kw Delta |
| Drilling bank | Optional |

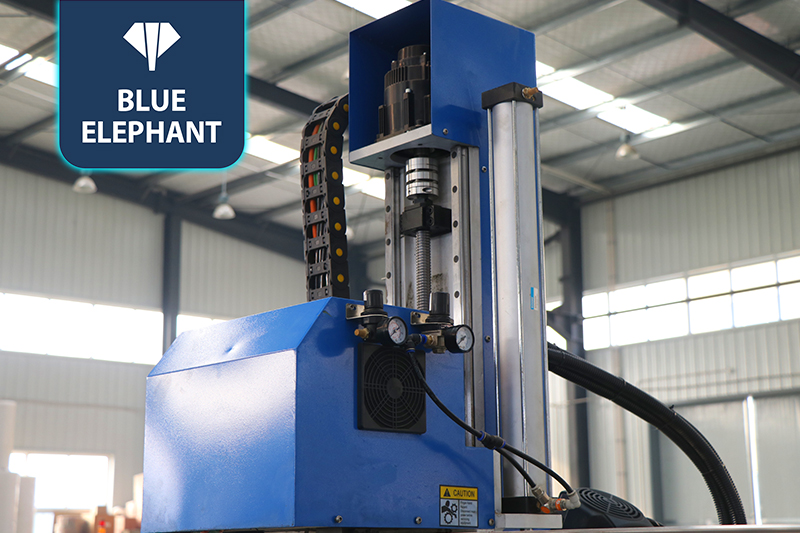

| Tool magazine | 8 carousel type tool magazine Option: linear type auto tool changer |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller, option: Taiwan LNC |
| Driving system | 850w Japan Yaskawa AC servo driver and 750w AC servo motor,5 sets. option: 1kw Taiwan SYNTEC servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 65m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working Accuracy | ±0.05mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

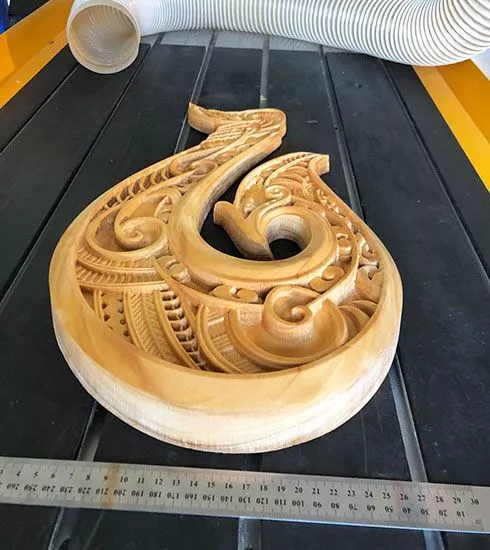

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
